WTC Medar Resistance Weld Control Board 917-0125N22

The WTC Medar Resistance Weld Control Board, model 917-0125N22, is a high-performance industrial automation component designed for precise control in resistance welding applications. This robust PCB features advanced integrated circuits and connectors, ensuring reliable operation in demanding manufacturing environments.

Key Features:

\n
• High-speed processing capabilities for real-time welding control
\n
• Multiple analog input channels for accurate monitoring of welding parameters
\n
• Two firing cable connections for synchronized electrode activation
\n
• Durable construction with heat-resistant components
\
• Comprehensive protection circuitry against voltage spikes and electrical interference
\n
• Compatible with various welding machine configurations
\n

Specifications:

\n

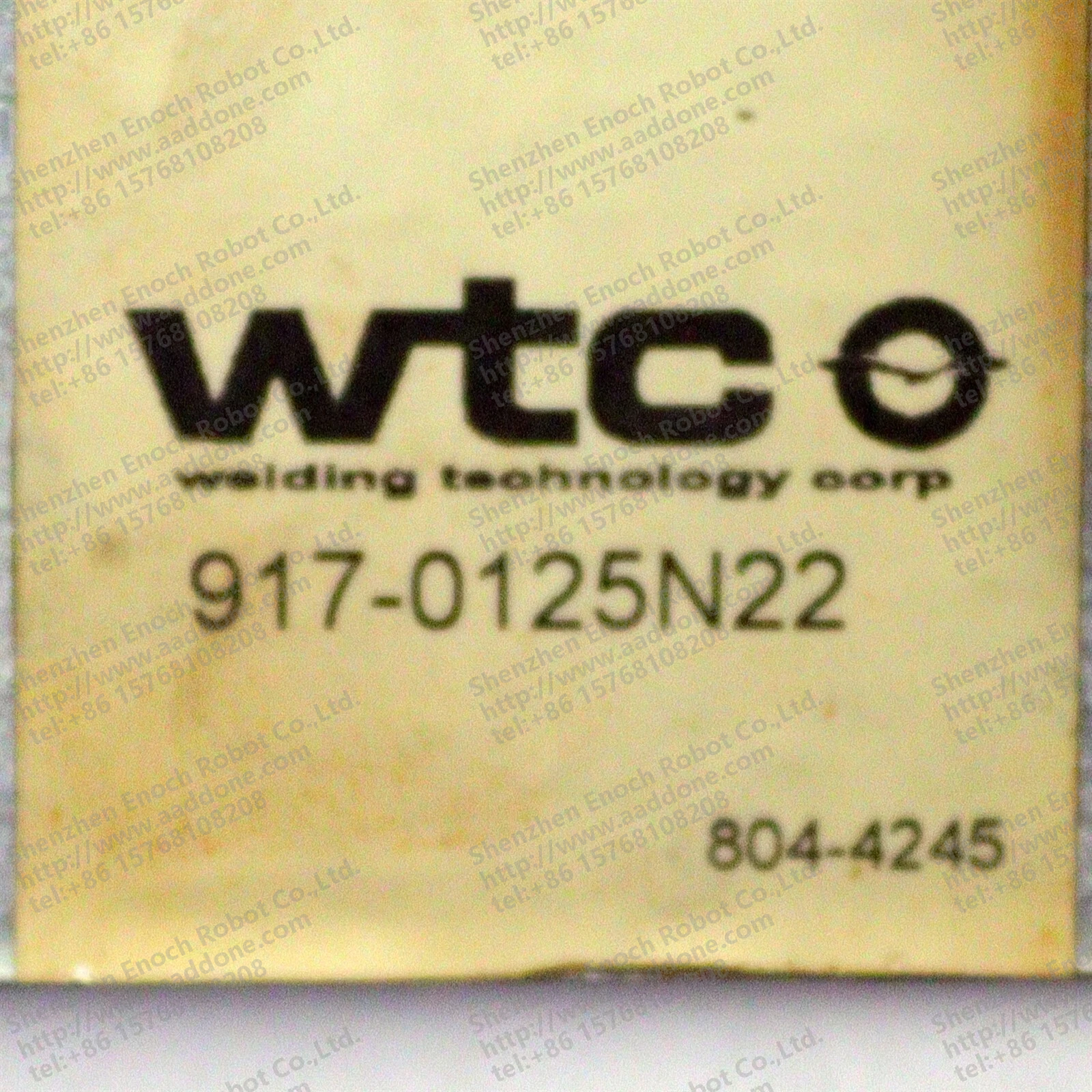

• Model Number: 917-0125N22
\n
• Brand: WTC (Welding Technology Corp.)
\n
• Form Factor: Standard Industrial PC Card Size
\n
• Input Voltage Range: 10-30V DC
\n
• Operating Temperature: -20°C to +70°C
\
• Connectors: 2x Firing Cable, Multiple Analog Inputs, Power Connector
\n
• Dimensions: 8.5\" x 3.5\" (Standard PC Card Size)
\n

Applications:

\n
• Automotive manufacturing assembly lines
\n
• Appliance production facilities
\n
• Heavy equipment fabrication plants
\n
• Electronics manufacturing processes
\n
• General industrial welding operations
\n

Benefits:

\n
• Enhanced welding quality through precise parameter control
\n
• Increased production efficiency with faster cycle times
\n
• Reduced maintenance costs due to durable design
\n
• Improved safety with comprehensive protection features
\n
• Easy integration into existing welding systems
\n
• Long-term reliability for continuous industrial use
