ALLEN BRADLEY POWERFLEX 40 交流电驱动 22B-D6P0N104A

The Allen-Bradley PowerFlex 40, model 22B-D6P0N104/A, is a high-performance AC drive designed for industrial automation and motion control applications. This robust unit offers precise motor control and energy efficiency, making it ideal for a wide range of industrial processes.

Product Features:

• Advanced Control Panel: The front panel features a clear LCD display with intuitive navigation buttons, allowing for easy programming and monitoring of drive parameters such as voltage, current, and frequency.
• Motor Rating: Supports a motor rating of 2.2kW (3.0HP), ensuring compatibility with various industrial motors.
• Input Specifications: Designed for 3-phase input voltage ranging from 380V to 480V at 48-63Hz, providing flexibility in different industrial settings.
• Output Specifications: Offers a 3-phase output with a frequency range of 0-400Hz, enabling precise control over motor speed and torque.
• Durable Construction: Built with a rugged IP20/UL open-type design, the unit is protected against dust and accidental contact, ensuring reliable operation in demanding environments.
• Compliance and Safety: Meets UL and CE standards, guaranteeing safety and compliance with international regulations.

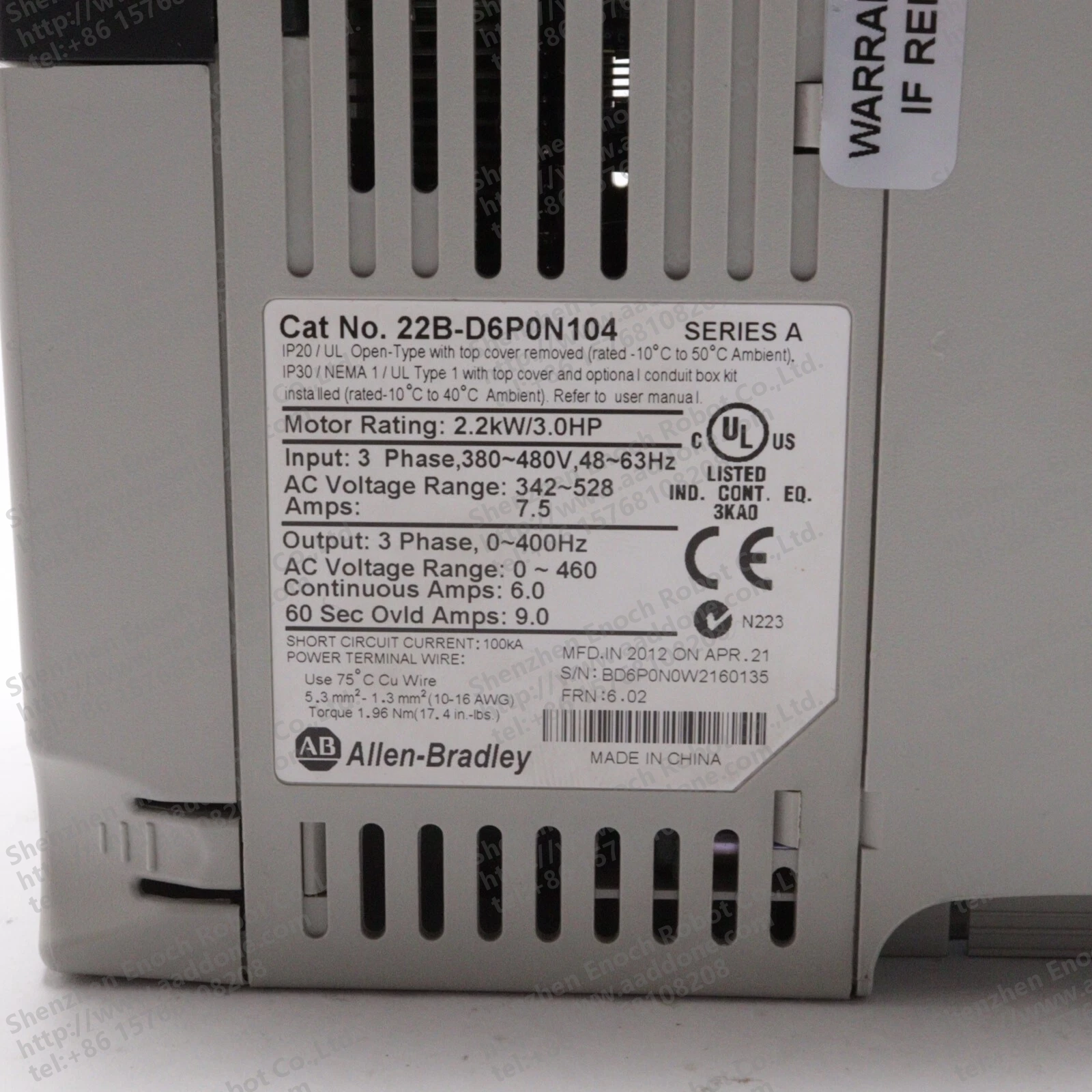

Specifications:

• Model Number: 22B-D6P0N104/A
• Series: A
• Motor Rating: 2.2kW / 3.0HP
• Input Voltage: 3 Phase, 380~480V, 48~63Hz
• AC Voltage Range: 342~528V
• Continuous Amps: 6.0A
• 60 Sec Ovld Amps: 9.0A
• Manufactured Date: April 21, 2012
• Country of Origin: Made in China

Applications:

The Allen-Bradley PowerFlex 40 is widely used in various industrial applications, including conveyor systems, pumps, fans, and other machinery requiring precise speed and torque control. Its versatile design makes it suitable for both new installations and retrofit projects.

Benefits:

• Energy Efficiency: Optimizes motor performance, reducing energy consumption and operational costs.
• Reliability: Built to withstand harsh industrial conditions, ensuring long-term reliability and minimal downtime.
• User-Friendly Interface: Simplifies setup and operation, reducing the need for extensive training.
• Cost-Effective: Provides a cost-effective solution for industrial automation needs without compromising on performance.
