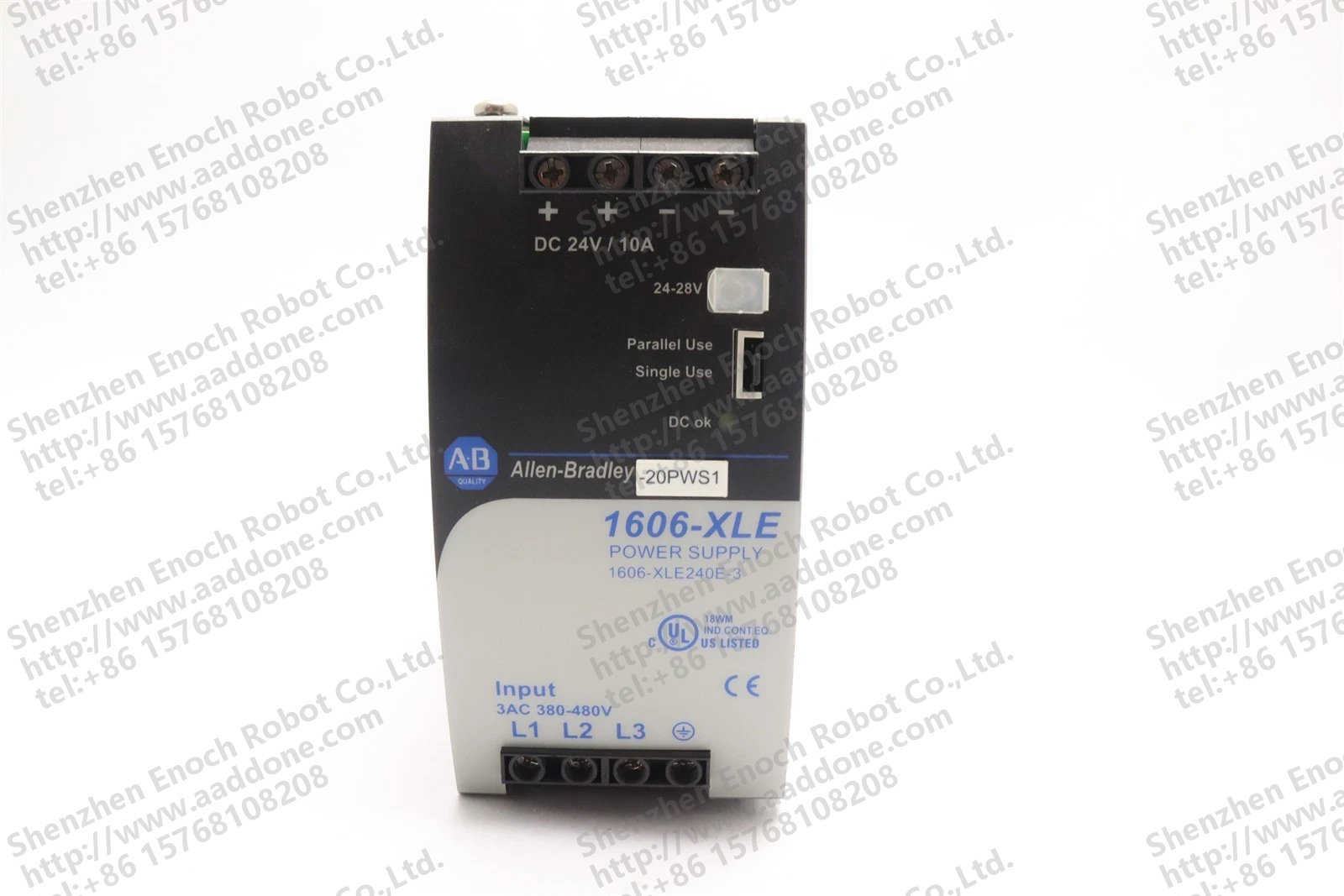

ALLEN BRADLEY 电源供应 1606-XLE240E-3A

The Allen-Bradley 1606-XLE240E-3/A Industrial Power Supply is a robust and reliable solution designed for demanding commercial and industrial applications. This high-performance power supply delivers a stable DC 24V output at 10A, ensuring consistent power delivery for critical systems.

Key Features:

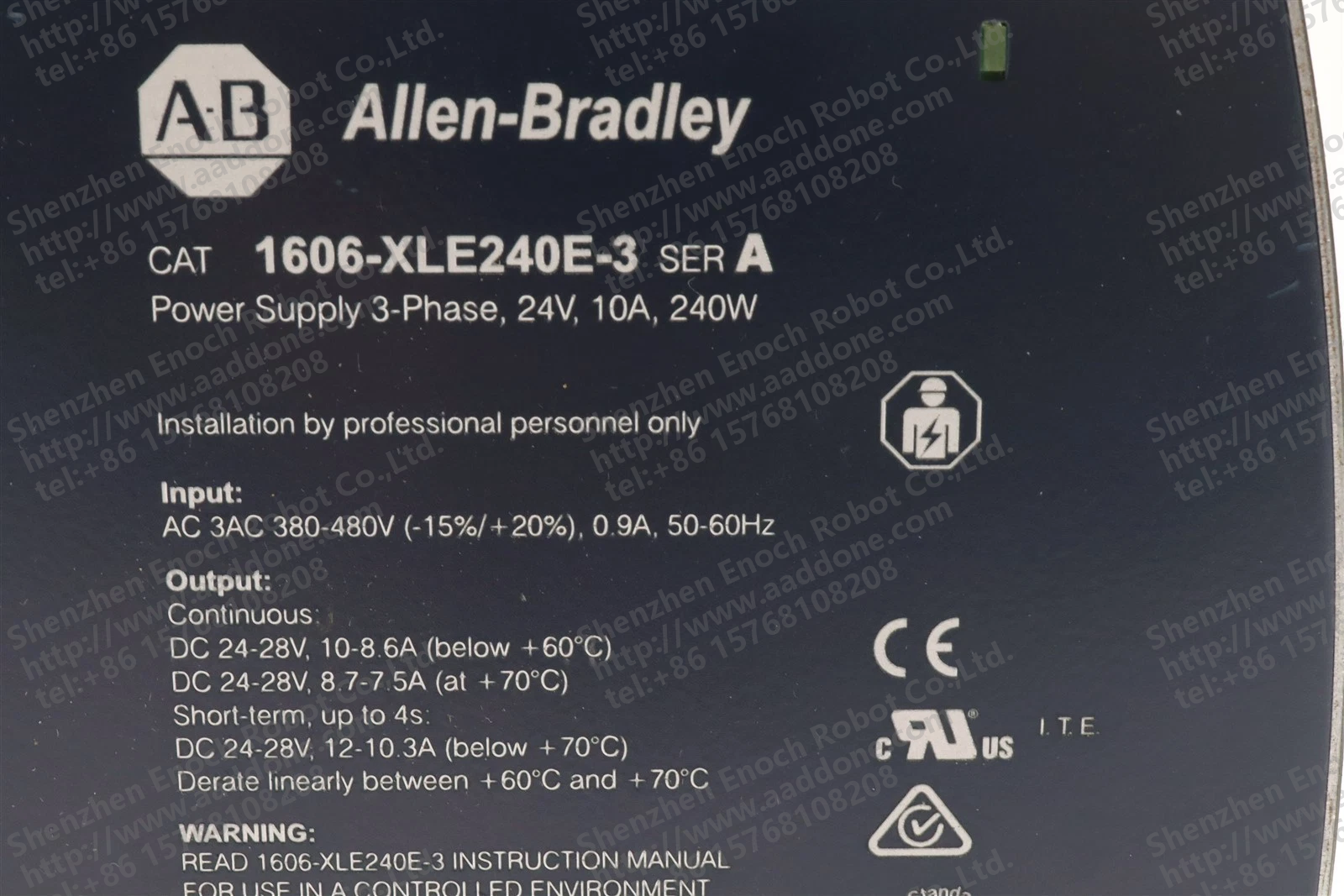

• Rated Output: DC 24V / 10A (240W)
• Input Voltage: 3AC 380-480V (-15%/+20%), 0.9A, 50-60Hz
• Operating Temperature Range: -20°C to +70°C
• Short-Term Overload Capability: Up to 4 seconds at 12-10.3A
• Parallel Use Capability for Increased Power Capacity
• Single Use Option for Standard Applications
• Compact DIN Rail Mount Design for Easy Installation
• UL Listed and CE Certified for Safety and Compliance
• Industrial Grade Construction for Longevity and Reliability

Specifications:

• Model: 1606-XLE240E-3
• Series: A
• Phase: 3-Phase
• Continuous Output: DC 24-28V, 10-8.6A (below +60°C), 8.7-7.5A (at +70°C)
• Short-Term Output: DC 24-28V, 12-10.3A (below +70°C)
• Derating Linearly Between +60°C and +70°C
• Input Connections: L1, L2, L3
• Output Connections: Positive, Negative

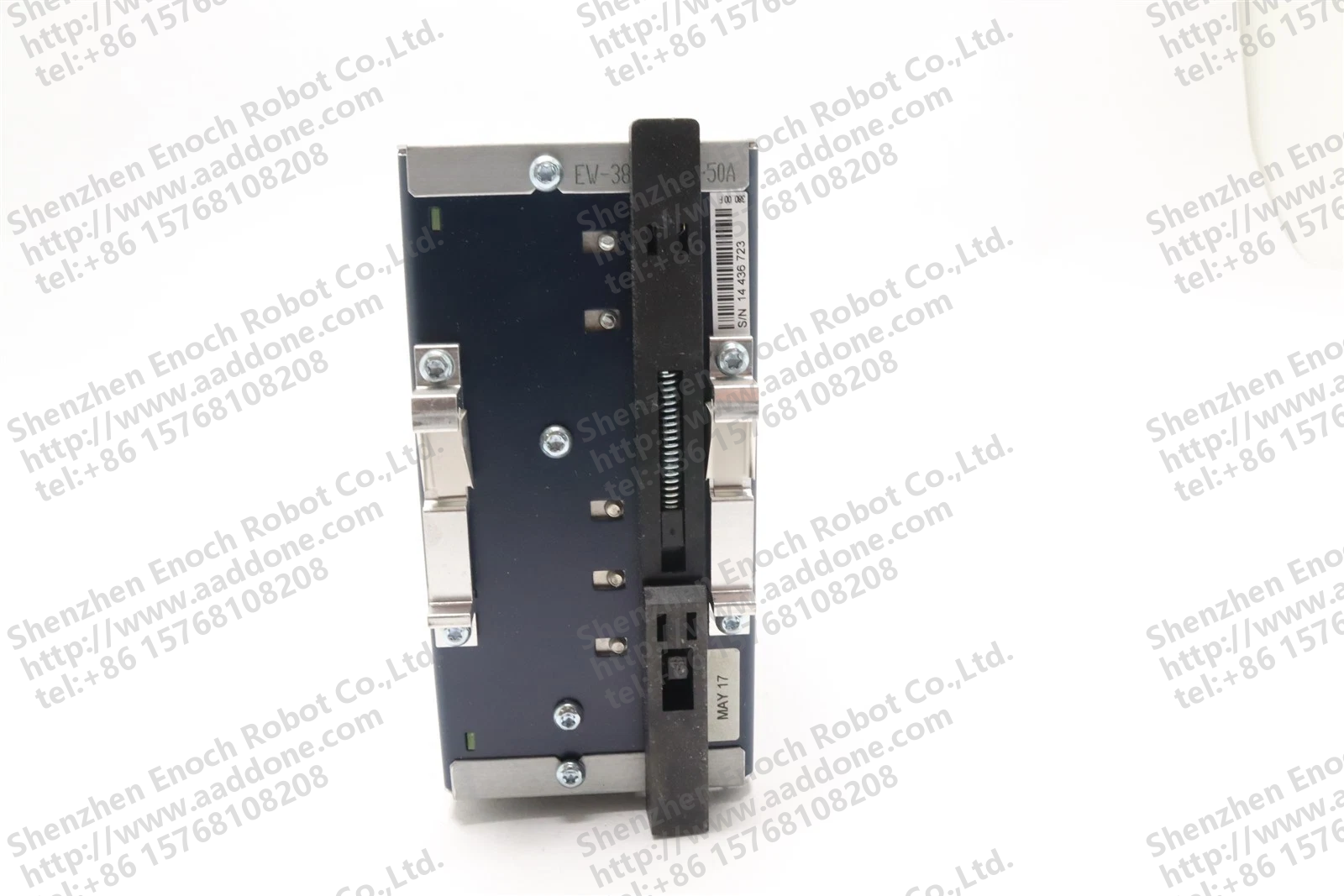

• Mounting: DIN Rail
• Weight: Approximately 1.5kg

Applications:

This versatile power supply is ideal for a wide range of industrial applications, including:

• Automation Systems
• Control Panels
• Machine Tools
• Process Control Equipment
• Building Management Systems
• Telecommunications Infrastructure
• Renewable Energy Systems

Benefits:

• High Efficiency and Low Heat Generation
• Wide Operating Temperature Range for Harsh Environments
• Compact Design for Space-Constrained Installations
• Reliable Performance with Built-In Protection Features
• Easy Integration into Existing Systems
• Cost-Effective Solution for Industrial Power Needs
• Compliant with International Safety Standards

Designed for professional use, this Allen-Bradley power supply offers exceptional performance and durability, making it an ideal choice for mission-critical industrial applications. The unit's compact design and easy installation make it a convenient solution for upgrading or expanding existing systems.
