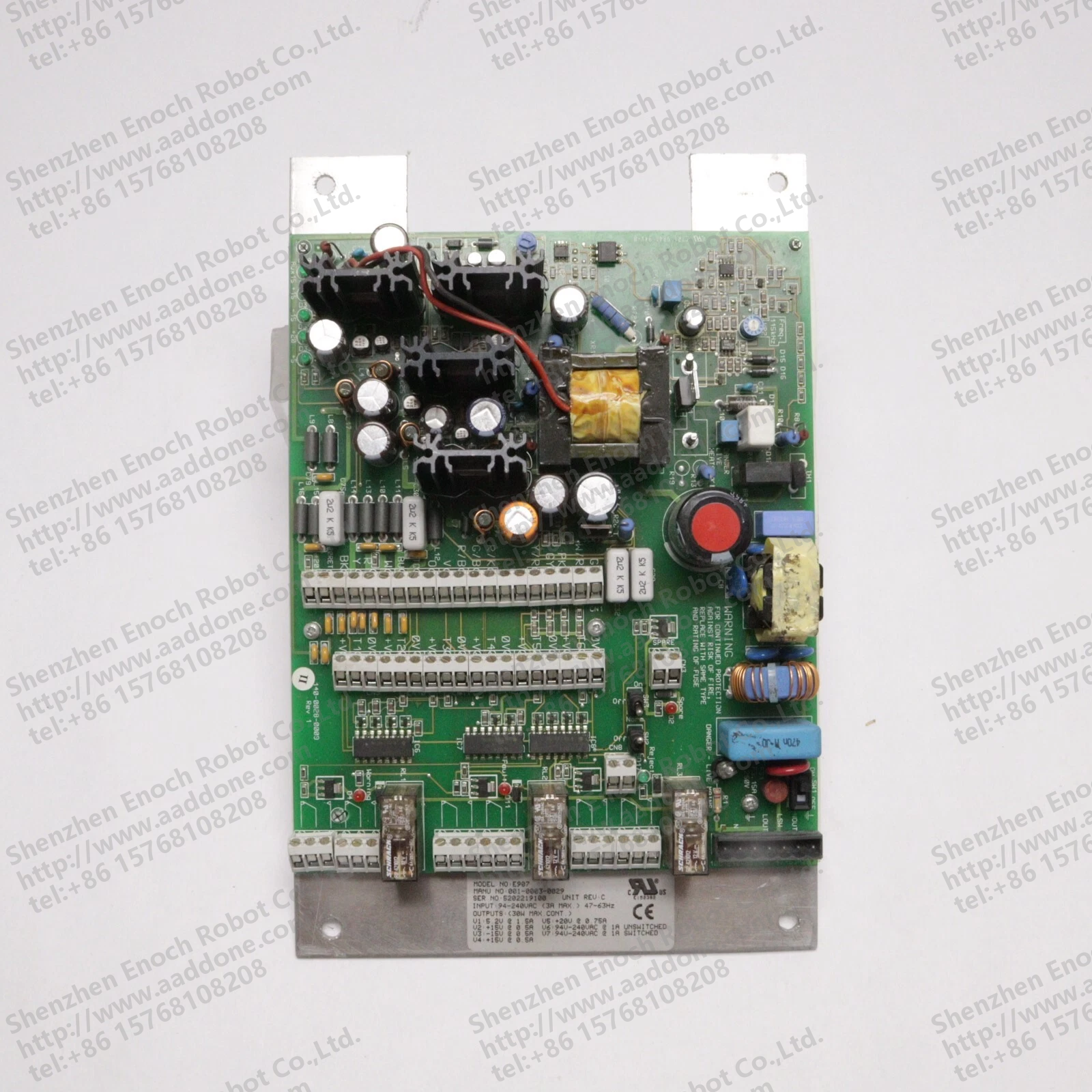

UNIPOWER POWER SUPPLY UNIT BOARD REV1 14000280009 E907

The UniPOWER Power Supply Unit Board Rev1 (Model No. E907, Part No. 140-0028-0009) is a robust and reliable power supply solution designed for commercial and industrial applications. This high-performance board features a compact design with a green printed circuit board (PCB) and multiple connection points for versatile integration into various systems.

Key Features:

• Input Voltage Range: 94-240VAC (3A Max.), 47-63Hz
• Multiple Output Voltages: V1: 5.2V @ 1.5A, V2: +15V @ 0.5A, V3: -15V @ 0.5A, V4: +15V @ 0.5A, V5: +20V @ 0.75A, V6: 94V-240VAC @ 1A (Unswitched), V7: 94V-240VAC @ 1A (Switched)
• Maximum Continuous Output Power: 30W
• Durable Construction: Featuring Schrader connectors and a sturdy metal mounting bracket for secure installation
• Comprehensive Protection: Built-in safety mechanisms to prevent overvoltage, overcurrent, and overheating
• Compact Design: Optimized for space-constrained environments while maintaining high efficiency

Specifications:

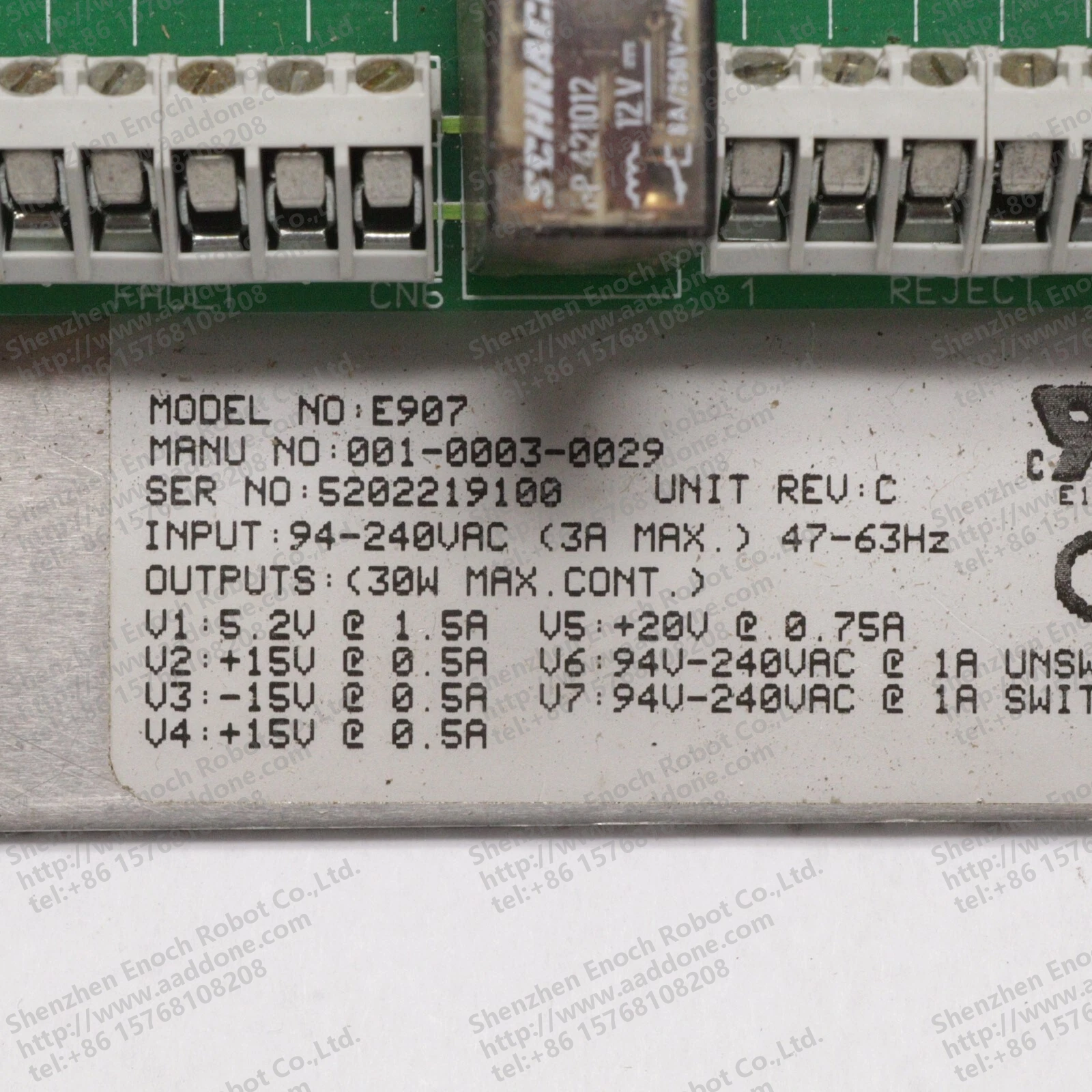

• Model Number: E907

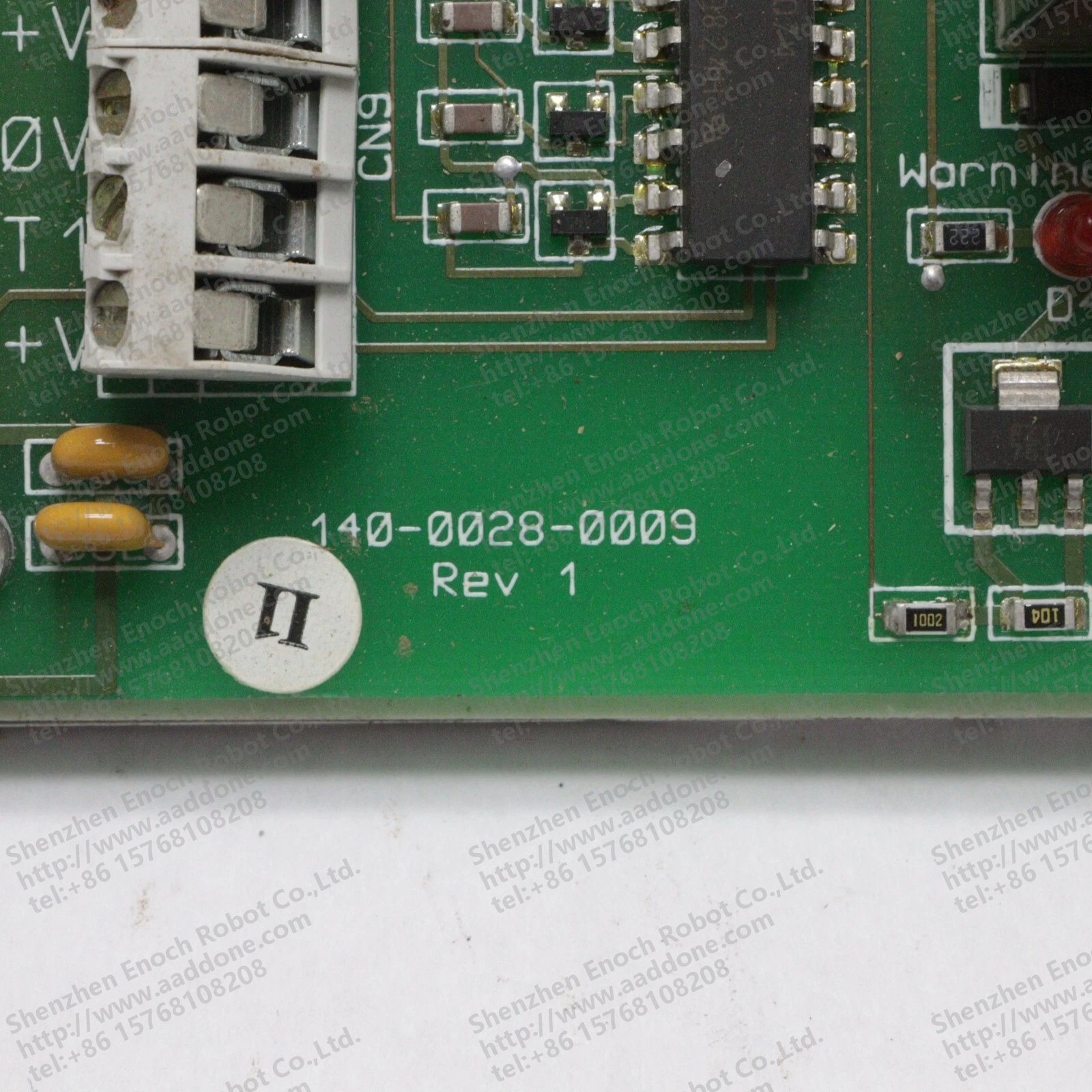

• Part Number: 140-0028-0009
• Revision: Rev 1
• Manufacturing Number: 001-0003-0029
• Serial Number: 5202219100
• Unit Revision: C
• Input Voltage: 94-240VAC
• Input Current: 3A Max.
• Input Frequency: 47-63Hz
• Output Power: 30W Max. Continuous
• Operating Temperature: -20°C to +70°C
• Dimensions: [Insert dimensions if visible in images]
• Weight: [Insert weight if visible in images]

Applications:

This UniPOWER Power Supply Unit Board Rev1 is ideal for a wide range of commercial and industrial applications, including:

• Industrial automation systems
• Control panels and PLCs
• Medical equipment
• Telecommunications devices
• Test and measurement instruments
• Consumer electronics manufacturing
• Any system requiring stable and reliable power conversion

Benefits:

• High Efficiency: Ensures minimal energy loss and optimal performance
• Reliability: Built to withstand harsh industrial environments and provide long-term durability
• Flexibility: Multiple output voltages allow for compatibility with various devices and systems
• Easy Installation: Compact size and clear labeling simplify integration into existing setups
• Cost-Effective: Offers a high-quality solution at an affordable price point, especially as a pre-owned unit
• Compliance: Meets industry standards for safety and performance, ensuring peace of mind
