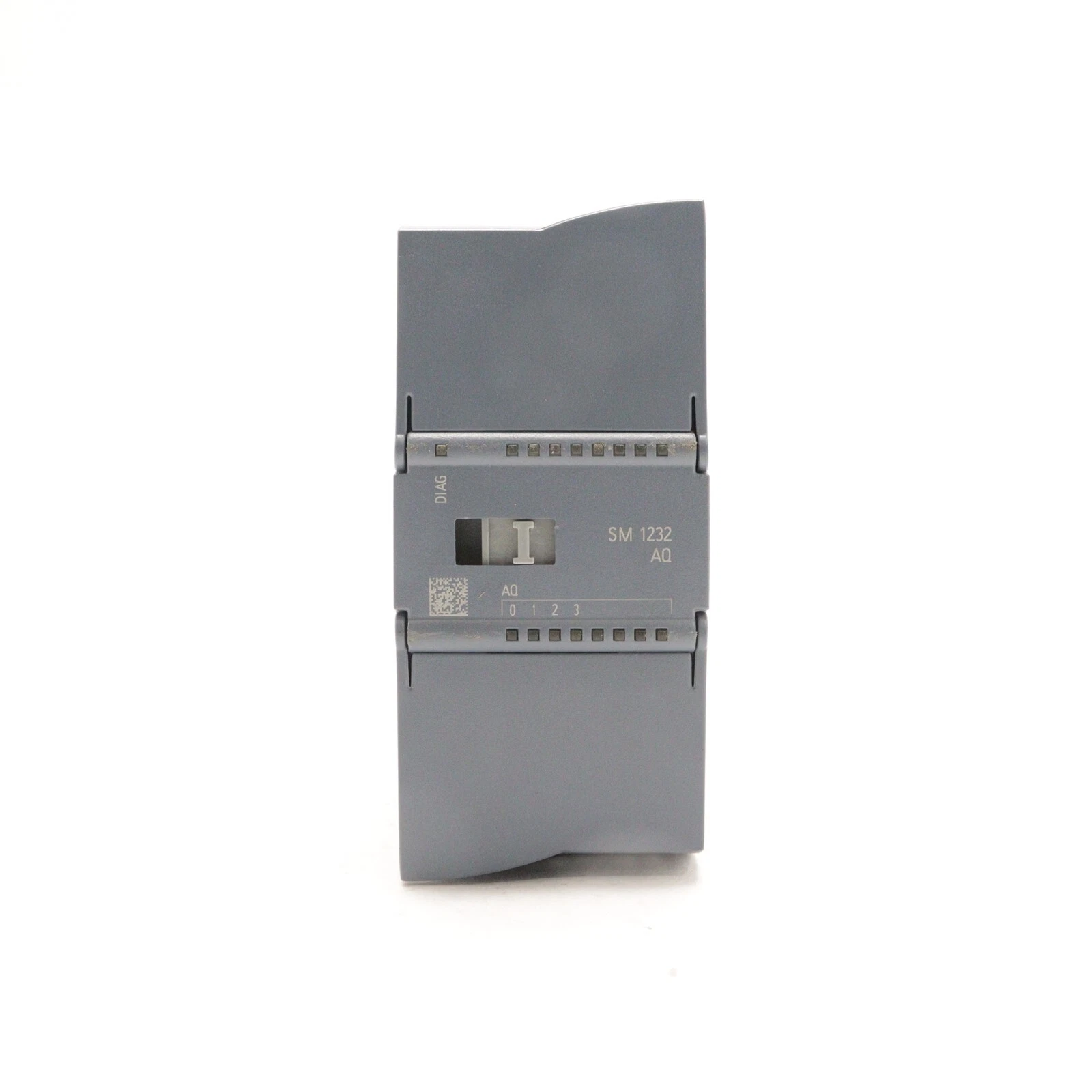

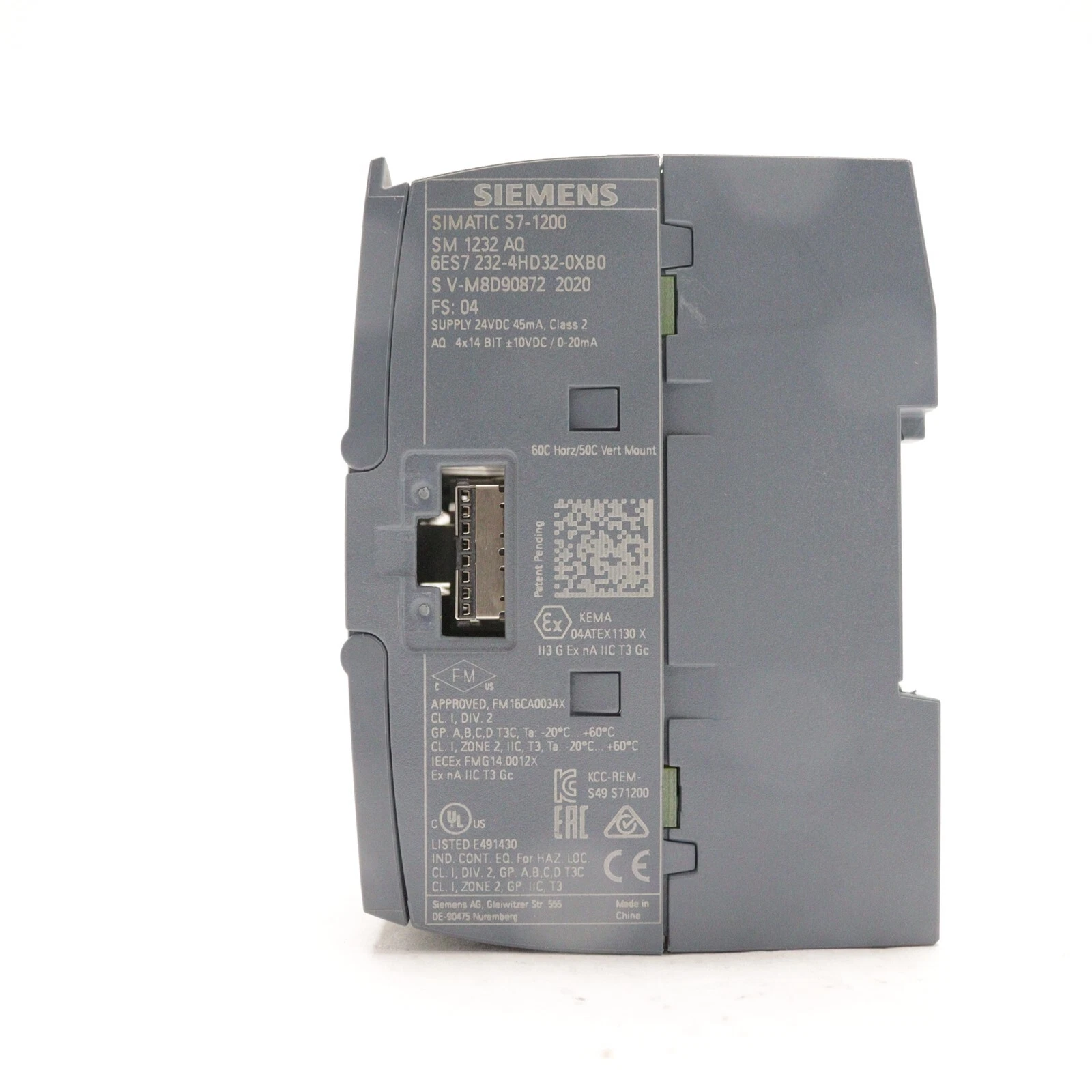

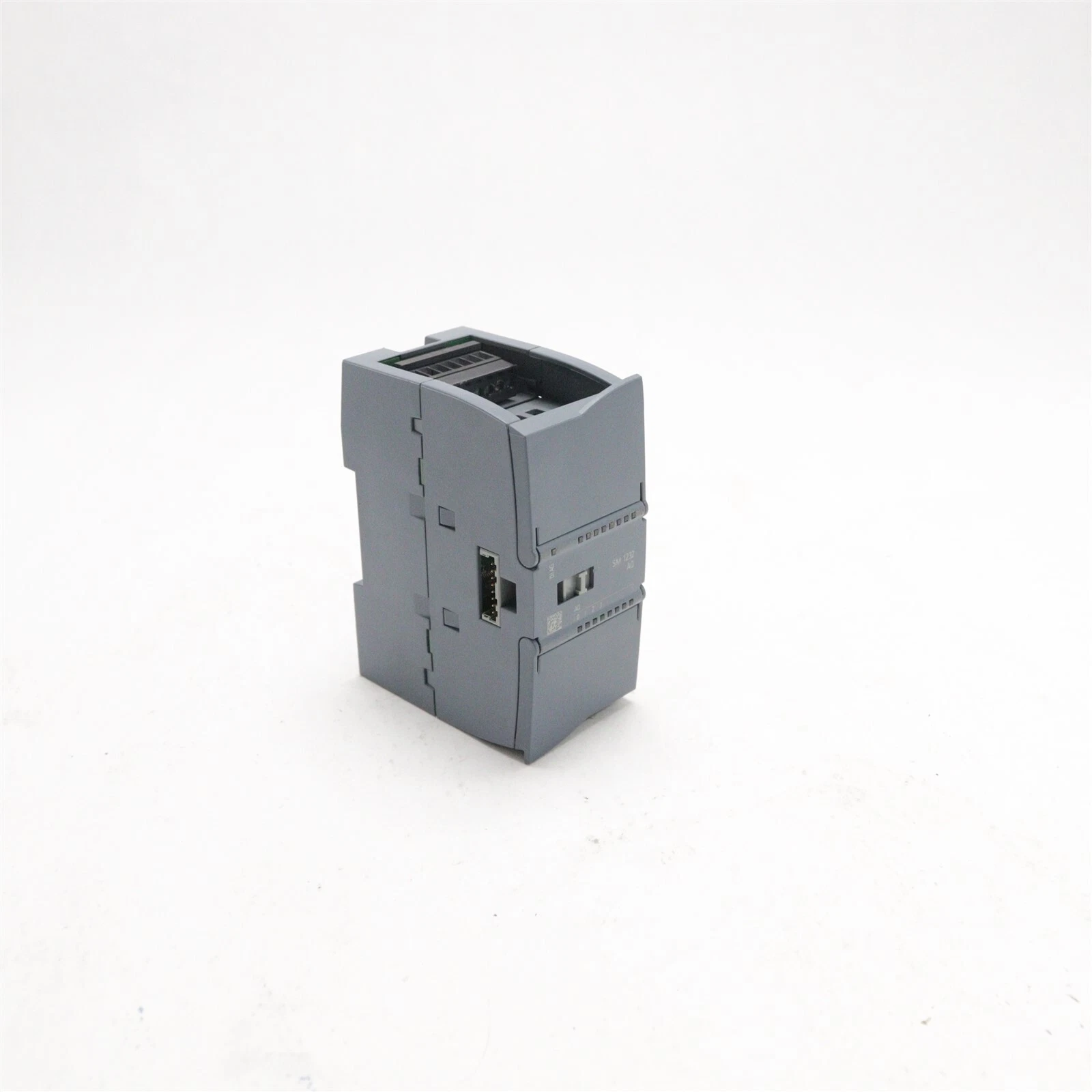

Siemens SIMATIC ANALOG Output S7-1200 SM 1232 AQ 24V 6ES7 232-4HD32-0XB0

The Siemens SIMATIC S7-1200 SM 1232 AQ 24V Output Module (6ES7 232-4HD32-0XB0) is a robust and reliable component designed for industrial automation applications. This module provides precise analog output control, making it ideal for use in environments where accurate signal transmission is critical.

Product Features:

• Provides 4 channels of analog output with a resolution of 14 bits
• Operates at a supply voltage of 24VDC with a current rating of 45mA
• Supports a wide range of analog signal outputs: ±10VDC or 0-20mA
• Compact and modular design for easy integration into existing systems
• Equipped with diagnostic indicators for quick troubleshooting
• Compliant with international safety standards including UL, CE, and KEMA

Specifications:

• Model: SM 1232 AQ
• Part Number: 6ES7 232-4HD32-0XB0
• Supply Voltage: 24VDC
• Current Rating: 45mA
• Output Range: ±10VDC / 0-20mA
• Resolution: 14 bits
• Operating Temperature: -20°C to +60°C
• Enclosure Rating: IP20
• Dimensions: [Insert dimensions if visible in images]

Applications:

• Process control systems in manufacturing plants
• Automated production lines requiring precise analog signal output
• Industrial robotics and machinery control
• Building automation systems for HVAC and lighting control
• Test and measurement equipment requiring accurate analog signal generation

Benefits:

• Enhanced system reliability through built-in diagnostics
• Improved accuracy and precision in analog signal transmission
• Easy installation and maintenance due to modular design
• Long-term durability and performance in demanding industrial environments
• Cost-effective solution for integrating analog output capabilities into existing SIMATIC S7-1200 systems
