ALLEN BRADLEY DRIVE BOARD REV 03 74101-772-54

Allen Bradley Drive Board Rev 03 74101-772-54 is a high-performance industrial automation component designed for robust and reliable operation in demanding environments. This drive board is part of Allen Bradley's renowned line of programmable logic controllers (PLCs) and is ideal for applications requiring precise control and monitoring of industrial processes.

Product Features:

• Advanced Circuitry: Equipped with multiple integrated circuits, including microprocessors and memory chips, ensuring efficient data processing and storage capabilities.
• Connectivity Options: Features various connectors, including terminal blocks and USB ports, facilitating easy integration with other industrial equipment and systems.
• Dual Power Supply Inputs: Supports dual power supply inputs (48V and 15V), providing flexibility and redundancy for uninterrupted operation.
• Comprehensive Safety Warnings: Includes prominent safety labels and warnings to ensure safe handling and maintenance procedures are followed.
• Compact Design: Designed with a compact form factor, making it suitable for installation in space-constrained environments.
• High-Quality Components: Manufactured using high-quality components and materials, ensuring durability and long-term reliability.

Specifications:

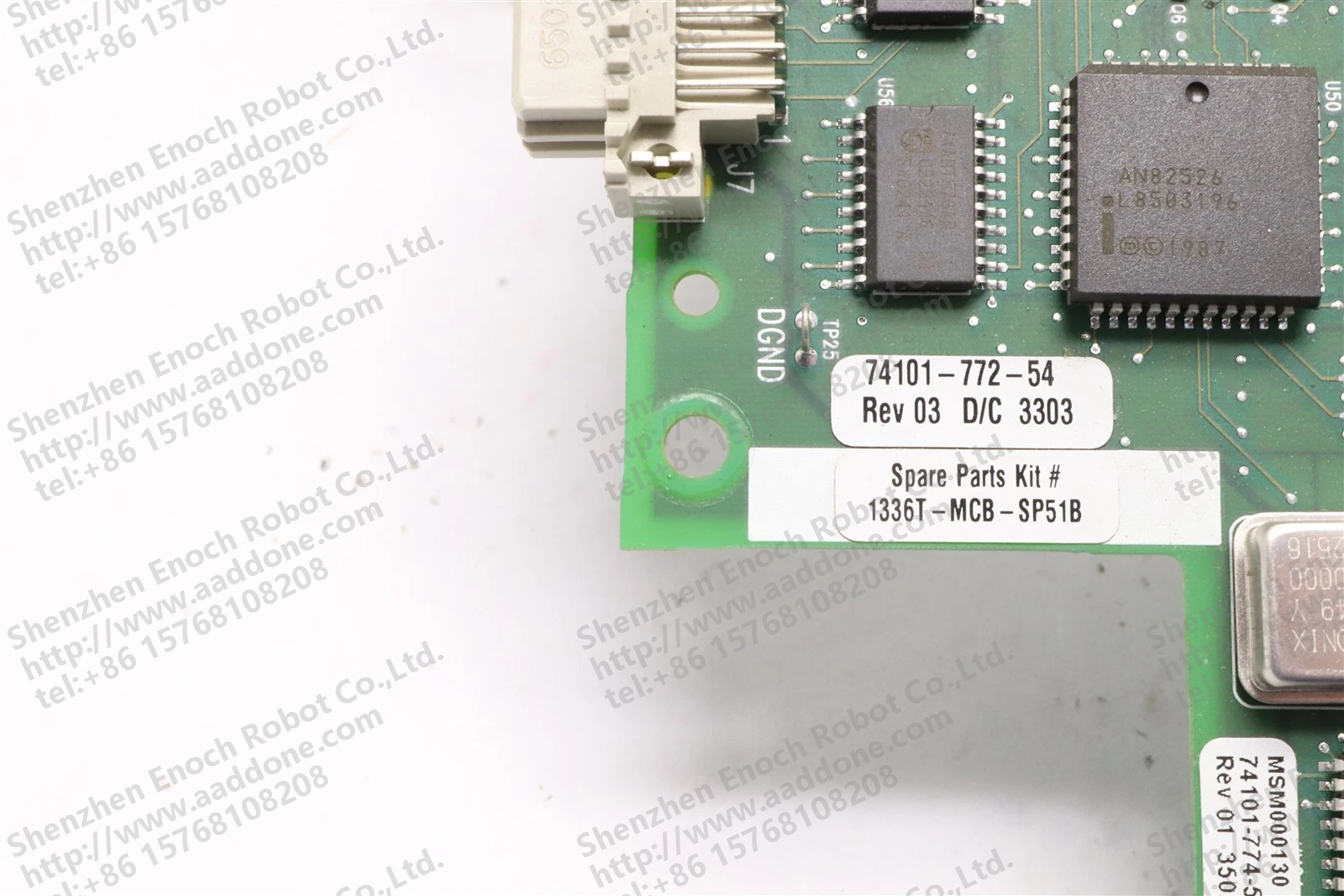

• Model Number: 74101-772-54
• Revision: Rev 03
• Power Supply: 48V and 15V
• Operating Temperature: -20°C to +60°C
• Dimensions: [Insert dimensions if visible in images]
• Weight: [Insert weight if visible in images]

Applications:

• Industrial Automation: Ideal for use in automated manufacturing lines, assembly systems, and robotic applications.
• Process Control: Suitable for controlling and monitoring industrial processes in sectors such as food and beverage, pharmaceuticals, and chemicals.
• Motion Control: Effective in applications requiring precise motion control, such as conveyor systems and packaging machinery.
• Energy Management: Can be utilized in energy management systems to optimize power usage and reduce costs.

Benefits:

• Enhanced Performance: Delivers superior performance with fast data processing and reliable operation.
• Cost-Effective Solution: Offers a cost-effective solution for upgrading or replacing existing drive boards in industrial setups.
• Easy Maintenance: Designed for easy maintenance and troubleshooting, reducing downtime and operational costs.
• Compatibility: Compatible with a wide range of Allen Bradley PLCs and other industrial automation systems.
• Proven Reliability: Backed by Allen Bradley's reputation for quality and reliability, ensuring long-term performance and support.
