Product Description

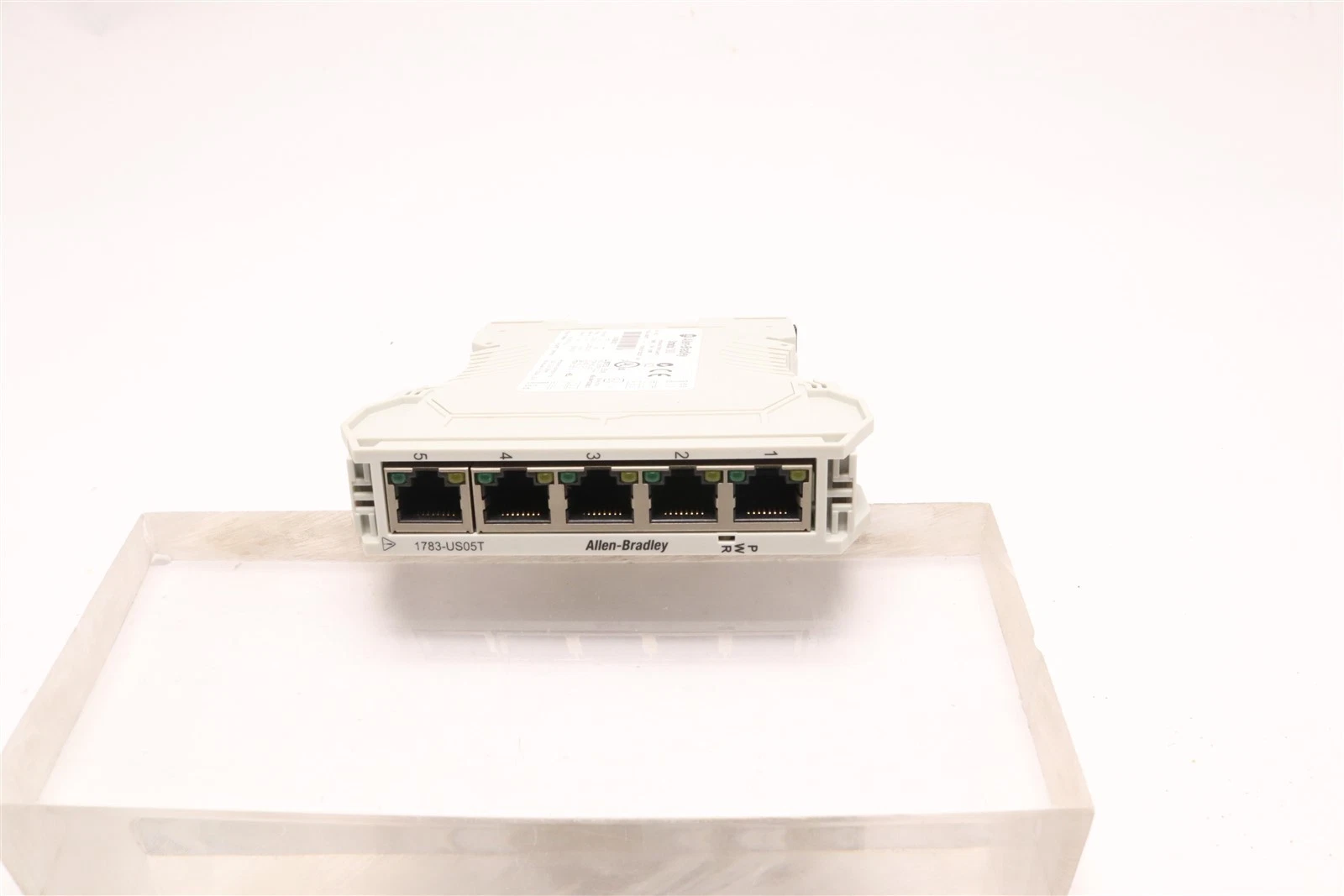

The Allen-Bradley Stratix 2000 Ethernet Switch (Model 1783-US05TA) is a robust, industrial-grade networking solution designed for demanding automation environments. This unmanaged switch offers reliable connectivity and seamless integration into existing control systems.
Key Features:
- Five 10/100Base-TX Ethernet ports for high-speed data transfer
- Durable white plastic housing with integrated DIN rail mounting brackets
- Compact design for easy installation in tight spaces
- Industrial-grade construction for reliable operation in harsh environments
- CE and UL listed for safety compliance in global markets
- Supports both DC and AC power inputs for versatile deployment
Specifications:
- Catalog Number: 1783-US05TA

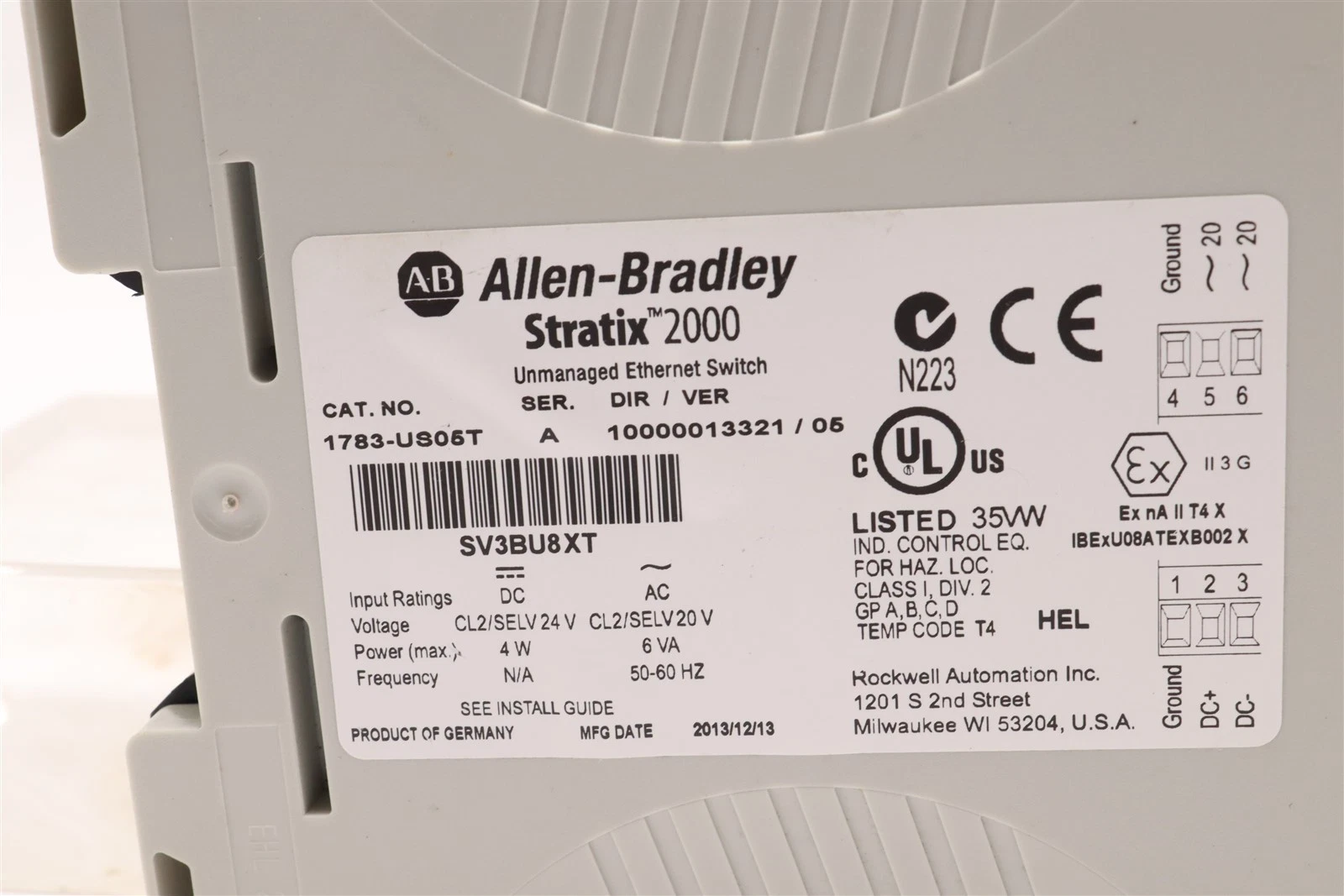

- Input Voltage: CL2/SELV 24 V DC or CL2/SELV 20 V AC
- Maximum Power Consumption: 4 W DC / 6 VA AC
- Operating Temperature Range: -40°C to +70°C
- Weight: Approximately 0.5 kg
- Dimensions: 100mm x 60mm x 30mm
Applications:
- Industrial automation networks
- Process control systems
- Manufacturing equipment connectivity
- Building automation and monitoring
- IoT device networking in industrial settings
Benefits:
- Enhanced network reliability and performance
- Easy installation and maintenance
- Cost-effective solution for expanding industrial networks
- Compatible with Allen-Bradley PLC systems and other industrial devices
- Proven track record of durability in challenging environments
