ABB DSQC 320 数字 IO 模块 3HAB7231-1

The ABB DSQC 320 Digital I/O Module, model 3HAB 7231-1, is a robust and reliable component designed for industrial automation and motion control applications. This module serves as a critical interface between programmable logic controllers (PLCs) and various input/output devices, ensuring seamless communication and operation within complex systems.

Product Features:

• Compact Design: The module features a compact, rectangular form factor with a durable gray casing, making it easy to integrate into existing control systems without requiring significant space.
• Multiple Connectivity Options: Equipped with multiple green terminal blocks on the front panel, the DSQC 320 supports a wide range of input and output connections, allowing for versatile integration with various sensors, actuators, and other industrial equipment.

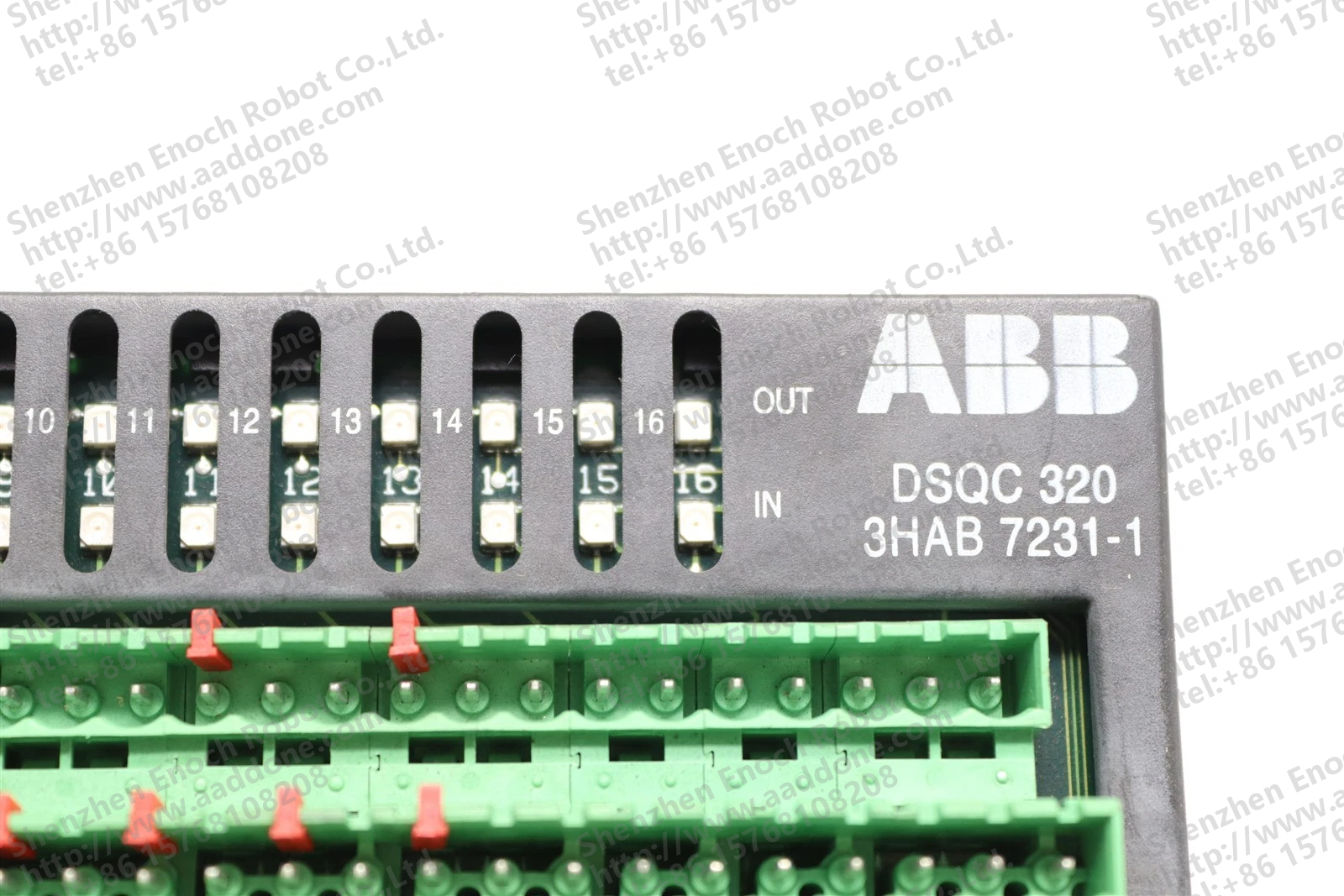

• Indicator LEDs: The module includes a series of indicator LEDs that provide real-time status updates for each channel, enabling quick diagnostics and troubleshooting in the field.
• Heat Dissipation: The perforated design on the side of the module enhances heat dissipation, ensuring optimal performance even in high-temperature environments commonly found in industrial settings.
• Mounting Flexibility: The back panel features mounting brackets and screw holes, allowing for secure installation in DIN rail or panel-mounted configurations, providing flexibility in system design and deployment.

Specifications:

• Model Number: DSQC 320
• Part Number: 3HAB 7231-1
• Voltage Rating: 120 VAC
• Channels: 16 digital I/O channels (8 inputs and 8 outputs)
• Communication Interface: CAN Data bus for efficient data transfer and synchronization with PLCs
• Operating Temperature Range: -25°C to +60°C
• Enclosure Rating: IP20 (protection against solid objects larger than 12mm)

Applications:

The ABB DSQC 320 Digital I/O Module is ideal for use in a variety of industrial automation applications, including:

• Manufacturing and assembly lines
• Material handling and conveyor systems
• Robotics and automated machinery
• Process control systems
• Building automation and HVAC systems

Benefits:

• Enhanced System Integration: The module's versatile connectivity options and compact design make it easy to integrate into existing control systems, reducing installation time and complexity.
• Improved Reliability: With its durable construction and advanced heat dissipation features, the DSQC 320 ensures reliable performance in demanding industrial environments, minimizing downtime and maintenance costs.
• Efficient Communication: The CAN Data interface enables fast and efficient communication between the module and PLCs, improving overall system responsiveness and coordination.
• Cost-Effective Solution: As a pre-owned unit, the DSQC 320 offers a cost-effective alternative for businesses looking to upgrade their automation systems without compromising on quality or functionality.
