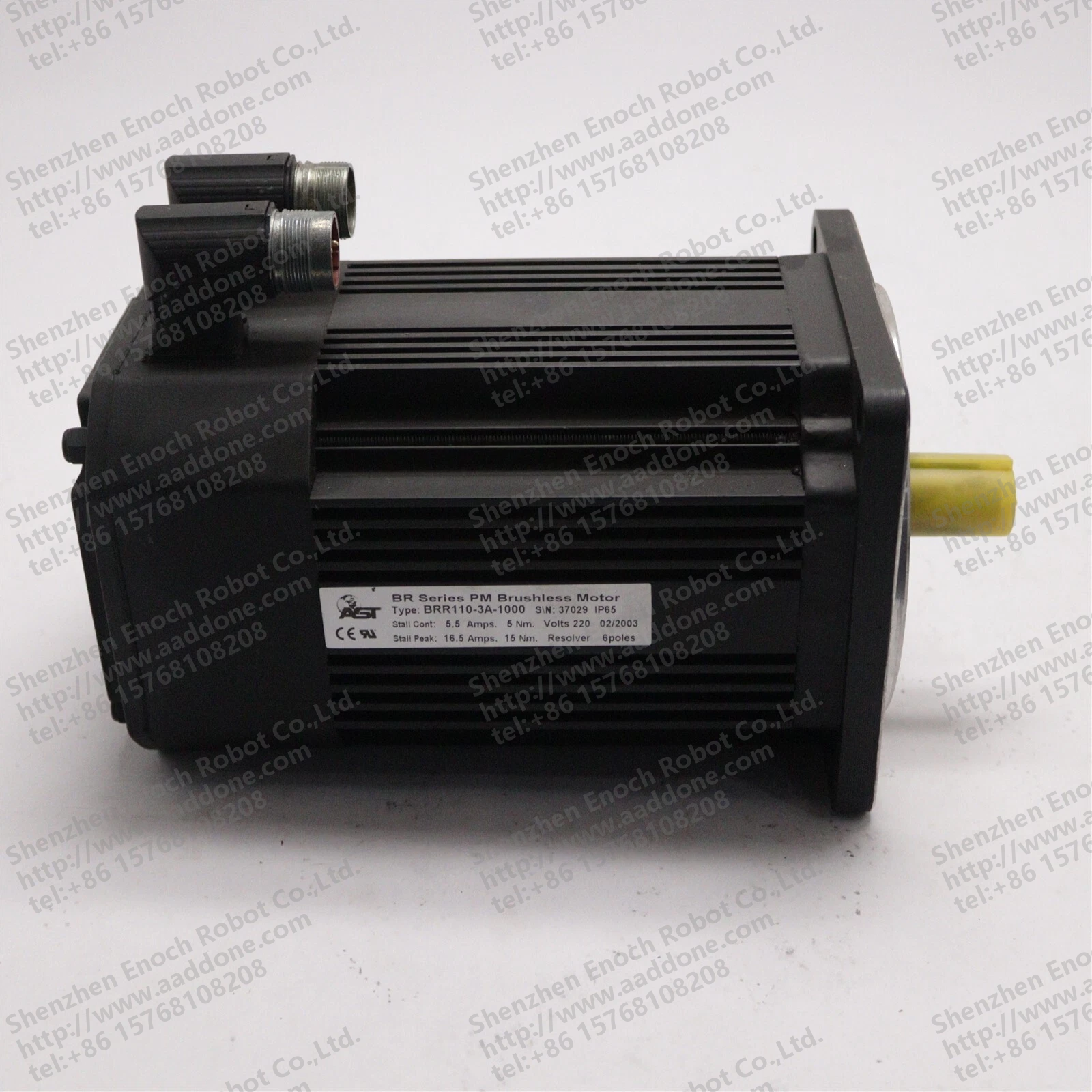

AST BR 系列交流电机 BRR110-3A-1000

The AST BR 系列交流电机 BRR110-3A-1000 is a high-performance, brushless permanent magnet (PM) motor designed for demanding industrial automation and motion control applications. This robust motor combines precision engineering with advanced technology to deliver exceptional reliability and efficiency.

Product Features:

• Brushless Design: Eliminates the need for brushes, reducing maintenance requirements and increasing operational lifespan.
• Permanent Magnet Technology: Ensures high efficiency and consistent performance across a wide range of operating conditions.
• Compact and Durable Construction: The motor features a rugged, IP65-rated housing that protects against dust and water ingress, making it suitable for use in harsh industrial environments.
• High Torque Output: Provides a continuous torque of 5 Nm and a peak torque of 15 Nm, ensuring reliable performance in heavy-duty applications.
• Advanced Resolver Feedback: Equipped with a high-resolution resolver for precise position and speed control, enhancing overall system accuracy.
• Efficient Cooling System: The ribbed design on the motor casing improves heat dissipation, maintaining optimal operating temperatures even under continuous load.
• Flexible Mounting Options: The motor includes multiple mounting holes, allowing for easy integration into various machinery setups.

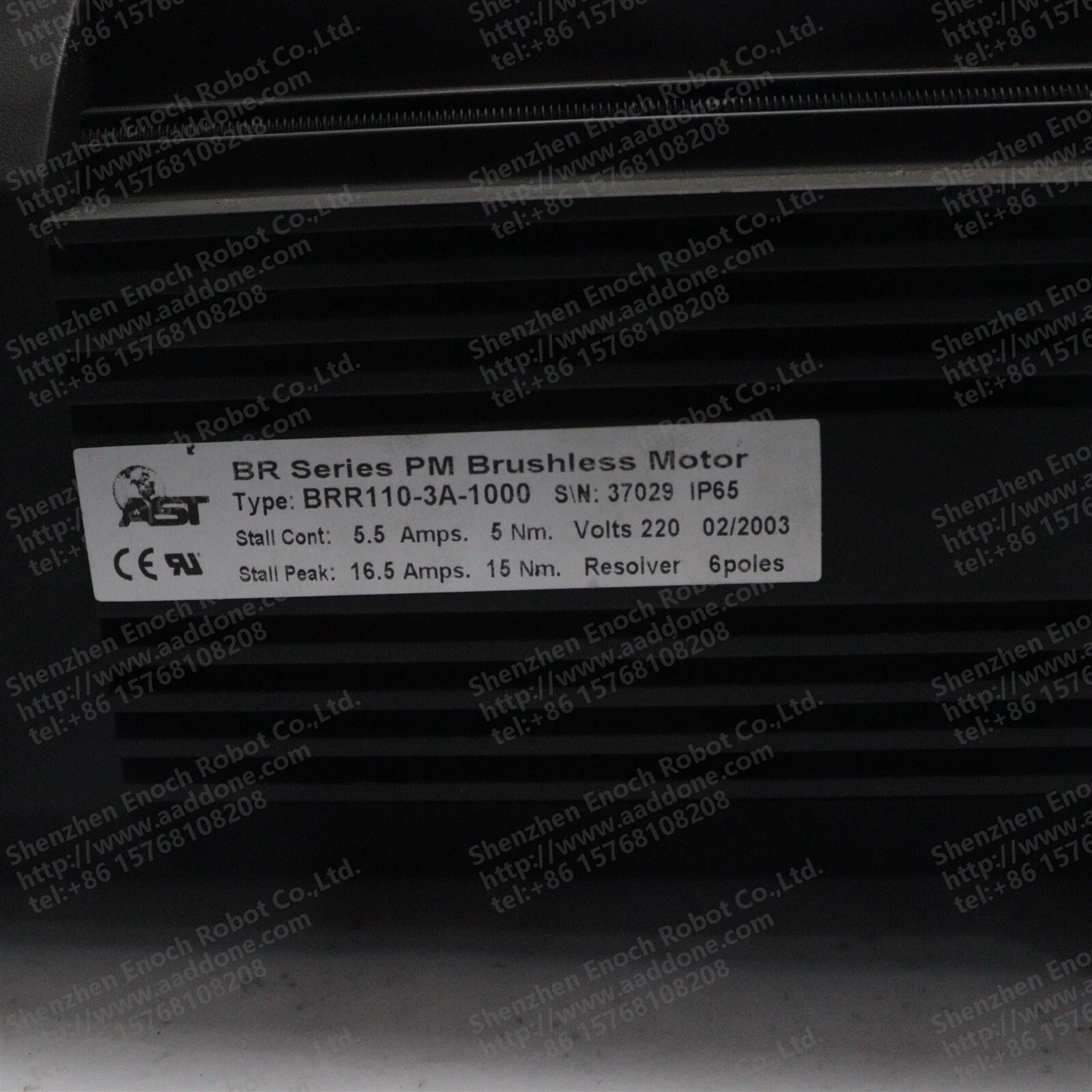

Specifications:

• Type: BRR110-3A-1000
• Series: BR Series PM Brushless Motor
• Continuous Current: 5.5 Amps
• Continuous Torque: 5 Nm
• Peak Current: 16.5 Amps
• Peak Torque: 15 Nm
• Voltage: 220 Volts
• Resolution: 6 Poles
• Protection Rating: IP65
• Weight: Approximately 10 kg (subject to variation)

Applications:

The AST BR 系列交流电机 BRR110-3A-1000 is ideal for a wide range of industrial applications, including but not limited to:

• Robotic systems and automated assembly lines
• CNC machines and precision manufacturing equipment
• Conveyor systems and material handling solutions
• Medical devices and laboratory automation
• Energy-efficient industrial drives and pumps

Benefits:

• Enhanced Reliability: The brushless design and durable construction ensure long-term reliability and minimal downtime.
• Improved Efficiency: High-efficiency permanent magnet technology reduces energy consumption and operating costs.
• Accurate Control: The advanced resolver feedback system provides precise control over position and speed, improving overall system performance.
• Low Maintenance: The absence of brushes eliminates the need for frequent maintenance, reducing operational costs and increasing productivity.
• Adaptable Design: The compact size and flexible mounting options make it easy to integrate into existing systems or new installations.
