YASKAWA SERVO AMP SGDS-50A01A

The Yaskawa Servopack SGDS-50A01A is a high-performance industrial servo amplifier designed for precision motion control applications. This robust unit features a compact, durable design with a beige casing and multiple connection ports for seamless integration into complex automation systems.

Key Features:

• Rated for 200V AC input voltage
• Capable of delivering up to 5kW output power at 32.9A
• Supports 3-phase operation with frequency range of 0-300Hz
• Wide operating temperature range from 0°C to 55°C
• Equipped with multiple connectors including CN1, CN3, and RS-232 interface
• Complies with international safety standards (CE, UL, TÜV)
• IP1X protection rating for dust protection
• Manufactured in Japan with Yaskawa's renowned quality and reliability

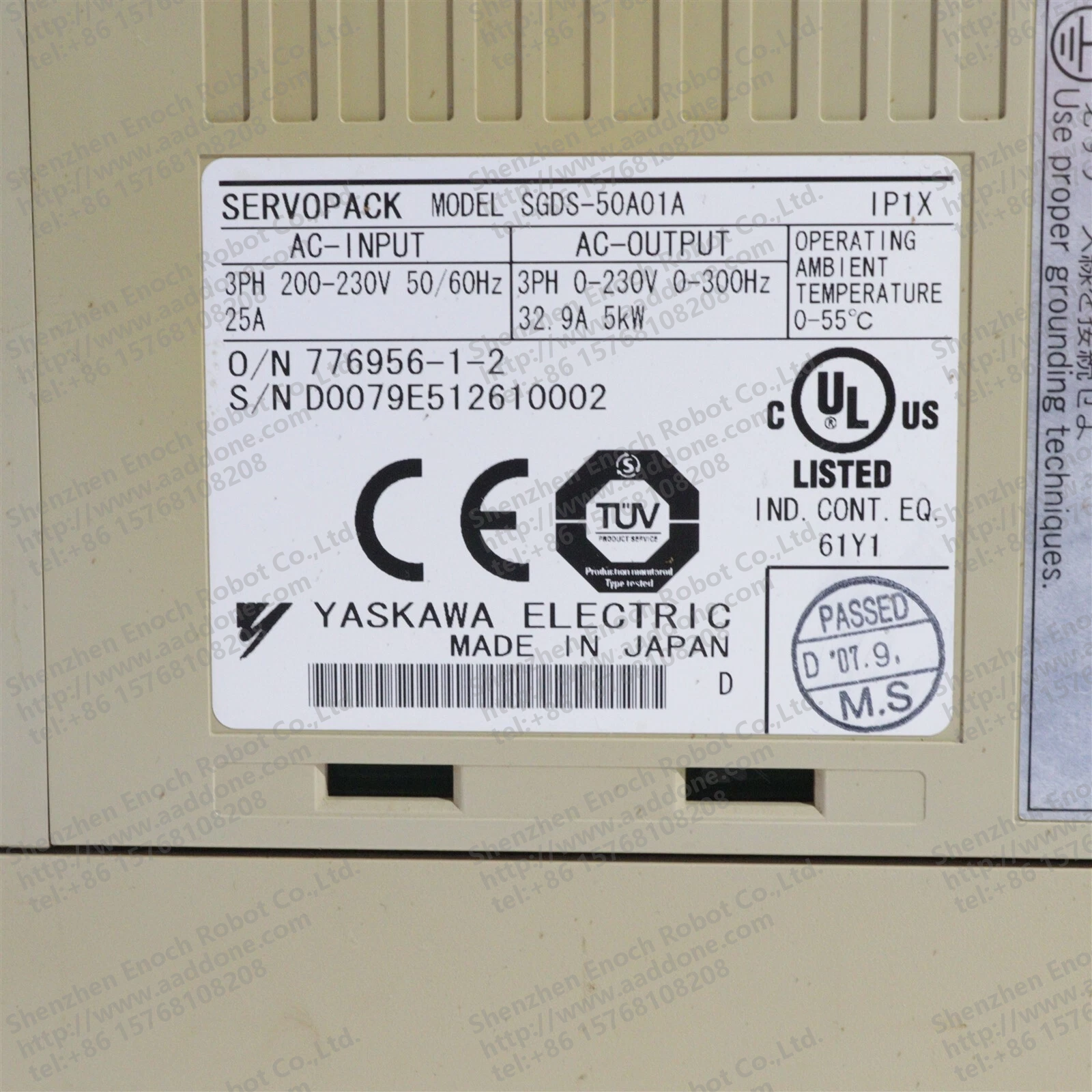

Specifications:

• Model: SGDS-50A01A
• Voltage Rating: 200V AC
• Input Current: 25A
• Output Power: 5kW
• Frequency Range: 0-300Hz
• Operating Temperature: 0-55°C
• Protection Rating: IP1X
• Weight: Approximately 10kg
• Dimensions: 200mm x 150mm x 100mm (LxWxH)

Applications:

This versatile servo amplifier is ideal for a wide range of industrial automation applications, including but not limited to:

• Robotic systems
• Machine tools and CNC equipment
• Conveyor systems
• Packaging machinery
• Material handling equipment
• Automated assembly lines
• Printing and labeling machines
• Medical device manufacturing

Benefits:

• Enhanced precision and responsiveness for critical applications
• Improved energy efficiency and reduced operational costs
• Reliable performance in demanding industrial environments
• Easy integration with existing Yaskawa servo motors and controllers
• Long service life with minimal maintenance requirements
• Comprehensive safety certifications for peace of mind
• Excellent heat dissipation through optimized ventilation design
