KEYENCE SAFTEY 轻质接收器 GL-R08H-R

The KEYENCE GL-R08H-R Safety Light Curtain Receiver is a high-precision industrial component designed for robust safety applications in automated environments. This compact and durable receiver features a sleek black and yellow design, ensuring visibility and easy integration into existing systems.

Product Features:

• Compact Design: With a diameter of 25mm (0.98 inches), this receiver is ideal for space-constrained installations.
• High Precision: Offers detection heights up to 140mm (185mm with protection height) for reliable object detection.
• Fast Response Time: Ensures quick reaction times of 6.6ms (Channel 0) and 6.9ms (Channel AorB) for efficient operation.
• Wide Operating Distance: Supports protection lengths ranging from 0.2m to 15m, providing flexibility in various applications.
• Robust Construction: Built to withstand demanding industrial conditions, ensuring long-term reliability.
• Easy Integration: Compatible with standard industrial automation systems for seamless setup.

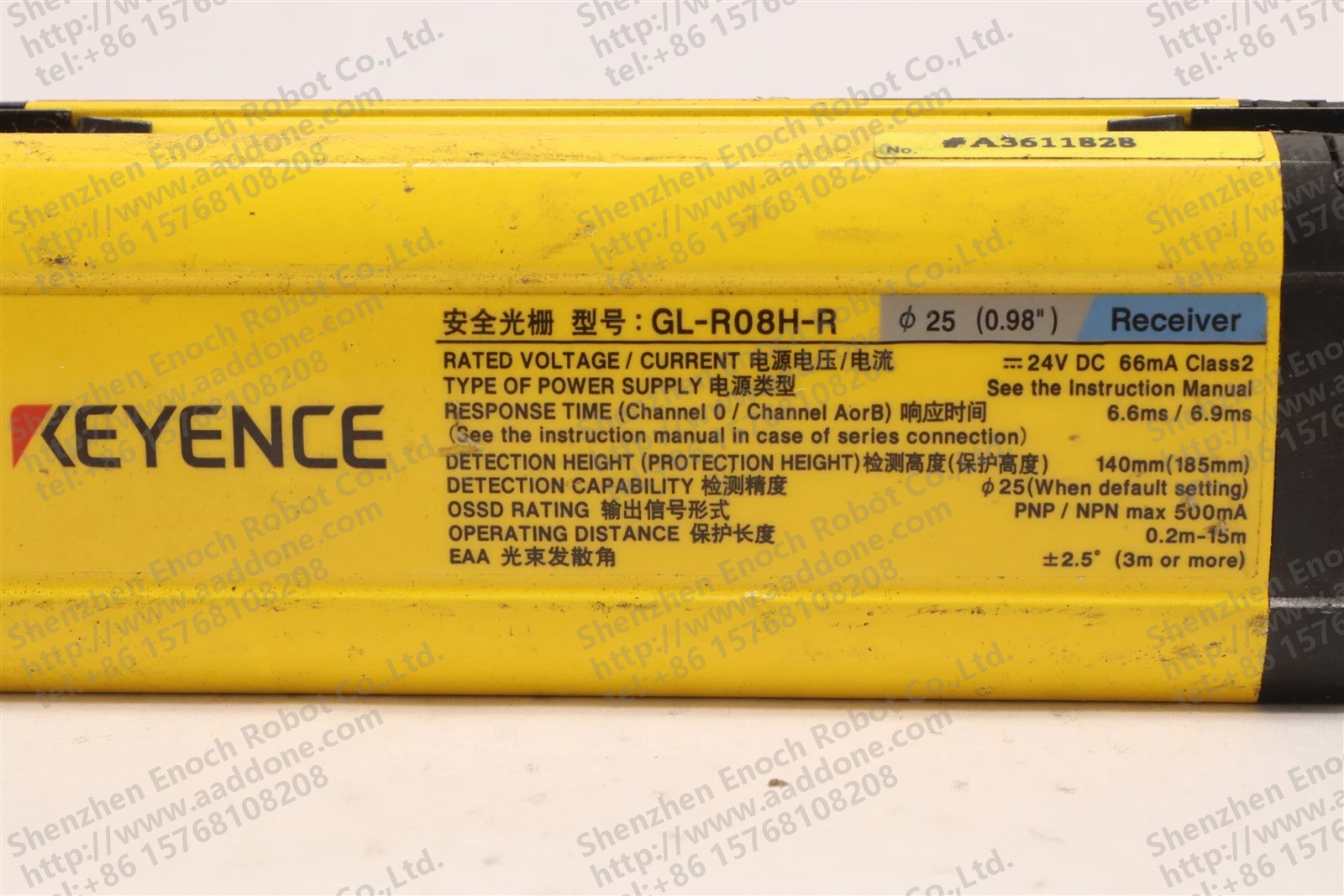

Specifications:

• Rated Voltage: 24V DC
• Current: 66mA Class2
• Type of Power Supply: See the Instruction Manual
• Response Time: 6.6ms / 6.9ms (Channel 0 / Channel AorB)
• Detection Height: 140mm (185mm with protection height)
• Detection Capability: Ø25mm (default setting)
• OSSD Rating: PNP / NPN max 500mA
• Operating Distance: 0.2m - 15m
• Emission Angle: ±2.5° (3m or more)

Applications:

The KEYENCE GL-R08H-R Safety Light Curtain Receiver is widely used in industrial automation and motion control systems. It is ideal for applications requiring precise object detection and safety monitoring, such as:

• Assembly lines and manufacturing processes
• Robotics and automated machinery
• Conveyor systems and material handling
• Machine guarding and safety barriers
• Quality control and inspection systems

Benefits:

• Enhanced Safety: Provides reliable object detection to prevent accidents and ensure worker safety.
• Improved Efficiency: Fast response times and precise detection capabilities optimize production processes.
• Cost-Effective: Compact design and easy integration reduce installation costs and maintenance requirements.
• Longevity: Durable construction ensures long-term performance and reliability in demanding environments.
• Flexibility: Wide operating distance and versatile applications make it suitable for various industrial settings.
