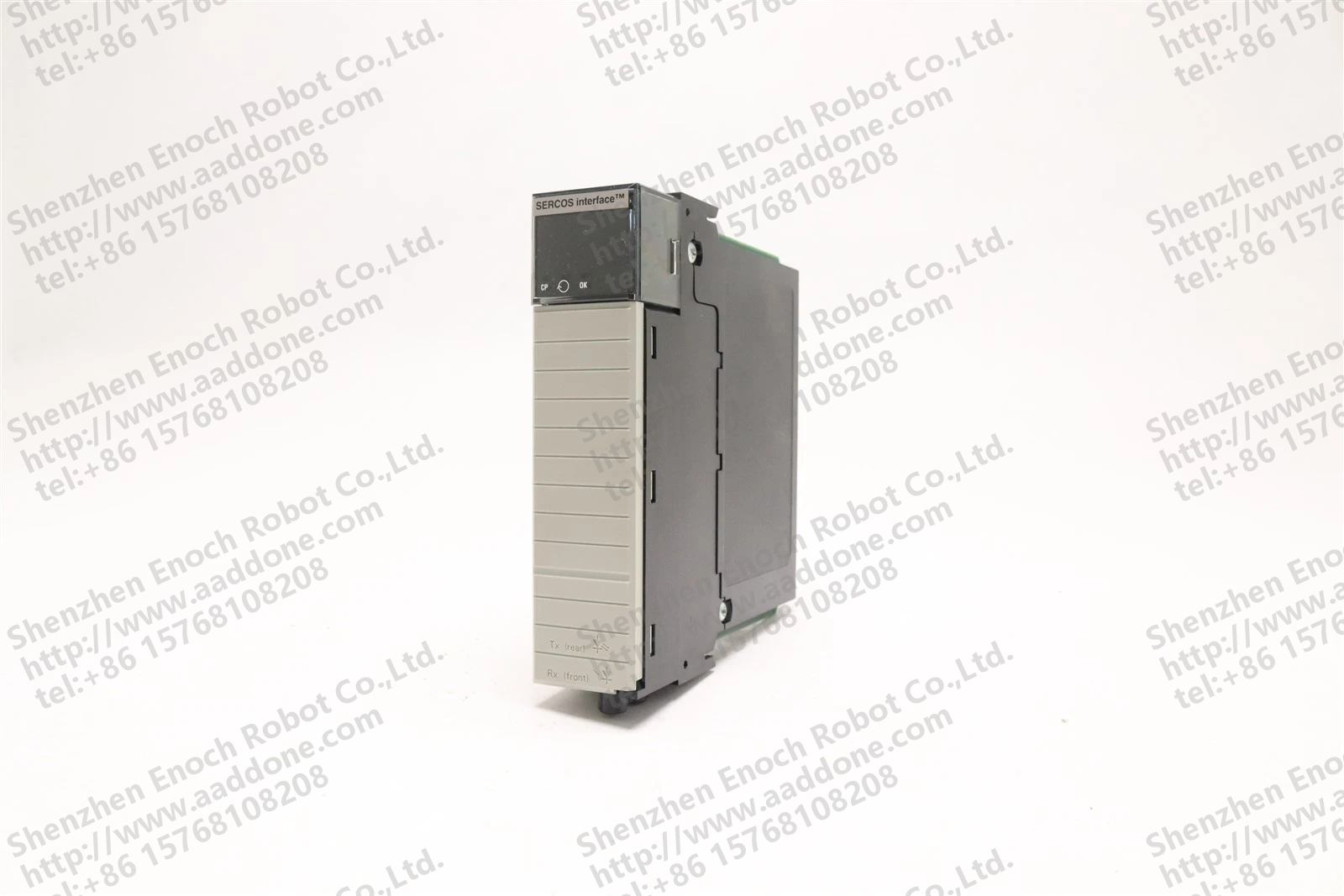

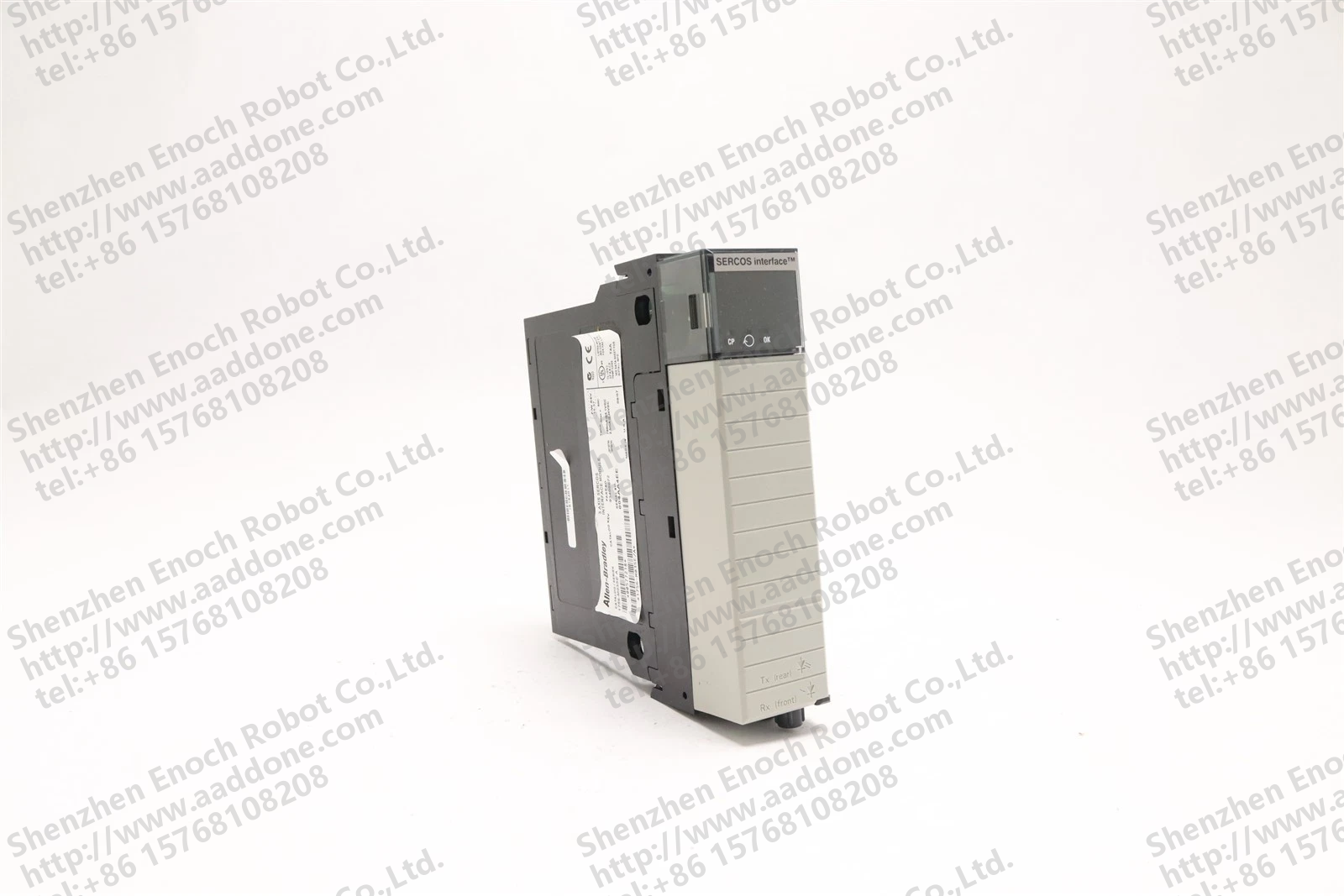

ALLEN BRADLEY AXIS SERCOS INTERFACE MODULE SERIES A REV 15.37 1756-M03SE

The Allen-Bradley 1756-M03SE A Axis Sercos Interface Module Series A Rev 15.37 is a high-performance industrial automation component designed for seamless integration into complex control systems. This module facilitates precise motion control by enabling communication between programmable logic controllers (PLCs) and servo drives via the Sercos interface protocol.

• Key Features:
• Supports up to three axes of motion control
• Utilizes the Sercos III communication protocol for high-speed, deterministic data transfer
• Compact design for easy installation in PLC chassis
• Robust construction suitable for demanding industrial environments
• Integrated status indicators for quick diagnostics
• Compatible with Allen-Bradley ControlLogix and CompactLogix systems

Specifications:

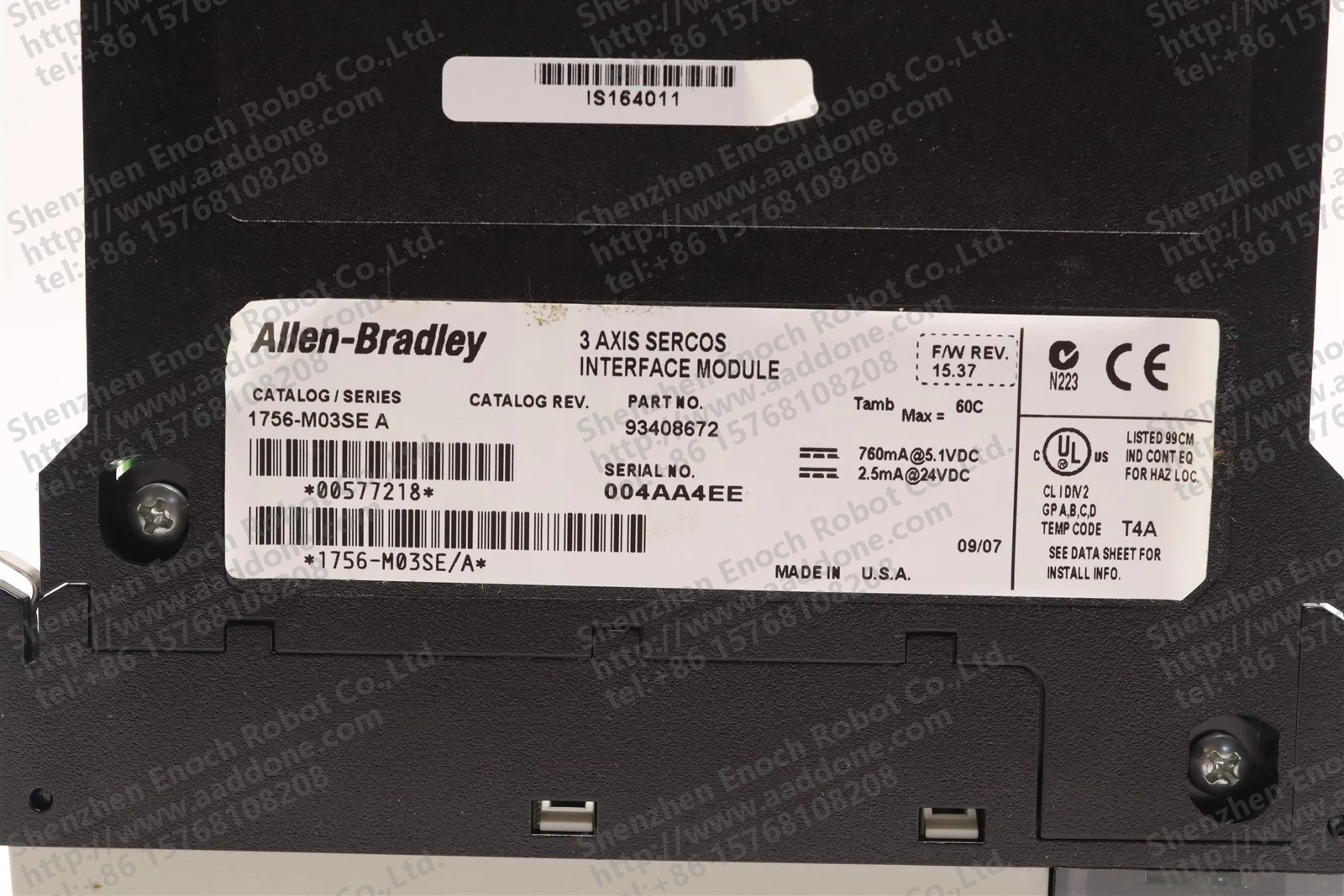

• Catalog Number: 1756-M03SE A
• Firmware Revision: 15.37
• Part Number: 93408672
• Serial Number: 004AA4EE
• Operating Temperature Range: -25°C to +60°C
• Power Requirements: 760mA @ 5.1VDC, 2.5mA @ 24VDC
• Manufactured in the USA

Applications:

This interface module is ideal for applications requiring precise motion control in various industrial settings, including:

• Automated assembly lines
• Robotics and material handling systems
• Machine tools and CNC equipment
• Conveyor systems
• Printing and packaging machinery

Benefits:

• Enhanced system performance through reliable Sercos communication
• Improved productivity with accurate and synchronized motion control
• Reduced downtime due to robust design and easy maintenance
• Scalable solution for expanding automation needs
• Comprehensive diagnostic capabilities for efficient troubleshooting
