MOXA 以太网开关 EDS-316

The MOXA EDS-316 Industrial Ethernet Switch is a robust and reliable networking solution designed for demanding industrial environments. This 16-port switch offers high performance and durability, making it ideal for applications in industrial automation, process control, and other critical systems.

Product Features:

• 16 RJ45 Ports supporting 10/100Base-TX Ethernet connections
• Dual Power Inputs (PWR1 and PWR2) for redundant power supply and enhanced reliability
• Compact and Rugged Design with a durable metal casing suitable for harsh industrial conditions
• LED Indicators for power, link/activity, and fault status on each port
• Wide Operating Temperature Range (-40°C to 75°C) for reliable operation in extreme environments
• Supports DIP Switch Configuration for flexible setup options

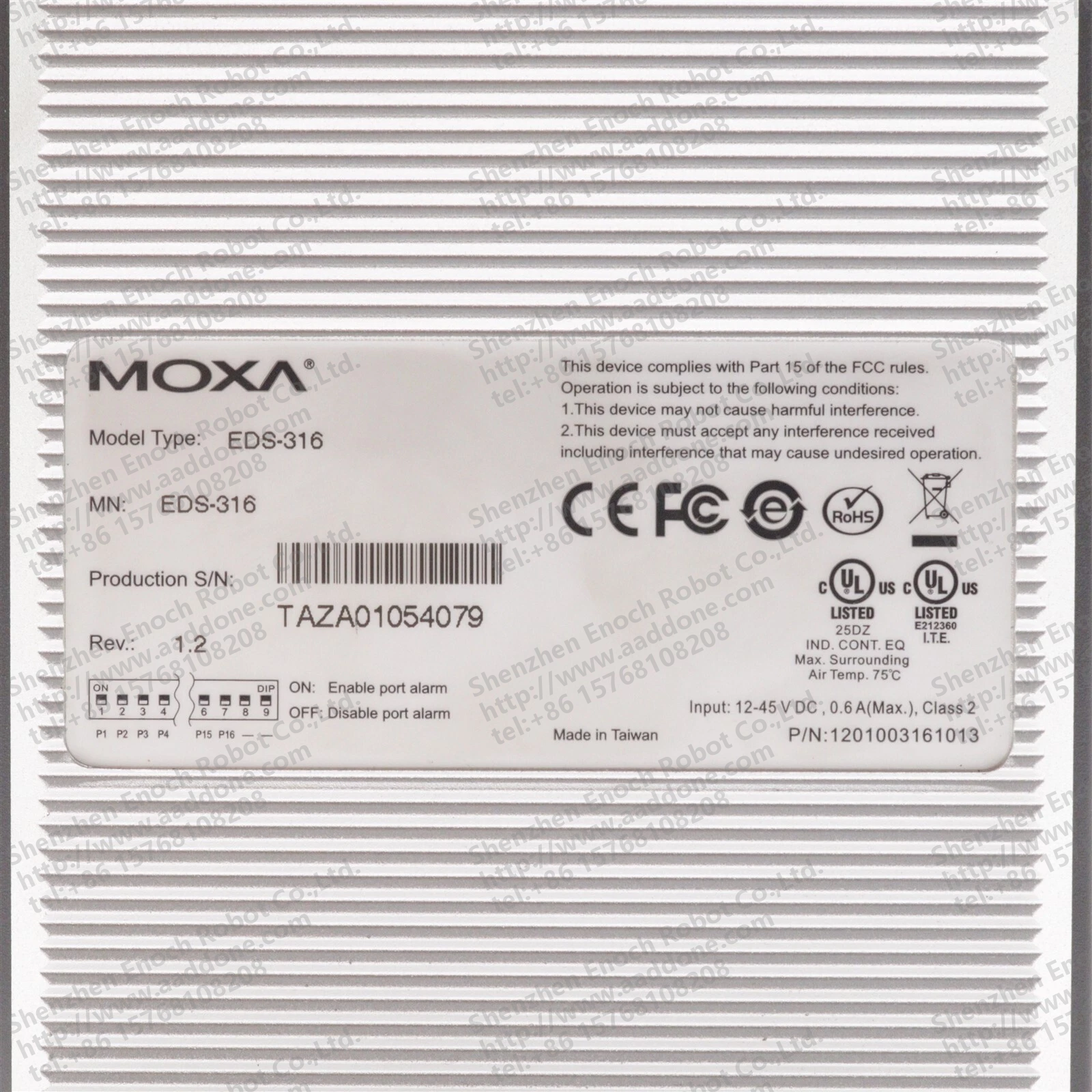

• Complies with FCC Part 15, CE, UL, and RoHS Standards ensuring safety and environmental compliance

Specifications:

• Model Number: EDS-316
• Input Voltage: 12-45 VDC (0.6A Max.)
• Power Consumption: Typically 3.6W
• Dimensions: 100mm x 80mm x 25mm (LxWxH)
• Weight: Approximately 0.5kg
• Operating Temperature: -40°C to 75°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% (non-condensing)

Applications:

The MOXA EDS-316 is perfect for a wide range of industrial networking applications, including:

• Industrial Automation Systems
• Process Control Networks
• SCADA Systems
• Building Automation
• Transportation Systems
• Energy Management Systems
• Any environment requiring a reliable and durable Ethernet switch

Benefits:

• Enhanced Reliability with dual power inputs and wide temperature range
• Easy Installation and Configuration with DIP switches and clear LED indicators
• Future-Proof Connectivity supporting both 10Mbps and 100Mbps speeds
• Cost-Effective Solution providing high performance at an affordable price point
• Comprehensive Compliance meeting international safety and environmental standards
