IFM 电子压力监测传感器 PN7001

The IFM PN7001 electronic pressure monitoring sensor is a robust and precise industrial component designed for reliable pressure measurement in demanding environments. This high-quality sensor, manufactured by IFM Electronic in Germany, features a sleek stainless steel body with a G 1/4 threaded port for easy integration into various systems.

• Key Features:
• Digital display for real-time pressure readings

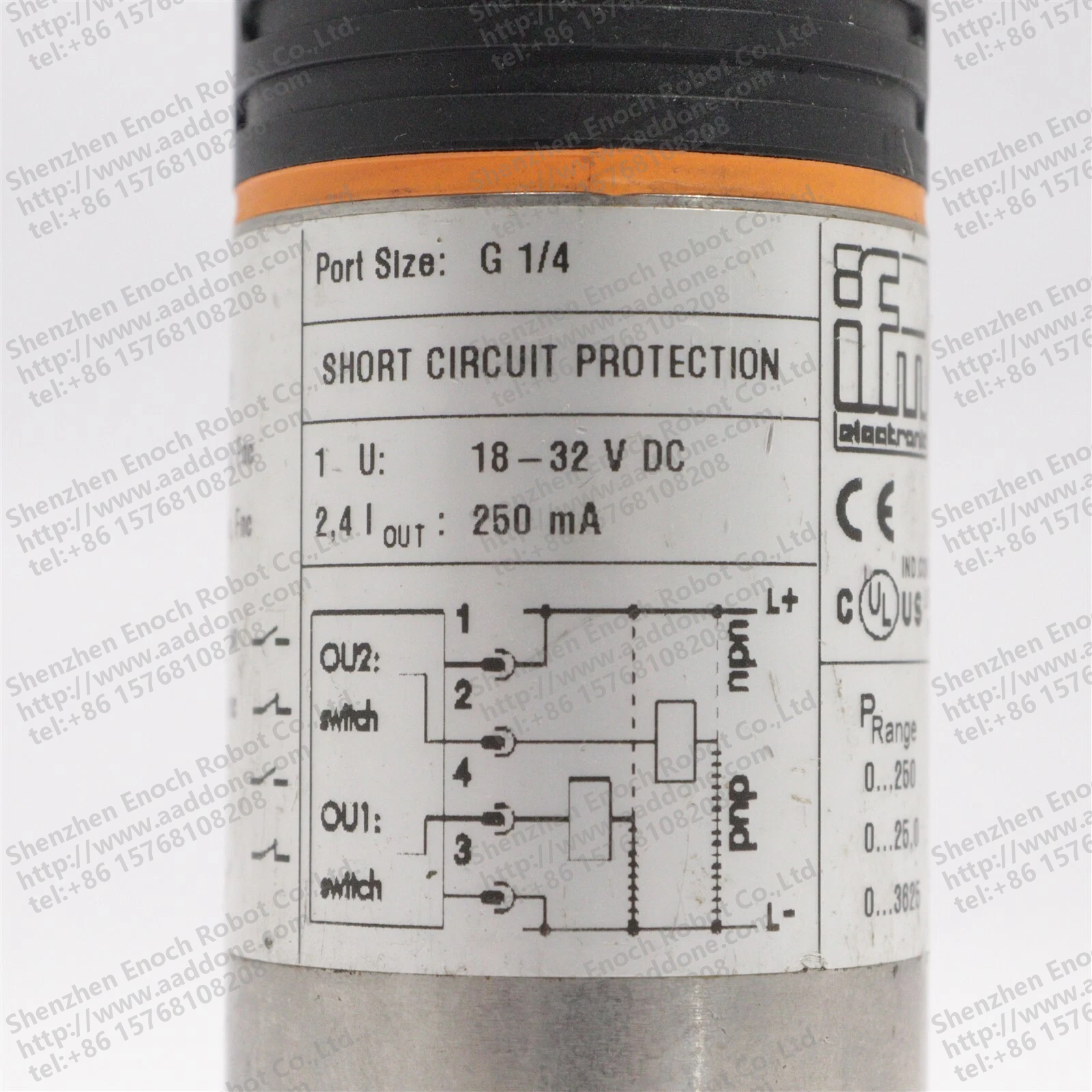

• Short circuit protection for enhanced durability
• Wide pressure range: 0...250 bar (0...3625 PSI)
• IP67 rating for excellent protection against dust and water ingress
• Complies with CE and UL standards for safety and reliability
• Supports multiple output options including switch and current signals

Specifications:

• Port Size: G 1/4
• Voltage Range: 18-32 V DC
• Output Current: 250 mA

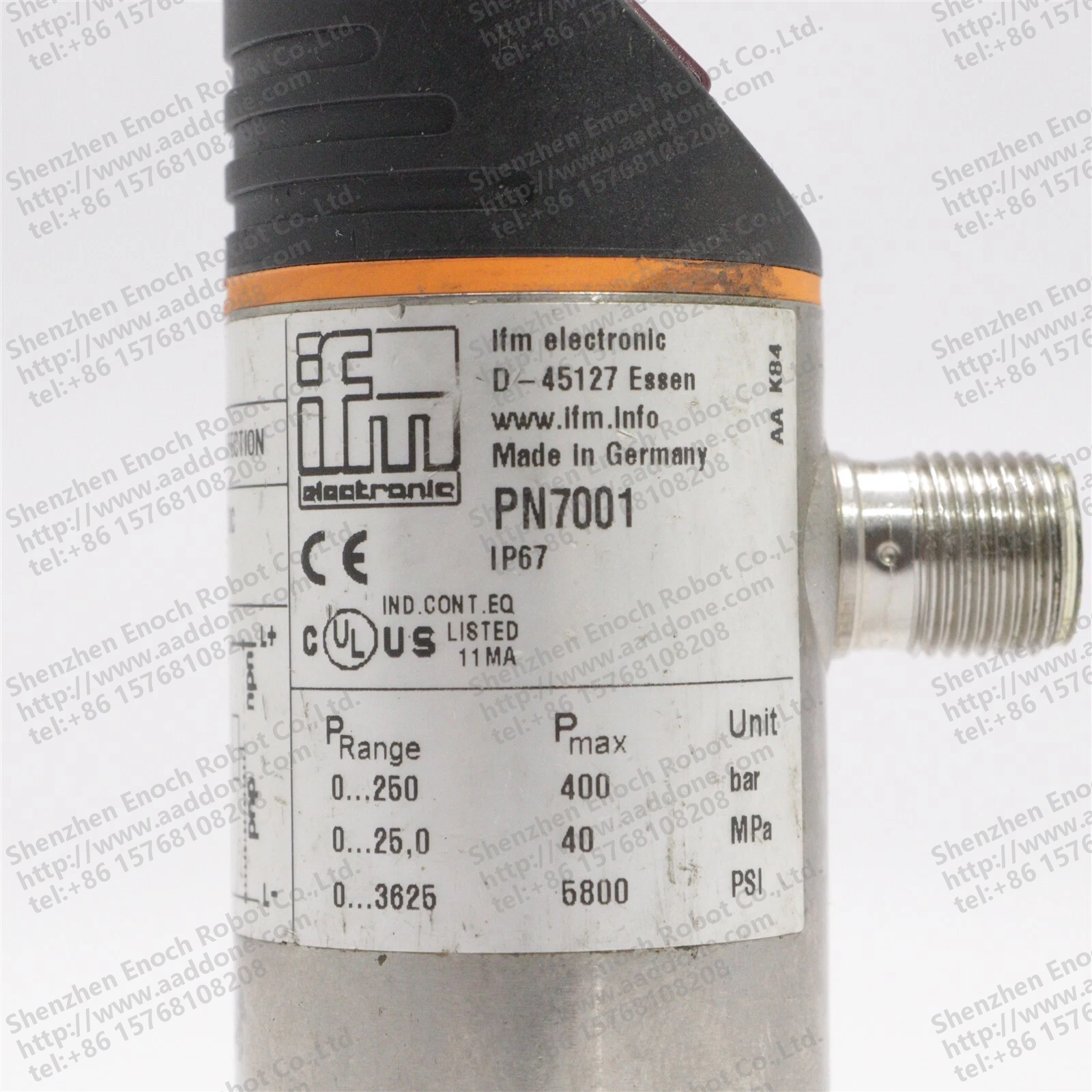

• Pressure Ranges: 0...250 bar, 0...25.0 MPa, 0...3625 PSI
• Maximum Pressure: 400 bar, 40 MPa, 5800 PSI
• Protection Class: IP67

Applications:

The IFM PN7001 is ideal for use in various industrial applications, including hydraulic systems, pneumatic equipment, and process control environments. Its durable construction and wide operating range make it suitable for both commercial and industrial settings where precise pressure monitoring is critical.

Benefits:

• High accuracy and reliability for consistent performance
• Easy installation and integration into existing systems
• Long-lasting design reduces maintenance and replacement costs
• Comprehensive protection ensures safe operation in harsh conditions
• Flexible output options accommodate diverse system requirements
