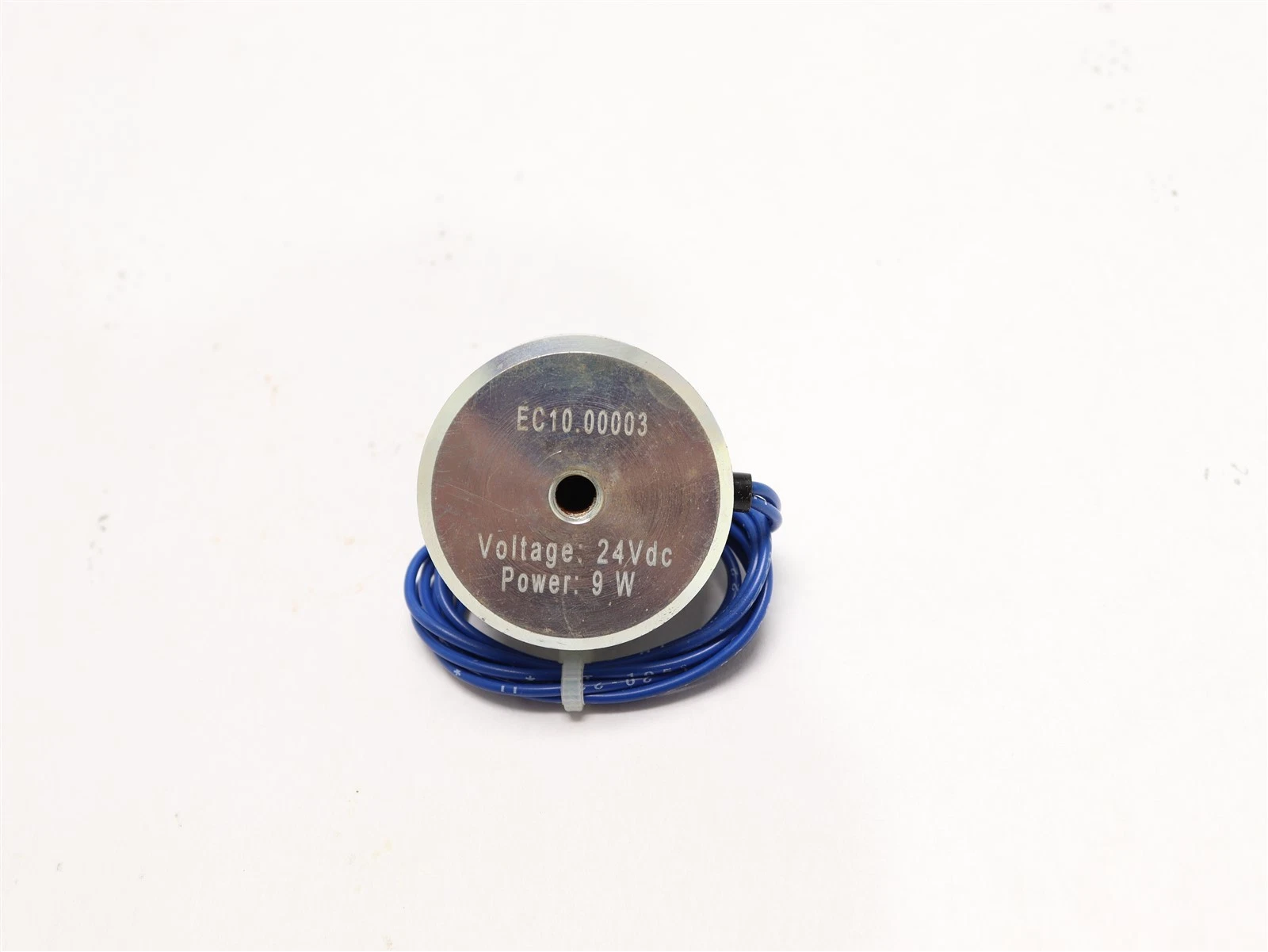

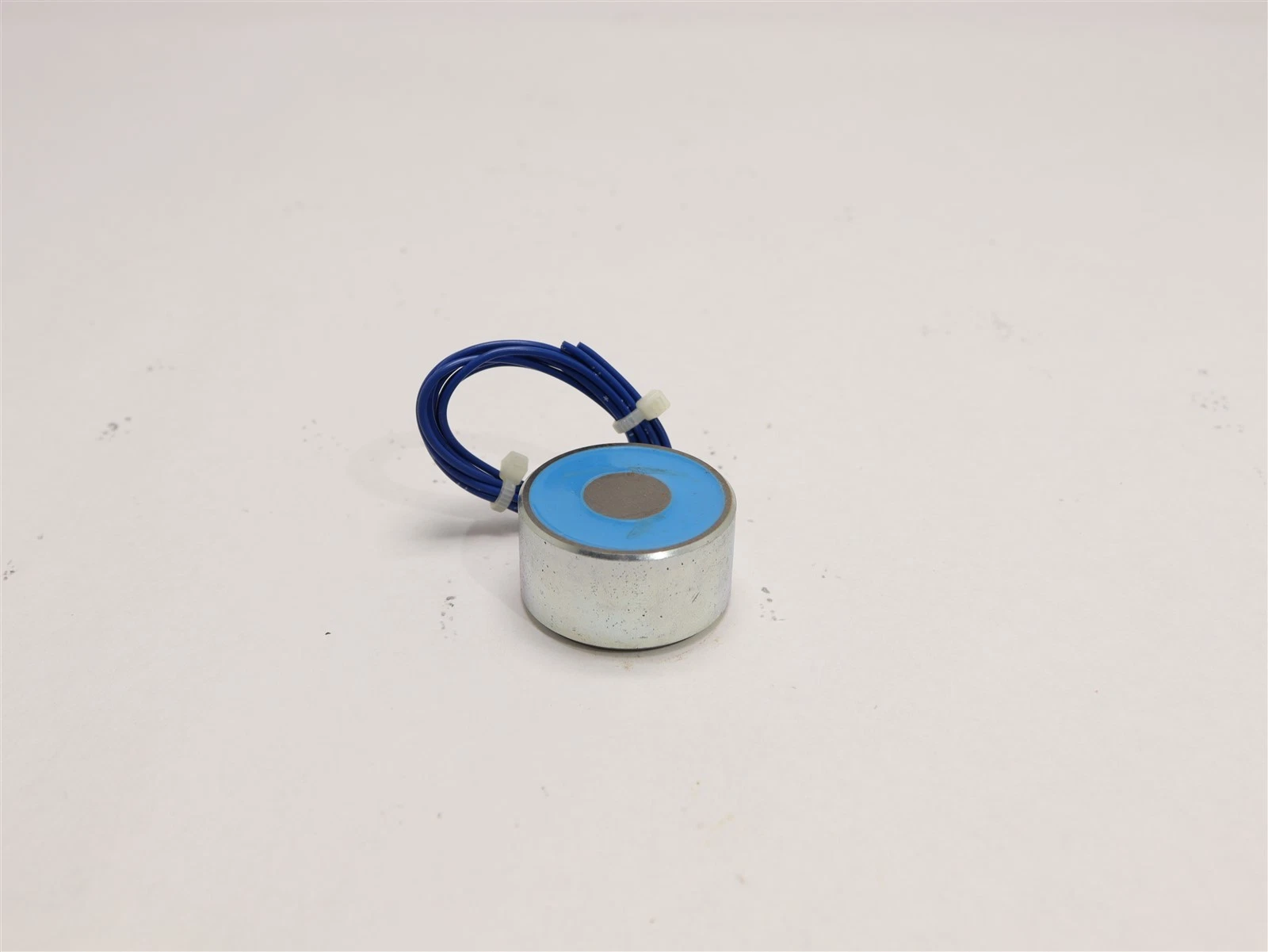

SPD ELECTROMAGNET 24VDC 36KG Load Tested EC10.00003

SPD ELECTROMAGNET 24VDC 36KG is a robust and reliable industrial component designed for demanding applications. This electromagnet features a sleek cylindrical design with a durable metallic casing, ensuring longevity and performance in various environments.

• Key Features:
• Rated Voltage: 24VDC
• Power Consumption: 9W
• Maximum Load Capacity: 36KG
• Tested and Verified Load Capacity
• Blue Insulated Wiring for Easy Integration
• Compact and Lightweight Design
• High Efficiency and Low Heat Generation

Specifications:

• Model Number: EC10.00003
• Material: High-Quality Metal and Insulation
• Operating Temperature Range: -20°C to +80°C
• Weight: Approximately 250g
• Dimensions: Diameter 50mm, Height 30mm

Applications:

This electromagnet is ideal for use in automated systems, industrial machinery, and control panels where precise and reliable magnetic actuation is required. It is commonly used in applications such as:

• Automated Doors and Gates
• Material Handling Systems
• Industrial Automation Equipment
• Security Systems
• Medical Devices

Benefits:

• High Load Capacity: Capable of handling up to 36KG loads
• Energy Efficient: Low power consumption of 9W
• Reliable Performance: Tested and verified for consistent operation
• Easy Installation: Compact design and blue insulated wiring for straightforward integration
• Durable Construction: Built to withstand harsh industrial conditions
