ALLEN BRADLEY POWERFLEX 40 带网络 22B-A5P0N114A

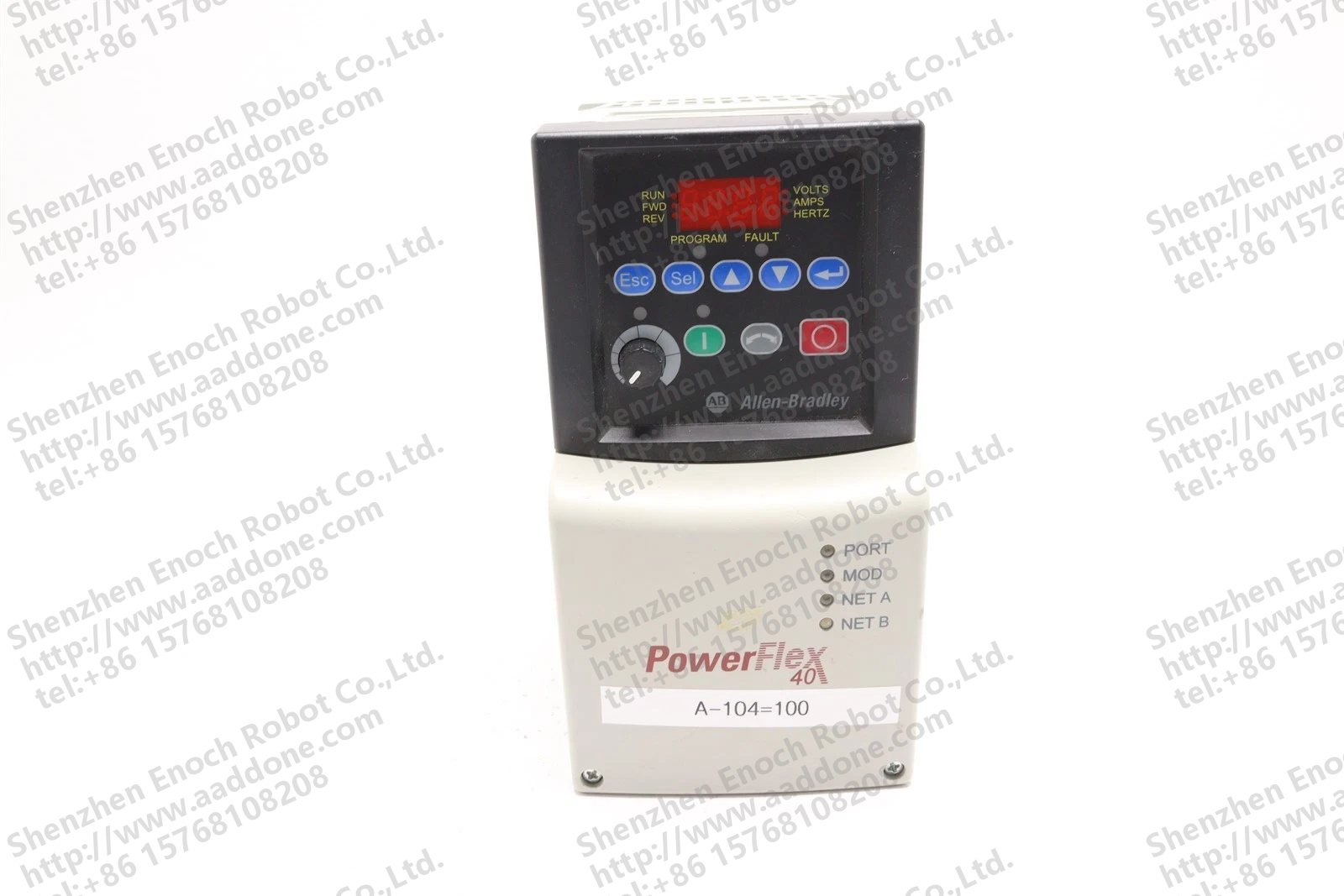

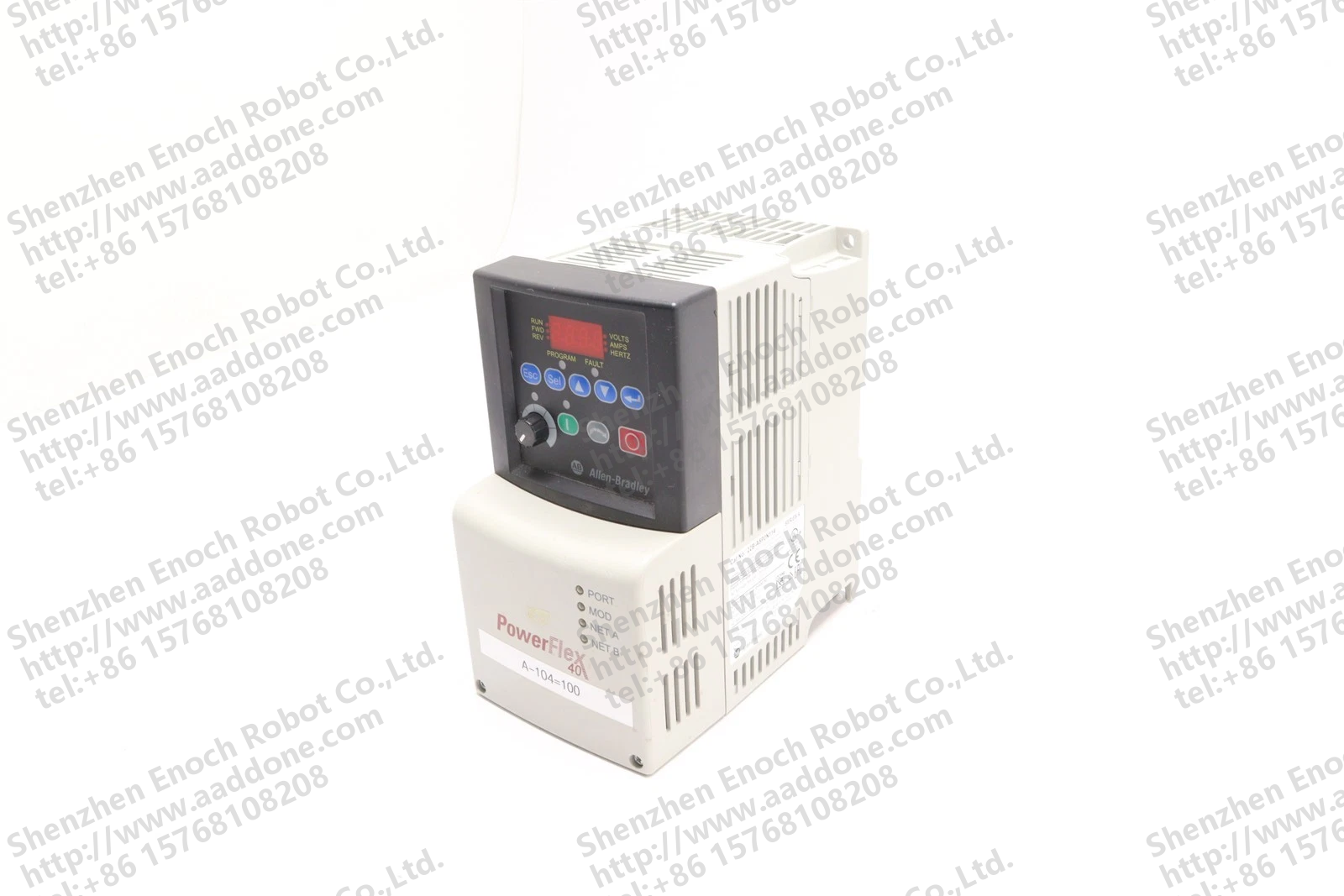

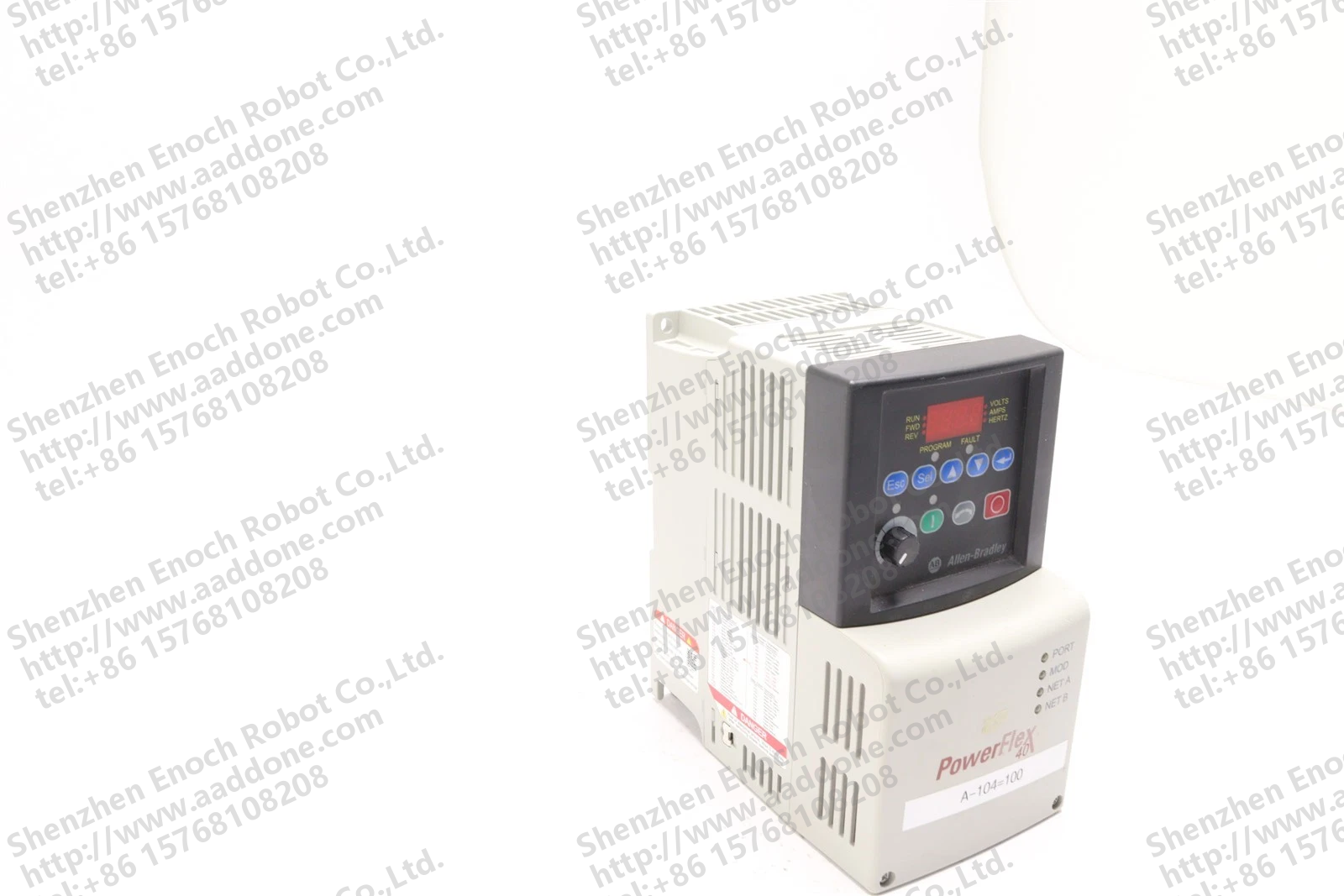

Allen-Bradley PowerFlex 40 AC Drive (Model 22B-A5P0N114/A) is a robust and versatile industrial motor control solution designed for precise speed and torque management in a wide range of applications. This Series A unit features a user-friendly interface with a clear digital display and intuitive control buttons, ensuring easy setup and operation.

Key Features:

• Network Connectivity: Equipped with built-in network capabilities for seamless integration into industrial automation systems.
• Digital Display: Bright red LED screen provides real-time monitoring of critical parameters such as voltage, current, frequency, and fault codes.
• Intuitive Controls: Includes a rotary knob and function buttons for straightforward parameter adjustments and program selection.
• Compact Design: Space-saving form factor with efficient heat dissipation through optimized ventilation slots.
• Wide Input Range: Compatible with 1-phase input (200-240V, 48-63 Hz) and delivers 3-phase output (0-400 Hz).
• Motor Compatibility: Supports motors up to 0.75kW (1.0 HP) with continuous current rating of 12.0 Amps.
• Protection Rating: IP20/Open-Type design suitable for ambient temperatures between -10°C to 50°C.
• Compliance & Certification: UL Listed and CE Certified for safety and reliability in industrial environments.

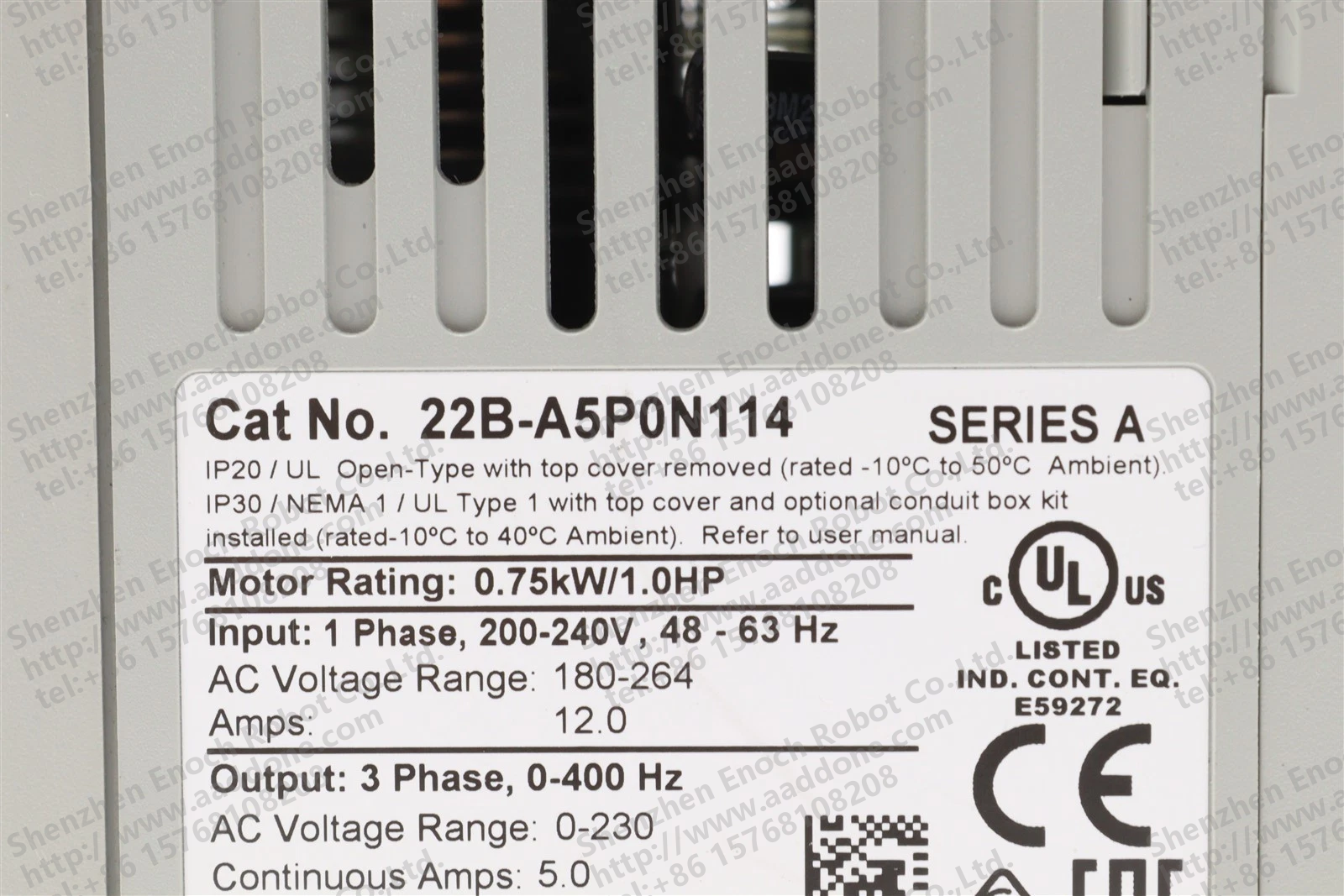

Specifications:

• Model Number: 22B-A5P0N114/A
• Series: A
• Input Voltage: 1 Phase, 200-240V, 48-63 Hz
• Output Voltage: 3 Phase, 0-400 Hz
• Motor Rating: 0.75kW / 1.0 HP
• Continuous Current: 12.0 Amps
• Protection Class: IP20/Open-Type
• Operating Temperature: -10°C to 50°C
• Dimensions: Compact and designed for easy installation in control panels or machinery.

Applications:

• General industrial automation systems
• Motion control for conveyor belts, pumps, fans, and compressors
• Process control in manufacturing and production lines
• Energy-efficient motor speed regulation
• Integration with PLCs and SCADA systems for advanced automation

Benefits:

• Enhanced Efficiency: Optimizes motor performance, reducing energy consumption and operational costs.
• Reliability: Built to withstand demanding industrial conditions with durable construction and certifications.
• Scalability: Easily integrates into existing systems and supports future expansions.
• User-Friendly Interface: Simplifies programming and troubleshooting with clear displays and controls.
• Cost-Effective Solution: Provides high performance at an affordable price point compared to newer models.
