TOLOMATIC SERVOWELD FANUC ACTUATOR SERVO ACTUATOR 6 STROKE GSWA04-MV23 27500049

The TOLOMATIC SERVOWELD FANUC ACTUATOR, model GSWA04-MV23 (Part No. 27500049), is a high-performance servo actuator designed for demanding industrial automation and motion control applications. This robust linear actuator features a 6-inch stroke length, delivering precise and reliable linear motion with exceptional force output.

\n
• Key Features:
\n
• 6-inch stroke length for extended linear travel
\n

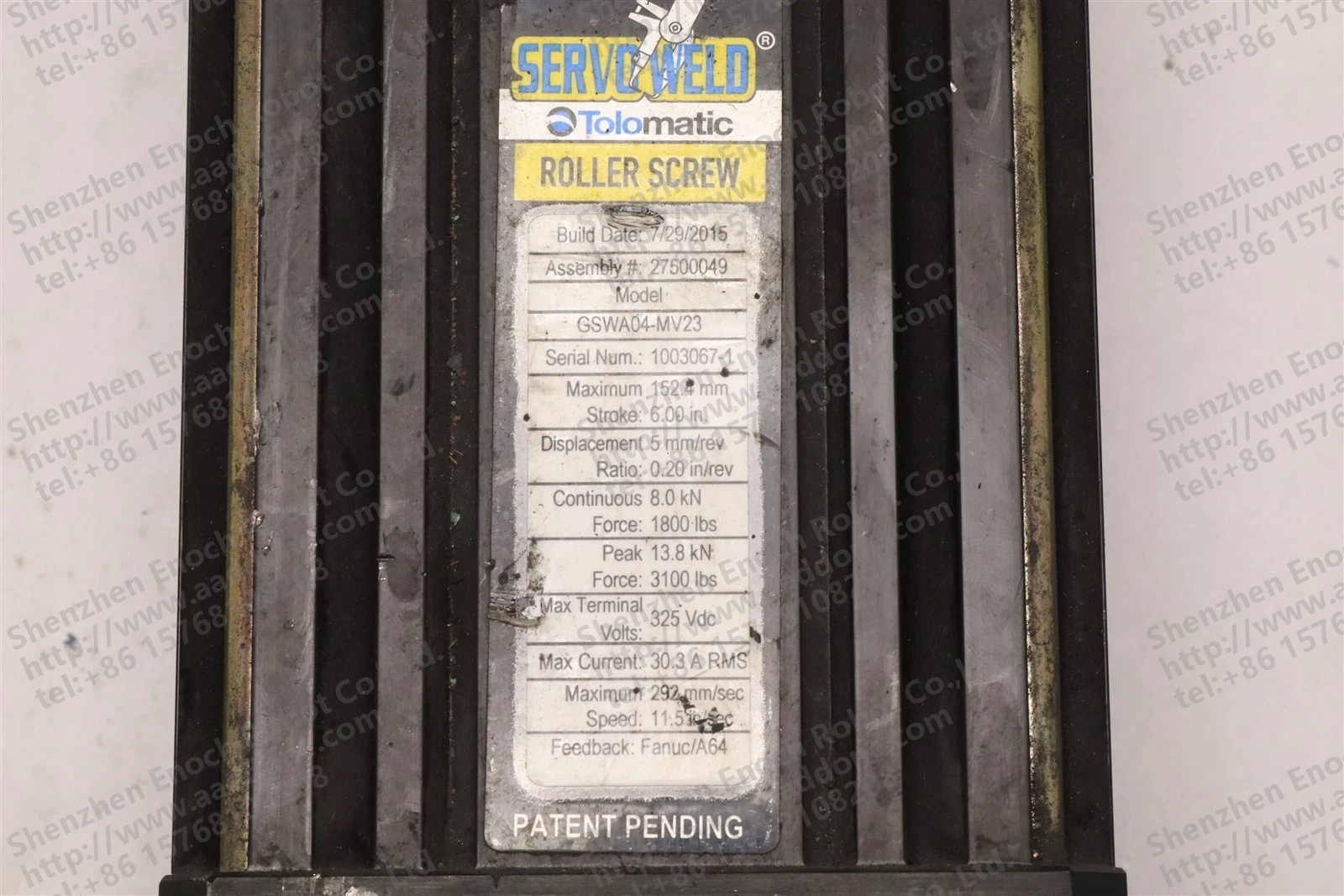

• Maximum continuous force of 8.0 kN (1800 lbs) and peak force of 13.8 kN (3100 lbs)
\n
• Displacement of 5 mm per revolution (0.20 in/rev)
\n
• Rated voltage of 325 Vdc and maximum current of 30.3 A RMS
\n
• Maximum speed of 292 mm/sec (11.5 in/sec)
\n
• Fanuc feedback system for precise position control
\n
• Durable construction with heat dissipation fins for reliable operation
\li>Comprehensive safety warnings and certifications\n

This servo actuator is ideal for applications requiring precise linear positioning, such as robotic welding, material handling, and automated assembly lines. The combination of high force output, fast speed, and precise control makes it suitable for a wide range of industrial processes where accuracy and reliability are critical.

Manufactured by Tolomatic, a trusted name in industrial automation, this actuator combines advanced engineering with proven performance. The unit is shown in excellent condition, ready for integration into your existing automation systems or as part of a new installation. Its compact design allows for easy integration into various machine setups while providing the power and precision needed for complex operations.
