Product Description

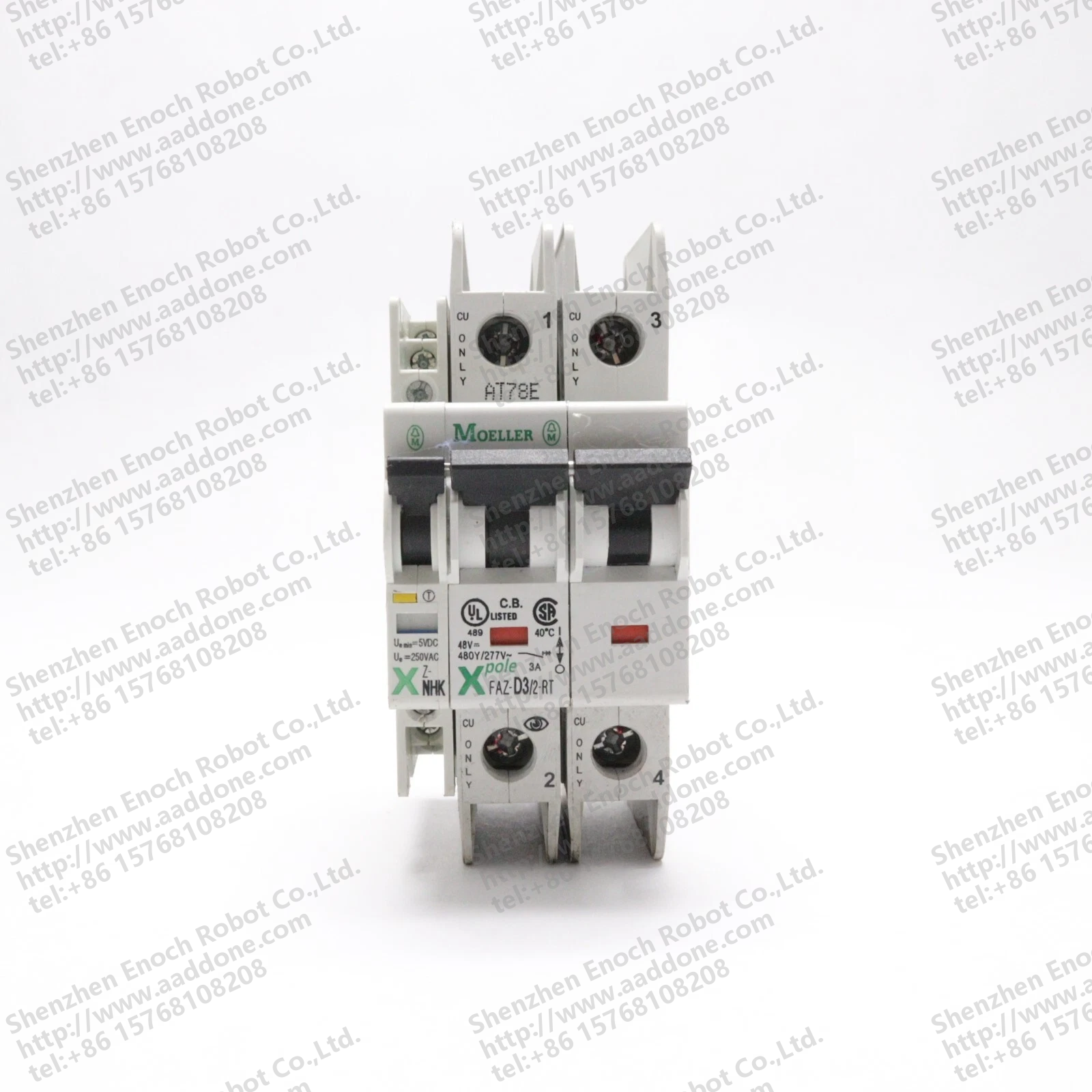

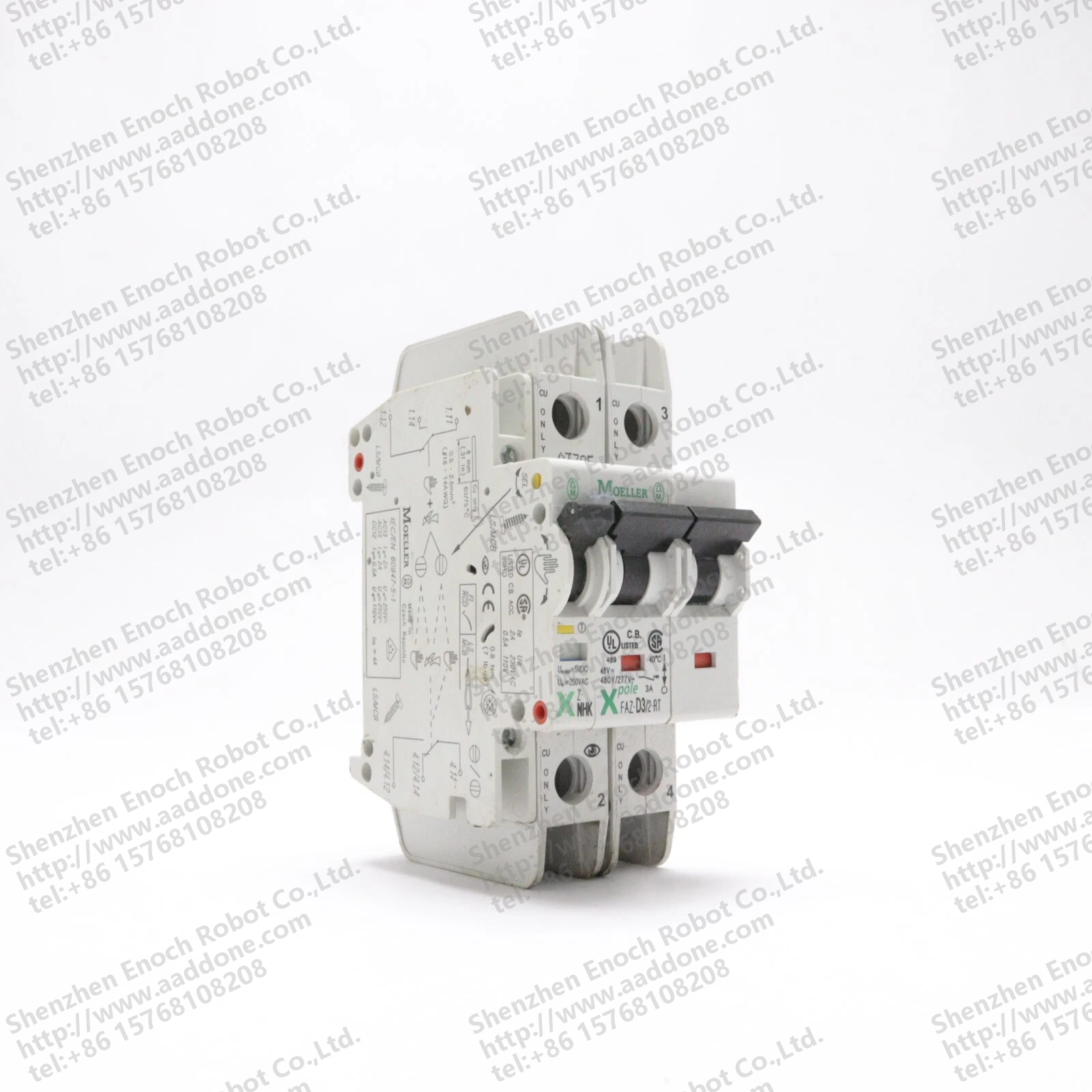

The MOELLER FAZ-D3/2-RT is a high-performance 2-pole circuit breaker designed for robust electrical protection in commercial and industrial applications. This compact unit features a durable white housing with clearly marked terminals and operating handles, ensuring ease of installation and maintenance.
- Key Features:
- Rated at 3 Amps with a voltage capacity of 480V/277V~
- Interrupting rating of 10kA at 480V and 96V in series
- Current limiting technology (HACR SWD) for enhanced safety
- UL Listed and CSA Certified for compliance with international standards
- Temperature rating of 40°C for reliable operation in demanding environments
- Complies with EN/IEC 60947-2 standards
- Compact design suitable for panel mounting
Specifications:
- Model: FAZ-D3/2-RT
- Poles: 2
- Amps: 3
- Voltage: 480V/277V~
- Interrupting Capacity: 10kA
- Temperature Rating: 40°C
- Standards Compliance: UL Listed, CSA Certified, EN/IEC 60947-2
- Manufactured in Spain
Applications:
This circuit breaker is ideal for protecting electrical circuits in various industrial settings, including manufacturing plants, data centers, and commercial buildings. Its current-limiting capabilities make it particularly suitable for applications requiring rapid fault interruption to prevent damage to sensitive equipment.
Benefits:
- Enhanced safety through advanced current-limiting technology
- Reliable performance in high-demand industrial environments
- Compliance with international safety standards for peace of mind
- Compact design for easy integration into existing electrical systems
- Durable construction for long-lasting service life
