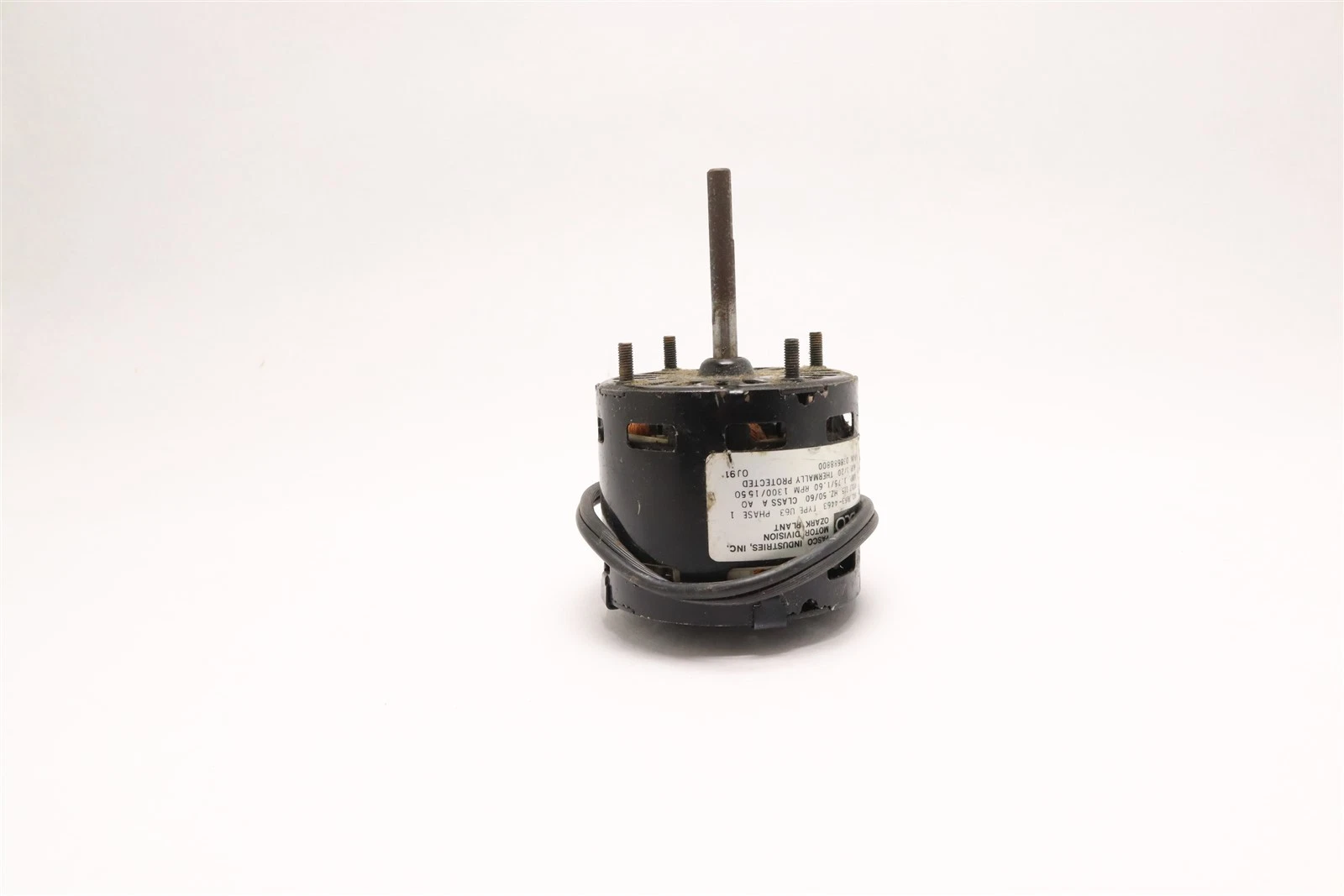

FASCO Fan Motor 7163-4463 115V 60HZ 1550RPM 038688800

The FASCO 7163-4463 115 Volt 60Hz 1550RPM 038688800 is a high-performance industrial motor designed for demanding commercial and industrial applications. This robust motor features a durable black casing with visible copper windings, ensuring reliable operation in various environments.

• Key Features:
• Rated at 115 Volts and 60Hz for compatibility with standard industrial power supplies.
• Operates at 1550 RPM, providing efficient and consistent performance.
• Thermally protected to prevent overheating and extend the motor's lifespan.
• Class A insulation for enhanced safety and reliability.
• Phase 1 design for straightforward integration into existing systems.
• Part Number: 038688800 for easy identification and replacement.

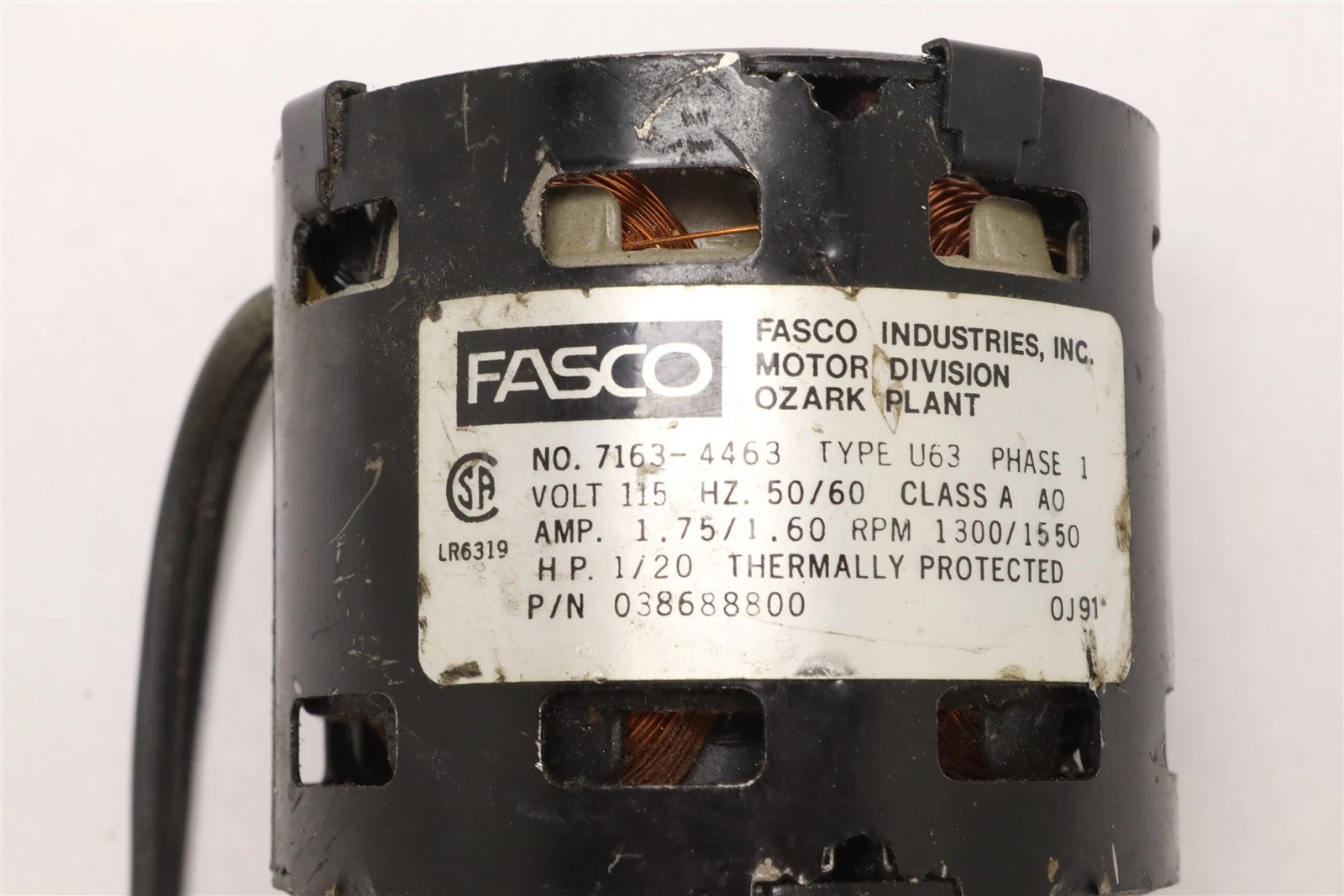

Specifications:

• Voltage: 115V
• Frequency: 60Hz
• RPM: 1550
• Amps: 1.75/1.60
• Horsepower: 1/20
• Insulation Class: A
• Protection: Thermally Protected
• Type: U63
• Phase: 1

Applications:

This versatile motor is ideal for a wide range of industrial applications, including ventilation systems, conveyor belts, pumps, and other machinery requiring reliable and efficient power. Its compact design and durable construction make it suitable for both new installations and retrofits in existing equipment.

Benefits:

• High efficiency and energy savings.
• Long-lasting performance with minimal maintenance.
• Compliant with industry standards for safety and reliability.
• Cost-effective solution for industrial automation needs.
