SICK INTELLIFACE SAFTEY 继电器 UE 10-4XT2D2 6024919

The SICK INTELLIFACE SAFETY继电器 UE 10-4XT2D2 6024919 is a high-performance industrial relay designed for safety-critical applications. This robust device features a compact and durable yellow housing, ensuring reliable operation in demanding environments.

Product Features:

• AC/DC 24 V -15%/ +10% Voltage Rating
• Response Time: < 40 ms
• Operating Temperature Range: -25 °C to +55 °C
• Power Consumption: 1.5 W / 2.7 VA
• VDE 0110 Uimp. 4 kV/2
• UL Listed and CE Certified
• Two Output Contacts (K1 and K2)
• Compact DIN Rail Mount Design

Specifications:

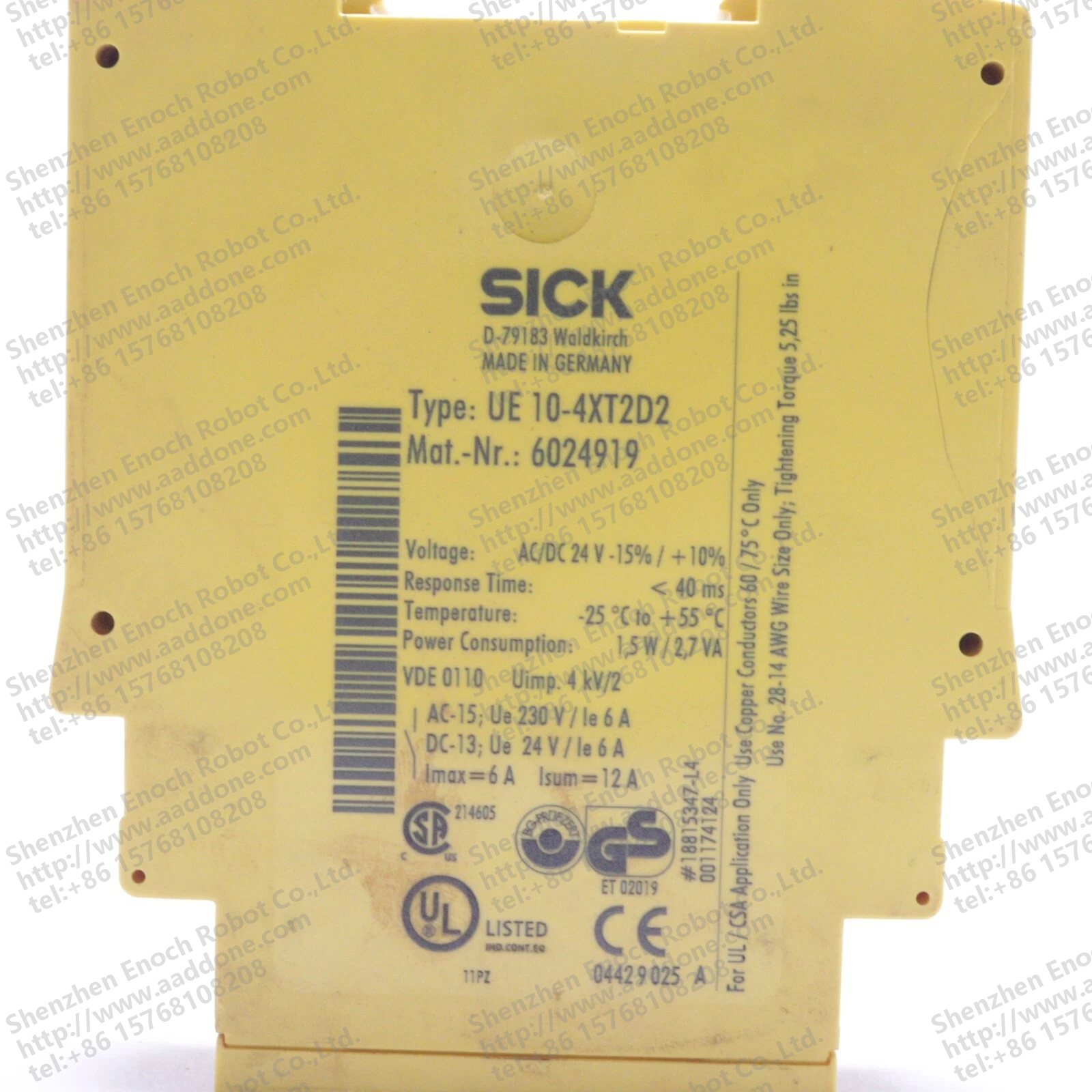

• Type: UE 10-4XT2D2
• Material Number: 6024919
• Manufactured in Germany by SICK
• Use Copper Conductors 60 / 75 °C Only
• Tightening Torque: 5.25 lbs in
• Wire Size: 28-14 AWG

Applications:

• Industrial Automation Systems
• Machinery Safety Controls
• Process Control Applications
• Emergency Stop Circuits
• Interlock Systems
• Machine Tool Safety

Benefits:

• Enhanced Safety Performance with Fast Response Times
• Reliable Operation in Harsh Industrial Environments
• Compliance with International Safety Standards
• Easy Installation on DIN Rails
• Long Service Life with Durable Construction
• Cost-effective Solution for Safety-Critical Applications
