FANUC AC SERVO MOTOR 3000RPM 462V 3PHASE A06B-0249-B5000100

The FANUC AC Servo Motor, model A06B-0249-B500#0100, is a high-performance industrial motor designed for precision motion control in demanding automation applications. This robust motor delivers exceptional torque and speed capabilities, making it ideal for use in CNC machines, robotic systems, and other automated manufacturing processes.

Key Features:

• High Torque Output: Provides 22 Nm of stall torque for powerful performance in heavy-duty applications.
• High-Speed Operation: Capable of reaching up to 3000 RPM for fast and efficient operation.
• Three-Phase Power: Operates on 462V, 3-phase power supply for reliable and consistent performance.
• Durable Construction: Built with a rugged cast iron housing that withstands harsh industrial environments.
• Advanced Cooling System: Equipped with an effective cooling mechanism to maintain optimal operating temperatures during extended use.
• IP67 Protection Rating: Offers superior protection against dust and water ingress, ensuring reliable operation in challenging conditions.
• Compact Design: Features a space-saving form factor that allows for easy integration into existing machinery setups.
\n

Specifications:

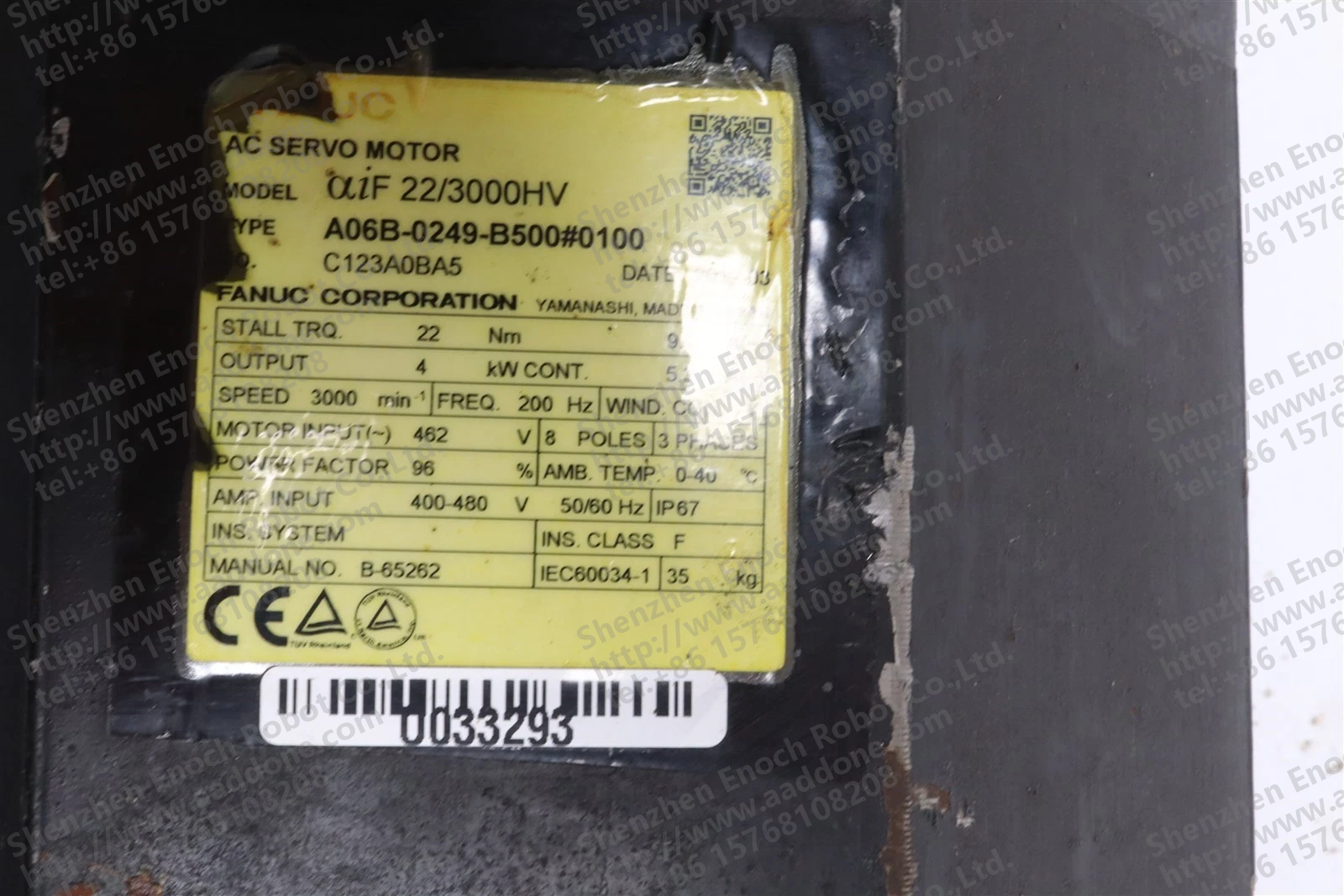

• Model: A06B-0249-B500#0100
• Type: AC Servo Motor
• Output Power: 4 kW continuous / 5.3 kW intermittent
• Speed: 3000 RPM
• Voltage: 462V
• Frequency: 200 Hz
• Phases: 3 Phase
• Protection Rating: IP67
• Weight: Approximately 35 kg
• Insulation Class: F
• Ambient Temperature Range: 0°C to 40°C

Applications:

• CNC Machining Centers
• Robotic Arms and Manipulators
• Automated Assembly Lines
• Material Handling Systems
• Printing and Packaging Machinery
• Medical Equipment Automation
• Textile Machinery

Benefits:

• Enhanced Precision: Delivers accurate and repeatable motion control for improved product quality and consistency.
• Increased Productivity: High-speed operation and powerful torque output enable faster cycle times and higher throughput.
• Reliability: Designed for long-term durability and minimal maintenance requirements, reducing downtime and operational costs.
• Energy Efficiency: Optimized design minimizes energy consumption while maintaining high performance levels.
• Compatibility: Easily integrates with FANUC control systems and other compatible automation equipment for seamless operation.
• Cost-Effective Solution: Offers a reliable and efficient alternative to newer models, providing excellent value for industrial applications.
