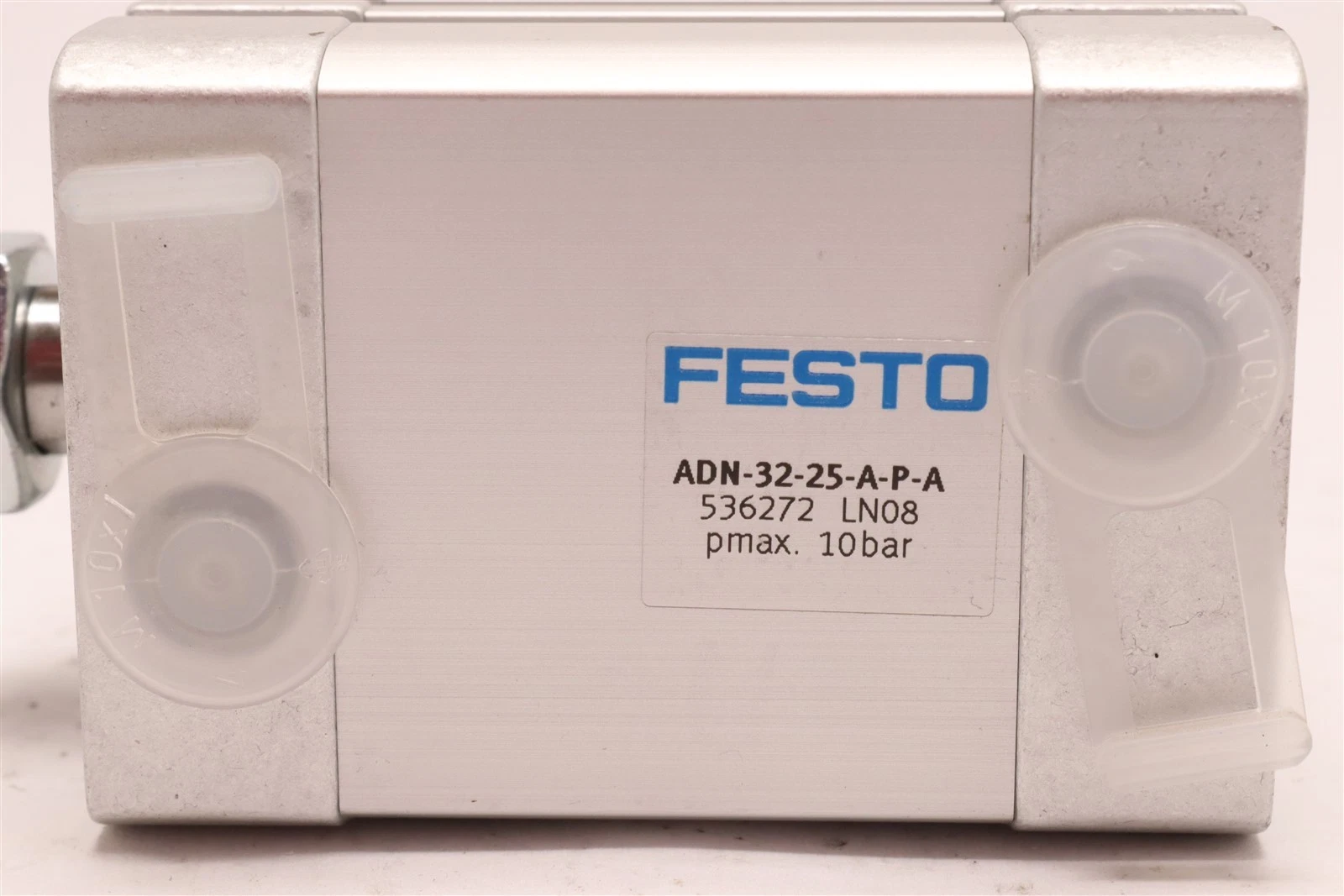

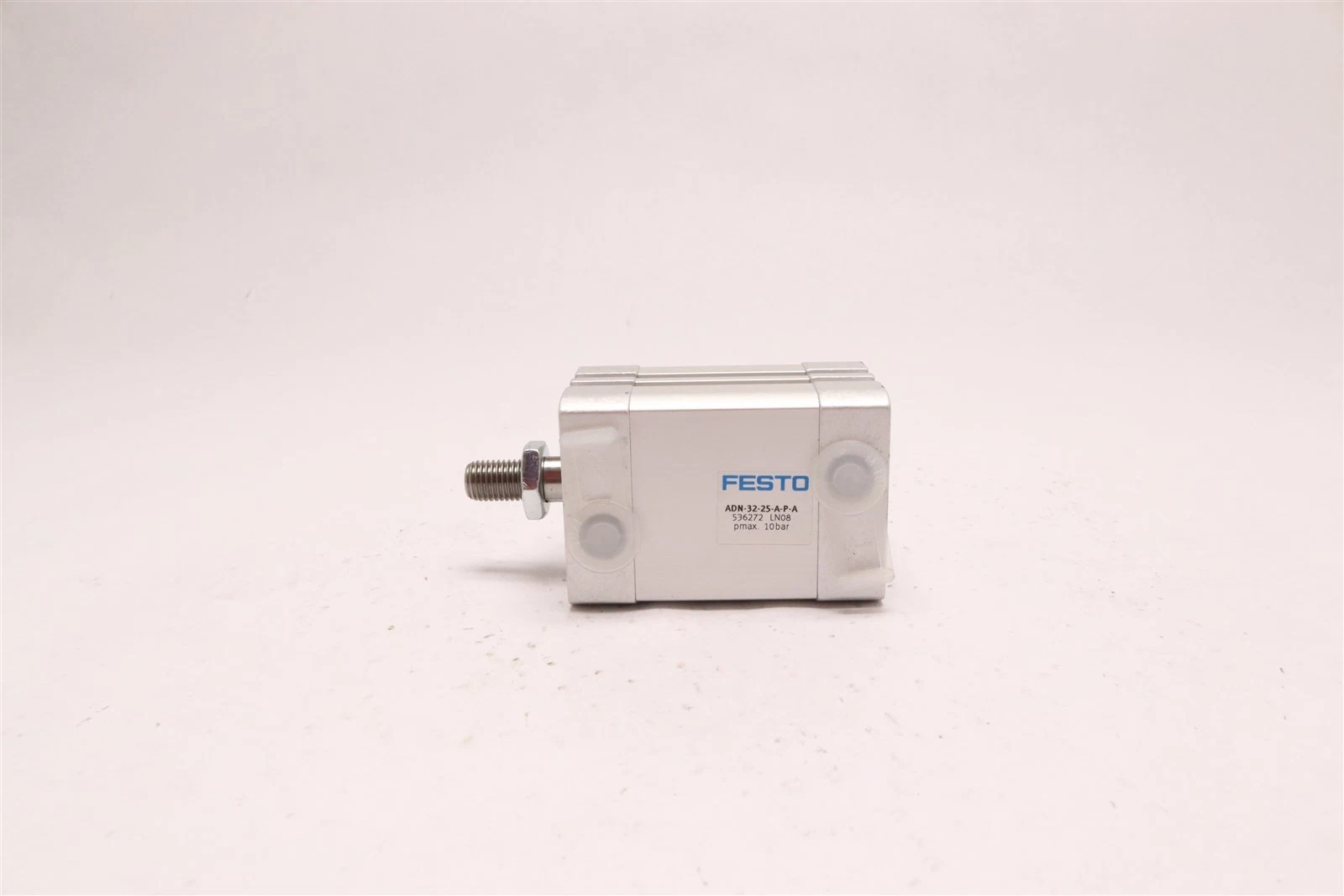

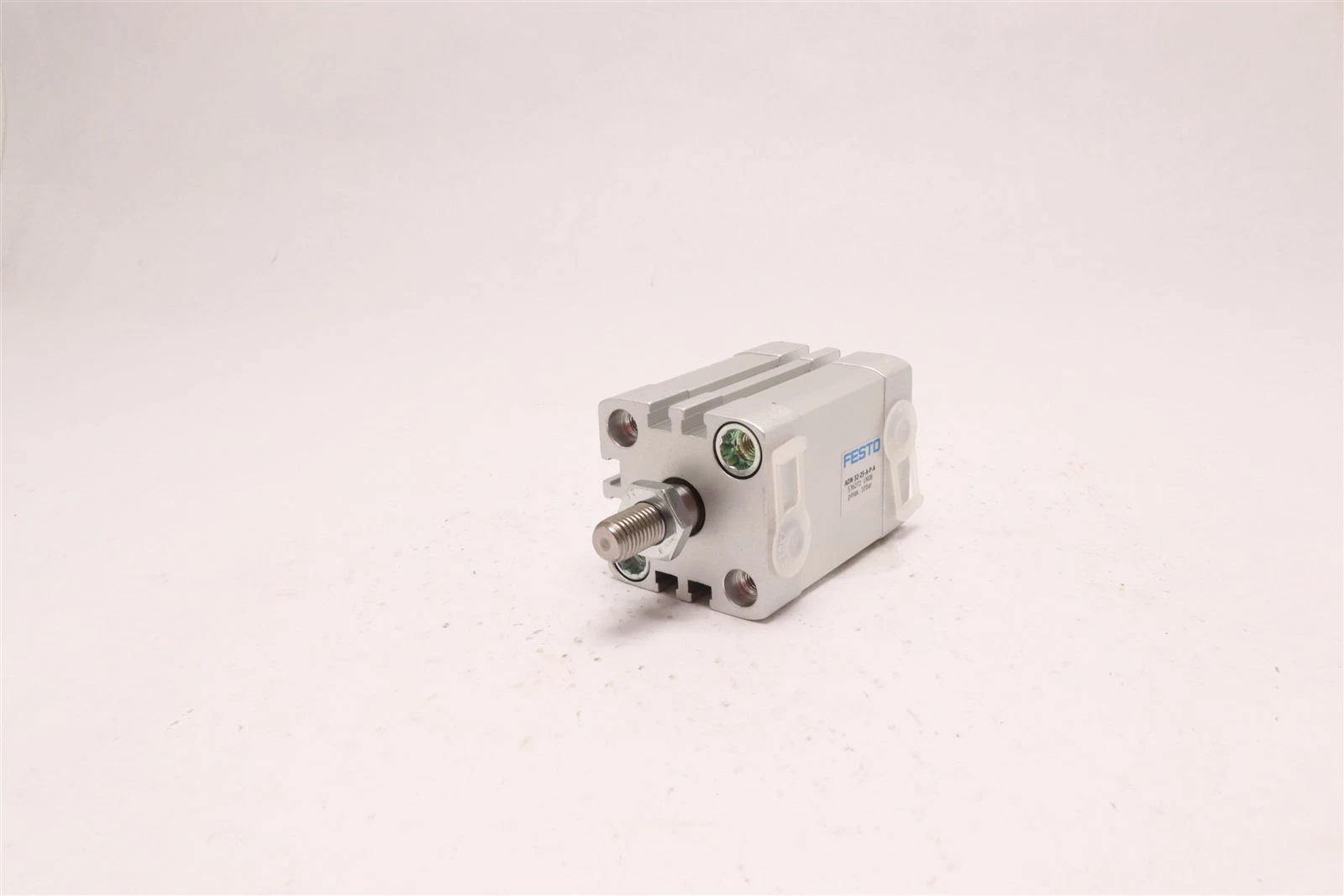

FESTO PNEUMATIC CYLINDER ADN-32-25-A-P-A 536272

FESTO Pneumatic Cylinder ADN-32-25-A-P-A is a high-performance, compact pneumatic actuator designed for precision industrial applications. This robust cylinder features a sleek aluminum body with integrated mounting options, ensuring easy installation and reliable operation in demanding environments.

Product Features:

• Compact Design: Space-saving dimensions make it ideal for applications where footprint is critical.
• Aluminum Construction: Lightweight yet durable, providing excellent corrosion resistance and thermal stability.
• Integrated Mounting Options: Includes side and end mounting points for versatile installation configurations.
• Sealed Ports: Protective caps on the air inlet/outlet ports prevent contamination and ensure clean operation.
• High Pressure Rating: Capable of operating at up to 10 bar (145 psi), suitable for a wide range of industrial tasks.
• Smooth Operation: Precision-engineered piston and seals ensure consistent, low-friction movement.

Specifications:

• Model Number: ADN-32-25-A-P-A
• Product Code: 536272
• Bore Size: 32 mm
• Stroke Length: 25 mm
• Max Pressure: 10 bar (145 psi)
• Material: Aluminum Body with Plastic End Caps
• Weight: Approximately 0.3 kg

Applications:

This FESTO pneumatic cylinder is widely used in automated manufacturing systems, packaging machinery, assembly lines, and robotic applications. Its compact size and high performance make it suitable for tasks requiring precise linear motion, such as part positioning, clamping, and material handling.

Benefits:

• Reliability: Built to withstand harsh industrial conditions, ensuring long-lasting performance.
• Efficiency: Optimized for energy-efficient operation, reducing operational costs.
• Flexibility: Versatile mounting options allow for easy integration into existing systems.
• Cost-Effective: High-quality construction at an affordable price point makes it a smart choice for industrial automation projects.
