ALLEN BRADLEY 非反转接触器 600V MAX16 AMP 100-C16KJ10

Allen-Bradley Non-Reversing Contactor 100-C16KJ10 is a high-performance industrial contactor designed for reliable operation in demanding electrical applications. Manufactured by Rockwell Automation, this contactor combines robust construction with advanced engineering to deliver exceptional performance and durability.

Product Features:

• Rated Voltage: 600V AC maximum
• Current Rating: 16 Amps
• Contact Configuration: 3 Main Poles + 1 Normally Open Auxiliary Contact
• Coil Voltage: 24V DC/AC 50/60Hz
• Enclosure Rating: IP20 (suitable for indoor use)

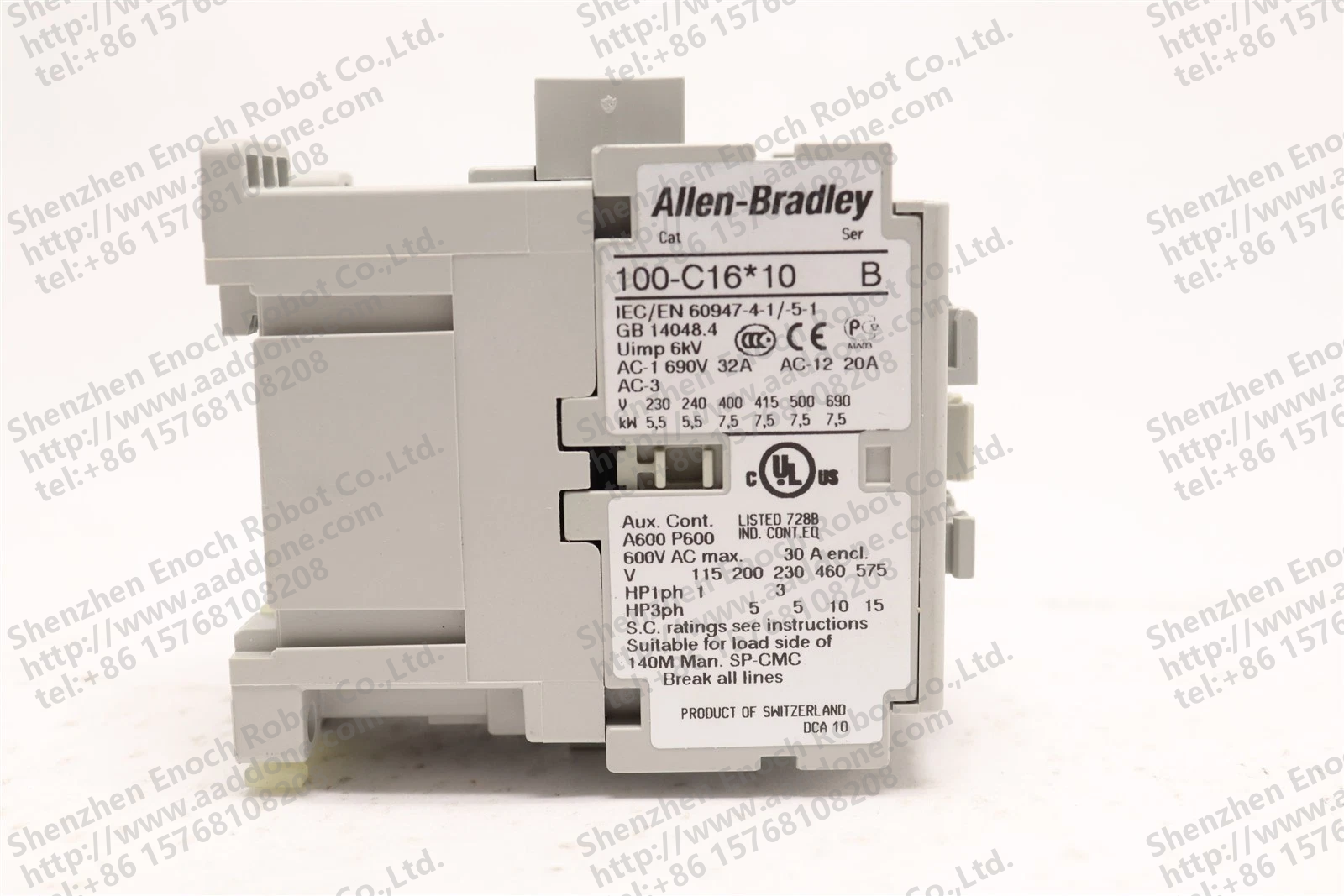

• Compliance Standards: IEC/EN 60947-4-1, GB 14048.4, UL, CE certified
• Material Construction: Durable polycarbonate housing with high-temperature resistant components
• Mounting Options: DIN rail or panel mounting
• Terminal Capacity: Screw terminals for secure connections
• Break Capability: Break all lines for enhanced safety

Specifications:

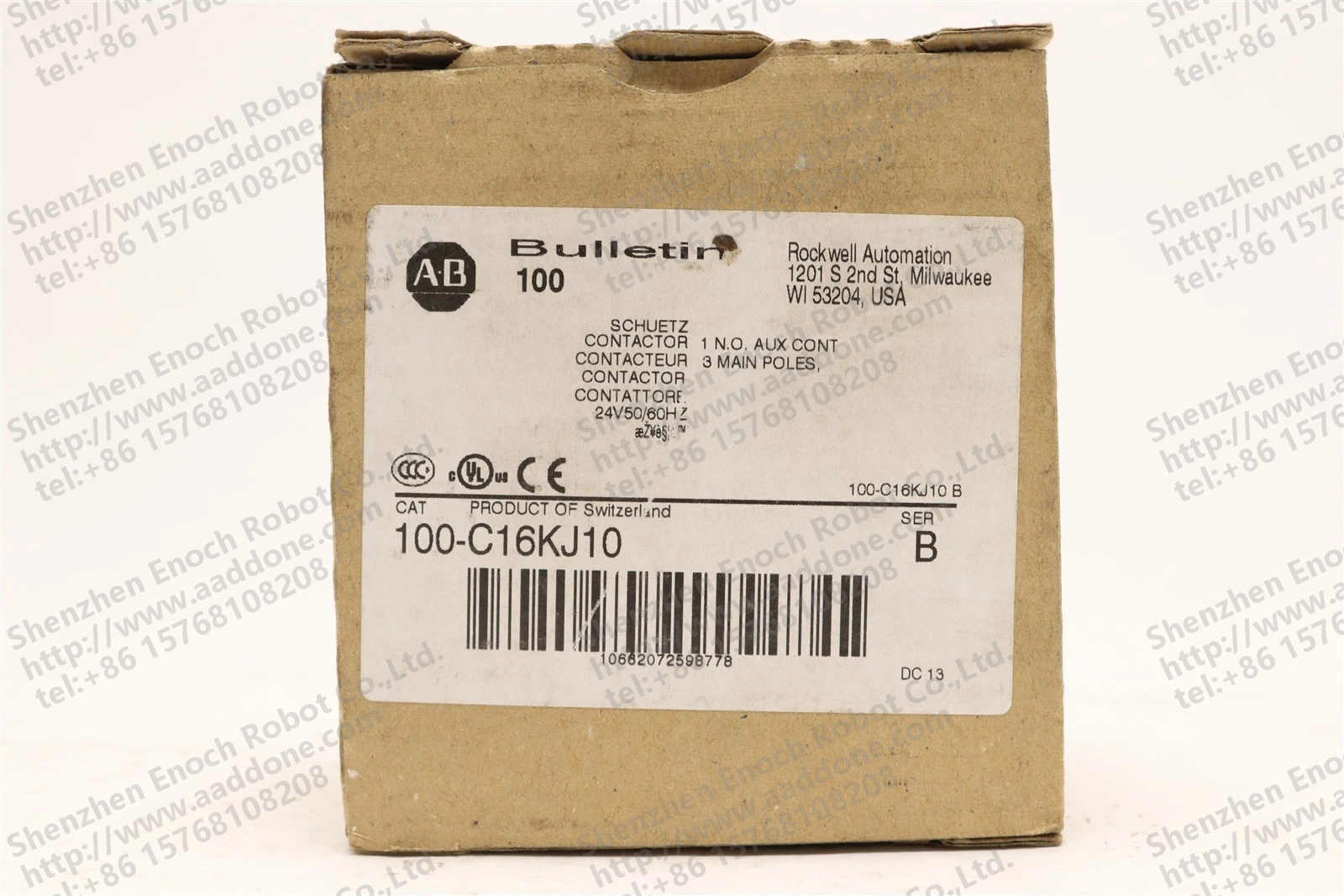

• Product Code: 100-C16KJ10
• Series: Bulletin 100
• Manufactured In: Switzerland
• Weight: Approximately 0.5 kg
• Operating Temperature Range: -25°C to +55°C
• Insulation Resistance: Minimum 100 MΩ at 500V DC
• Dielectric Strength: 6kV withstand voltage

Applications:

• Industrial automation systems
• Motor control circuits
• Lighting control systems
• Heating, ventilation, and air conditioning (HVAC) systems
• Power distribution panels
• Machine tool controls
• Process control systems

Benefits:

• Reliability: Designed for continuous operation in harsh industrial environments
• Efficiency: Low power consumption coil design reduces energy costs
• Safety: Enclosed contacts prevent accidental contact and ensure safe operation
• Compatibility: Meets international standards for seamless integration into various systems
• Longevity: High-quality materials and construction ensure extended service life
• Easy Installation: User-friendly terminal connections and mounting options
• Cost-Effective: Provides excellent value with its combination of performance and durability
