Product Description

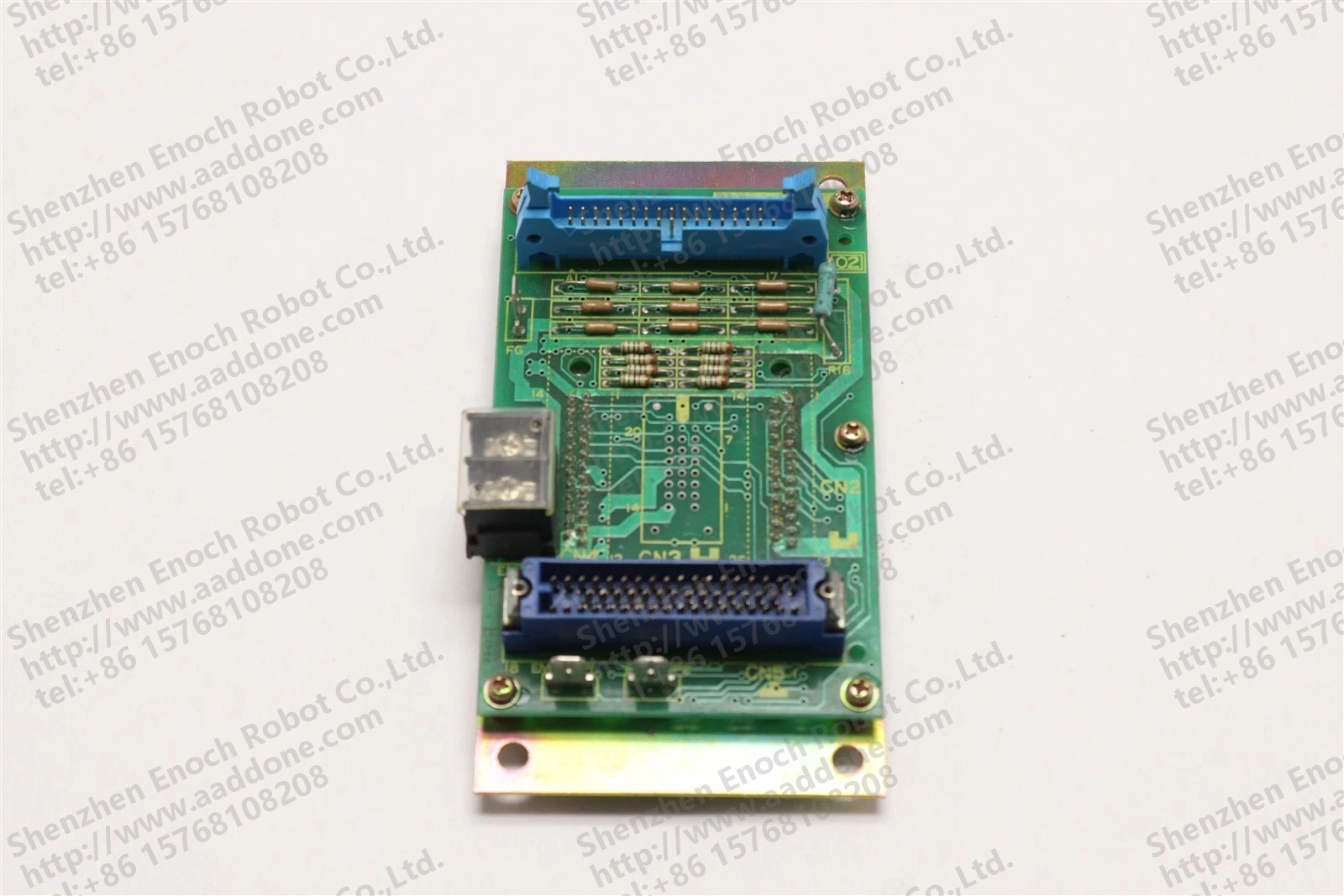

The FANUC A20B-1003-0045/01A PCB is a high-quality, industrial-grade printed circuit board designed for use in FANUC's advanced control systems. This component serves as a critical interface between the operation panel and the main control unit, ensuring seamless communication and reliable performance in demanding automation environments.
Key Features:
- High-density circuitry with precision-engineered components
- Two robust blue connectors for secure and stable connections
- Durable green PCB construction with gold-plated mounting bracket
- Comprehensive array of resistors, capacitors, and integrated circuits
- Manufactured to FANUC's stringent quality standards
- Compatible with various FANUC control systems and operation panels
Specifications:
- Model Number: A20B-1003-0045/01A
- Material: Green FR-4 PCB with gold-plated edge connector
- Connectors: Two 64-pin female connectors (CN1 and CN2)
- Dimensions: Approximately 100mm x 60mm
- Weight: Approximately 100g
- Operating Temperature: -20°C to +70°C
- Compatibility: FANUC CNC systems and operation panels
Applications:
This PCB is primarily used in FANUC's industrial automation systems, including CNC machines, robotic controllers, and other automated manufacturing equipment. It facilitates the connection between the operator's control panel and the main processing unit, enabling precise control and monitoring of complex industrial processes.
Benefits:
- Enhanced reliability and durability for continuous industrial operations
- Improved signal integrity and reduced interference
- Easy installation and maintenance with clear labeling and robust connectors
- Backward compatibility with existing FANUC systems
- Cost-effective solution for upgrading or replacing older control system components
- Supports efficient data transfer and real-time control capabilities
