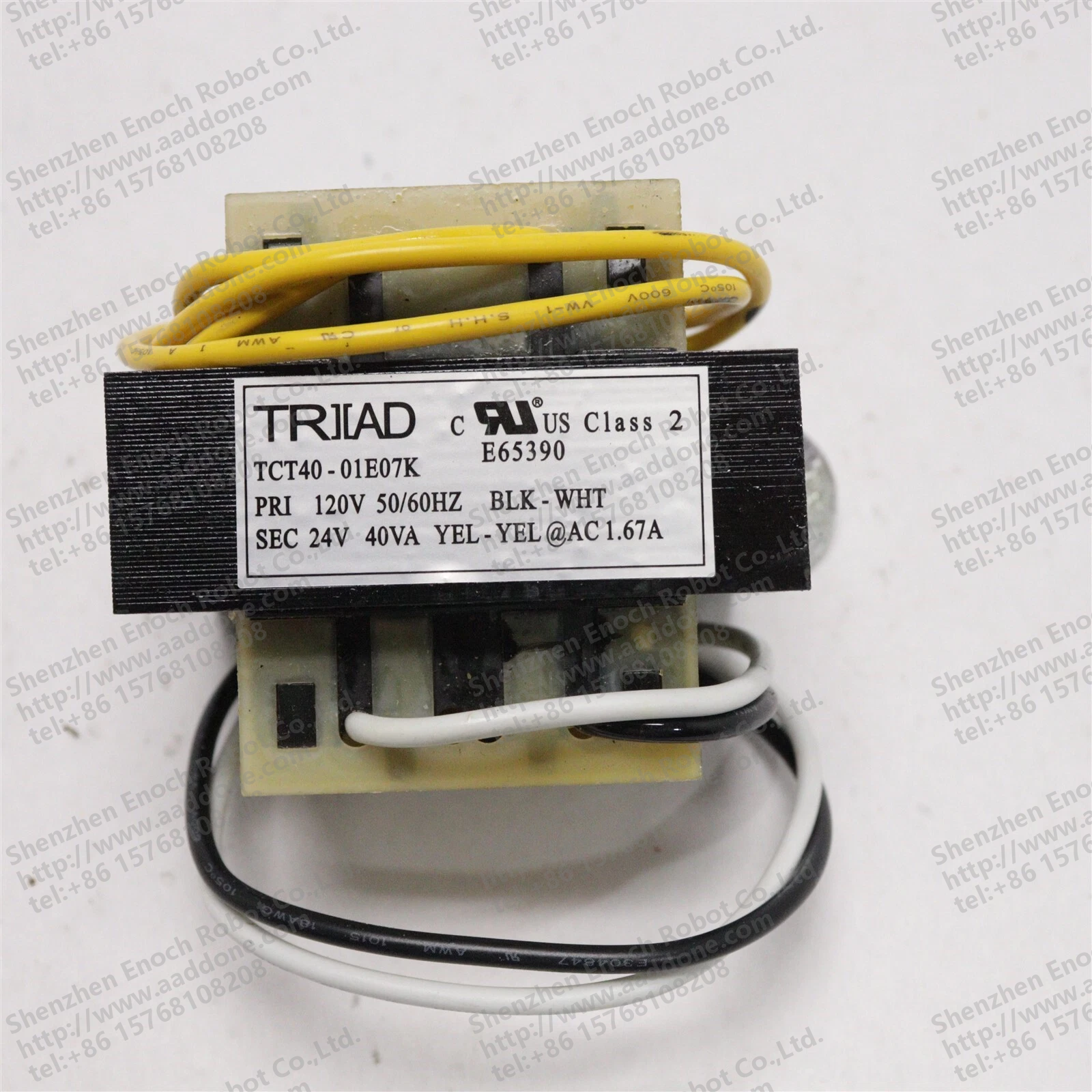

TRIAD 磁性机箱安装变压器 TCT40-01E07K

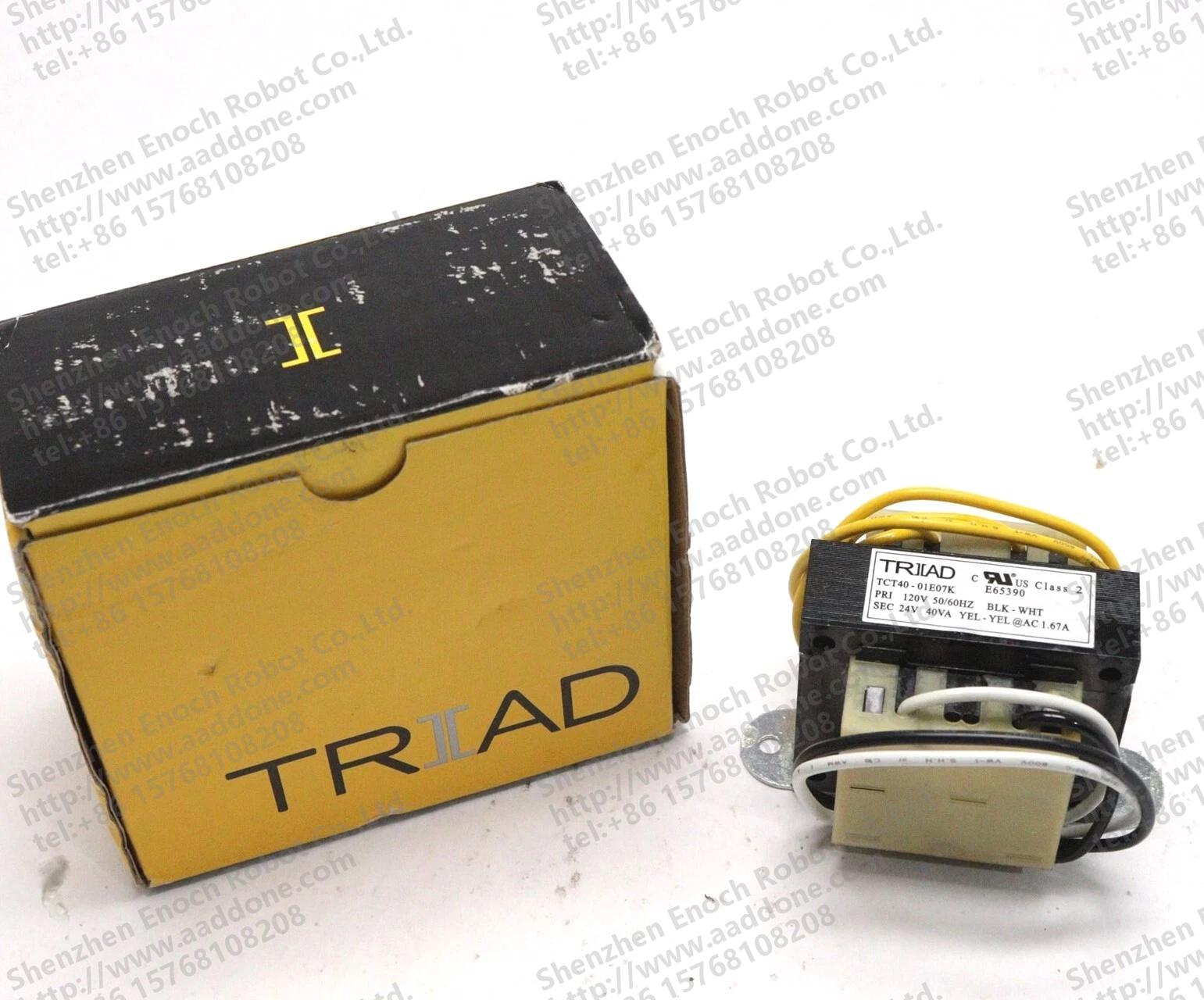

TRIAD TCT40-01E07K Magnetic Chassis Mount Transformer is a high-performance industrial power transformer designed for reliable voltage conversion in demanding applications. This compact and robust unit features a durable construction with a magnetic chassis mount design, ensuring secure installation and long-term durability.

Key Features:

• Compact Design: Space-saving form factor ideal for tight installations in industrial equipment.
• Magnetic Chassis Mount: Secure mounting solution for stable operation in vibration-prone environments.
• High Efficiency: Optimized core and winding design for minimal energy loss and heat generation.
• Wide Voltage Range: Primary input of 120V AC at 50/60Hz and secondary output of 24V AC at 40VA (1.67A).
• Durable Construction: Encased in a protective housing with color-coded wiring for easy identification and safe installation.
• UL Listed: Certified to UL Class 2 standards for safety and compliance in commercial and industrial applications.

Specifications:

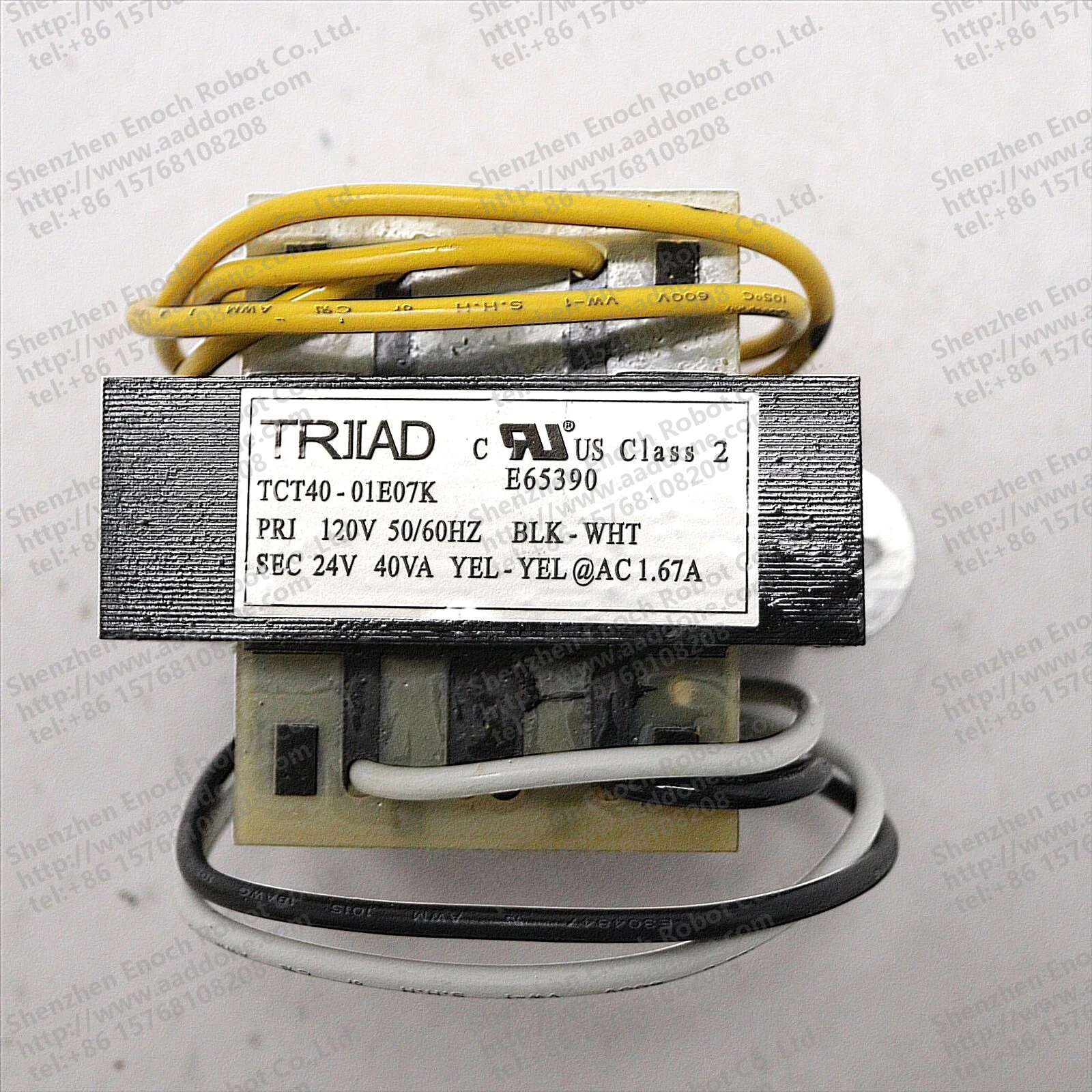

• Model Number: TCT40-01E07K
• Primary Voltage: 120V AC, 50/60Hz
• Secondary Voltage: 24V AC, 40VA (1.67A)
• Wiring Color: Black (primary), White (primary), Yellow (secondary), Yellow (secondary)
• Mounting Type: Magnetic Chassis Mount
• Enclosure Material: Durable plastic housing
• Weight: Approximately 0.5 kg
• Operating Temperature Range: -20°C to +85°C

Applications:

The TRIAD TCT40-01E07K transformer is ideal for a wide range of industrial and commercial applications, including:

• Control systems and automation equipment
• Industrial machinery and robotics
• Power supplies for electronic devices
• Lighting systems and LED drivers
• Telecommunications and networking equipment
• Medical and laboratory instruments

Benefits:

• Reliability: Built to withstand harsh industrial conditions and deliver consistent performance.
• Efficiency: Low energy consumption and reduced operating costs.
• Easy Installation: Pre-wired connections and magnetic mounting simplify setup and maintenance.
• Compliance: Meets UL Class 2 safety standards for use in commercial and industrial environments.
• Longevity: High-quality materials and construction ensure a long service life with minimal downtime.
