ABB VOLTAGE MEASUREMENT BOX DSQC686 3HAC034234-001 3HAC033000-001

The ABB Voltage Measurement Box DSQC686 (Part Numbers: 3HAC034234-001, 3HAC033000-001) is a robust and reliable industrial-grade device designed for precise voltage measurement applications. This compact unit features a durable white textured enclosure with secure mounting brackets, ensuring stability in demanding environments.

Key Features:

• Durable white textured enclosure with four corner mounting points for secure installation
• Two metallic threaded connectors for reliable electrical connections

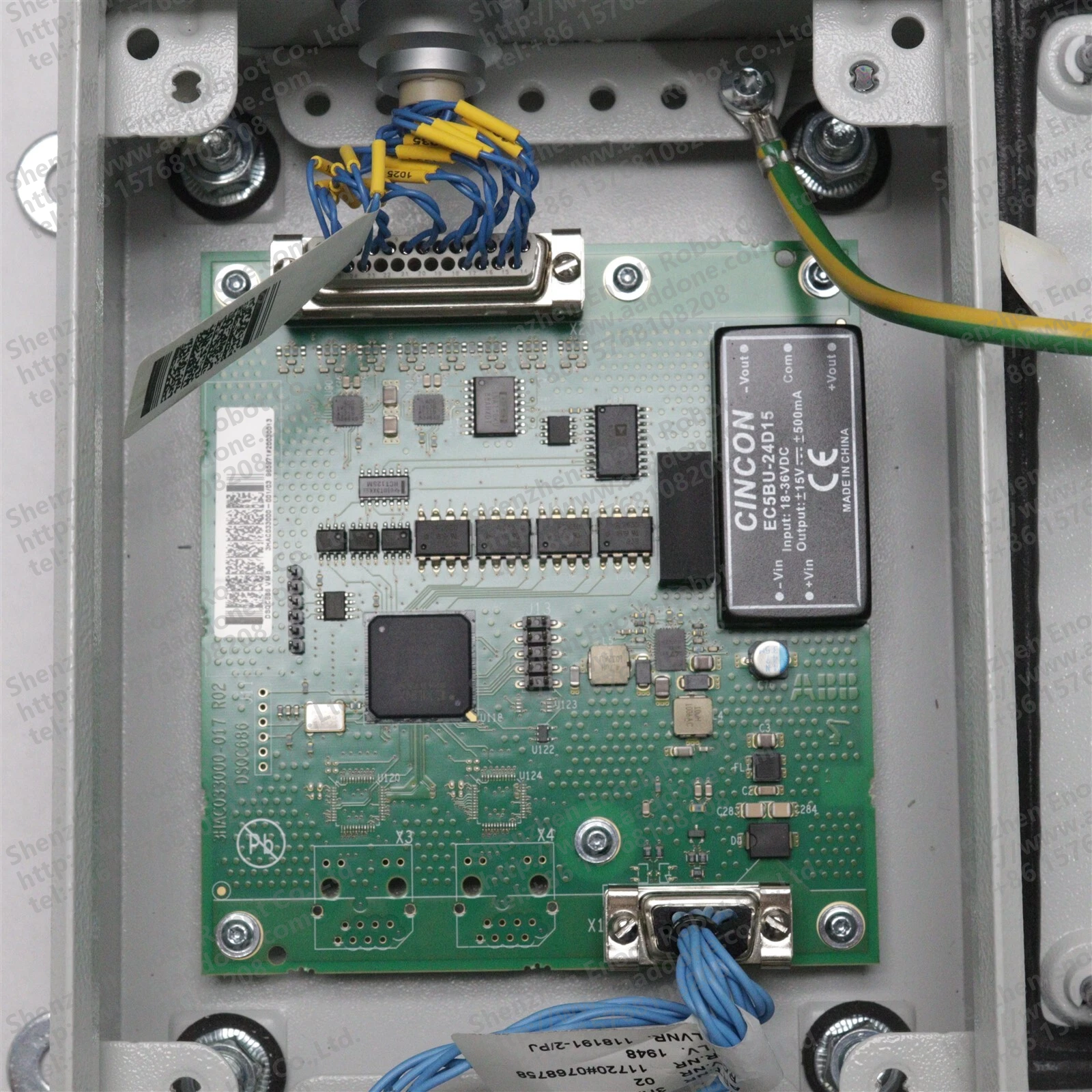

• Internal circuitry includes a green printed circuit board (PCB) with multiple integrated circuits, capacitors, and connectors
• Compliant with international safety standards including UL Listed and CE marked

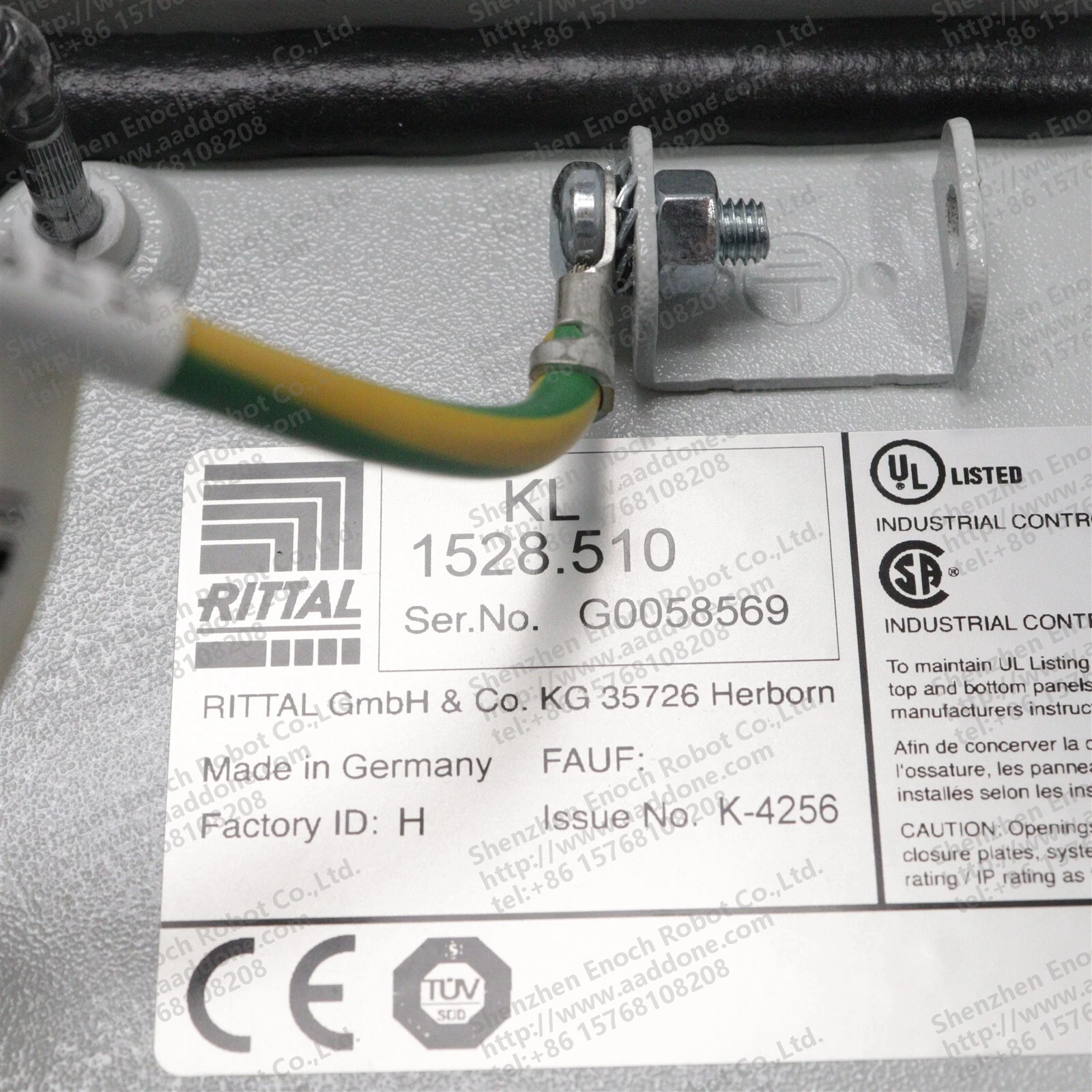

• Manufactured by Rittal GmbH & Co. KG, Germany, known for high-quality industrial enclosures
• Includes a power supply module (CINCON EC5BU-24D15) for stable operation
• Internally organized wiring with color-coded cables for easy maintenance

Specifications:

• Enclosure Material: Durable white textured plastic
• Connectors: Two metallic threaded ports
• Power Supply: CINCON EC5BU-24D15 (Input: 18-36VDC, Output: ±5V)
• Compliance: UL Listed, CE, TÜV SÜD certified
• Manufacturer: Rittal GmbH & Co. KG, Germany

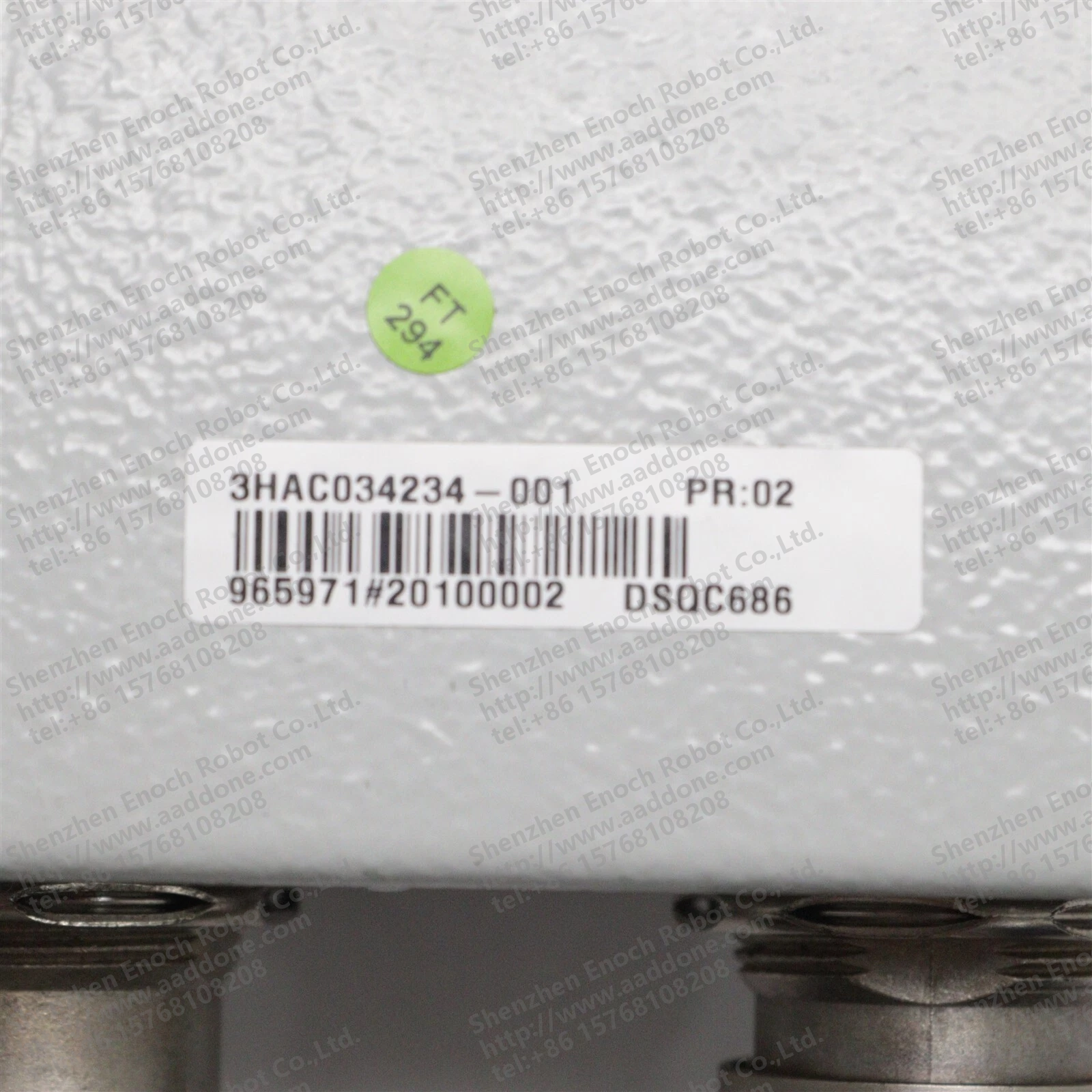

• Part Numbers: 3HAC034234-001, 3HAC033000-001

Applications:

This voltage measurement box is ideal for industrial automation systems, robotic applications, and other environments requiring precise voltage monitoring. It can be used in conjunction with ABB robotic systems or as a standalone unit for voltage measurement tasks.

Benefits:

• High durability for long-lasting performance in industrial settings
• Easy installation with secure mounting options
• Reliable voltage measurement capabilities for accurate data collection
• Compliant with international safety standards for peace of mind
• Compact design saves space while maintaining functionality
• Pre-wired internal components for quick setup and integration
