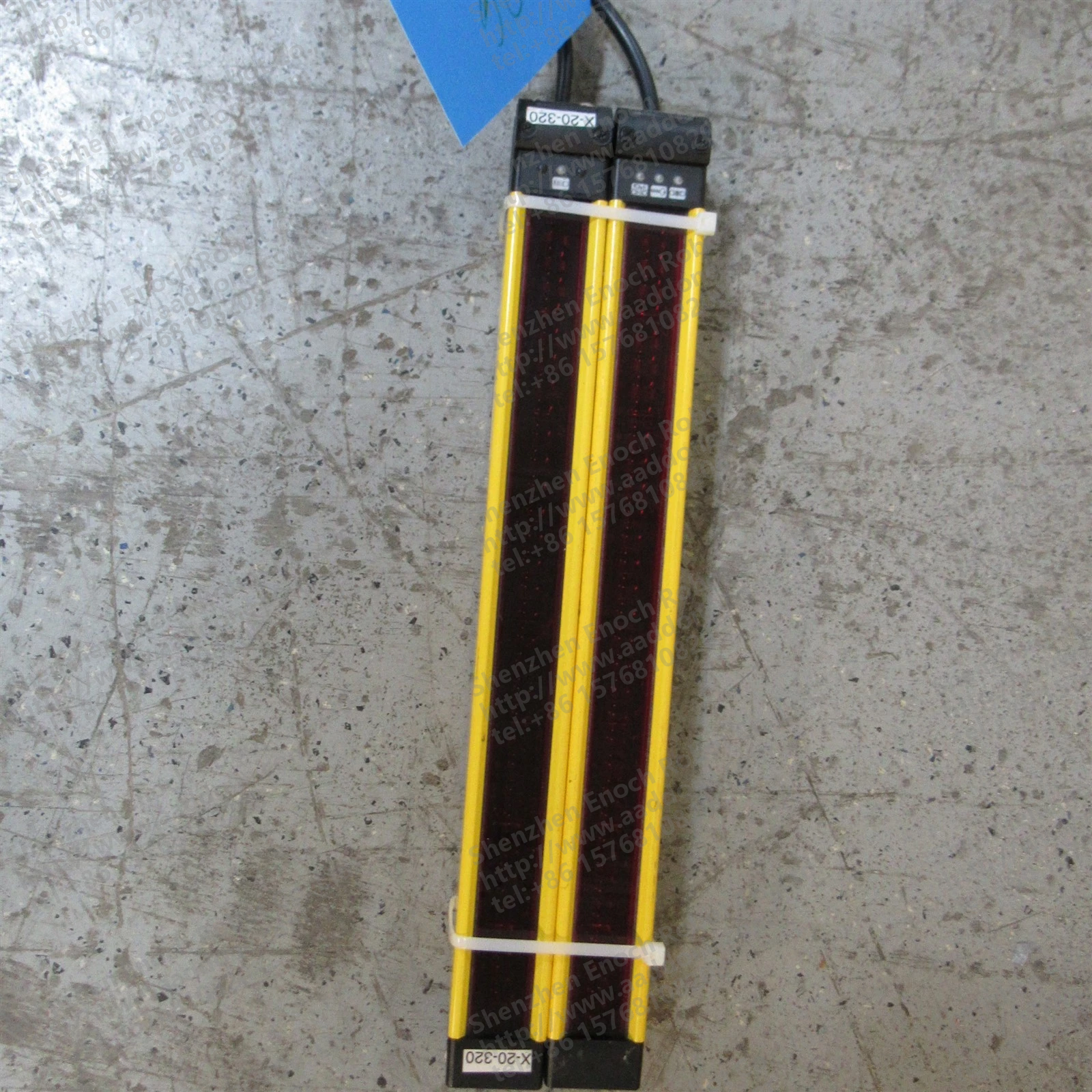

OMRON STI LIGHT CURTAIN MINISAFE SET 520MM MSF4800S-30-0520-R MSF4800S-30-0520-X

The OMRON STI Light Curtain MiniSafe Set MSF4800S-30-0520-R and MSF4800S-30-0520-X is a high-performance safety light curtain designed for industrial automation and motion control applications. This set includes a transmitter and receiver unit, providing reliable and precise detection for safeguarding personnel and equipment in hazardous environments.

Product Features:

• 520mm Detection Range: Ensures comprehensive coverage for large work areas, making it ideal for protecting wide openings or zones.
• Compact Design: The MiniSafe series offers a space-saving solution without compromising on performance, allowing for easy integration into existing machinery or systems.
• Robust Construction: Built to withstand harsh industrial conditions, with an IP65 rating that protects against dust and water ingress.
• Fast Response Time: With a response time of just 14.99ms, this light curtain ensures rapid detection and reaction, minimizing the risk of accidents.
• Easy Installation: Comes with clear labeling and straightforward mounting options, reducing setup time and effort.
• Compliance & Certification: Meets international safety standards, including CE, UL, and CSA certifications, ensuring compliance with global regulations.

Specifications:

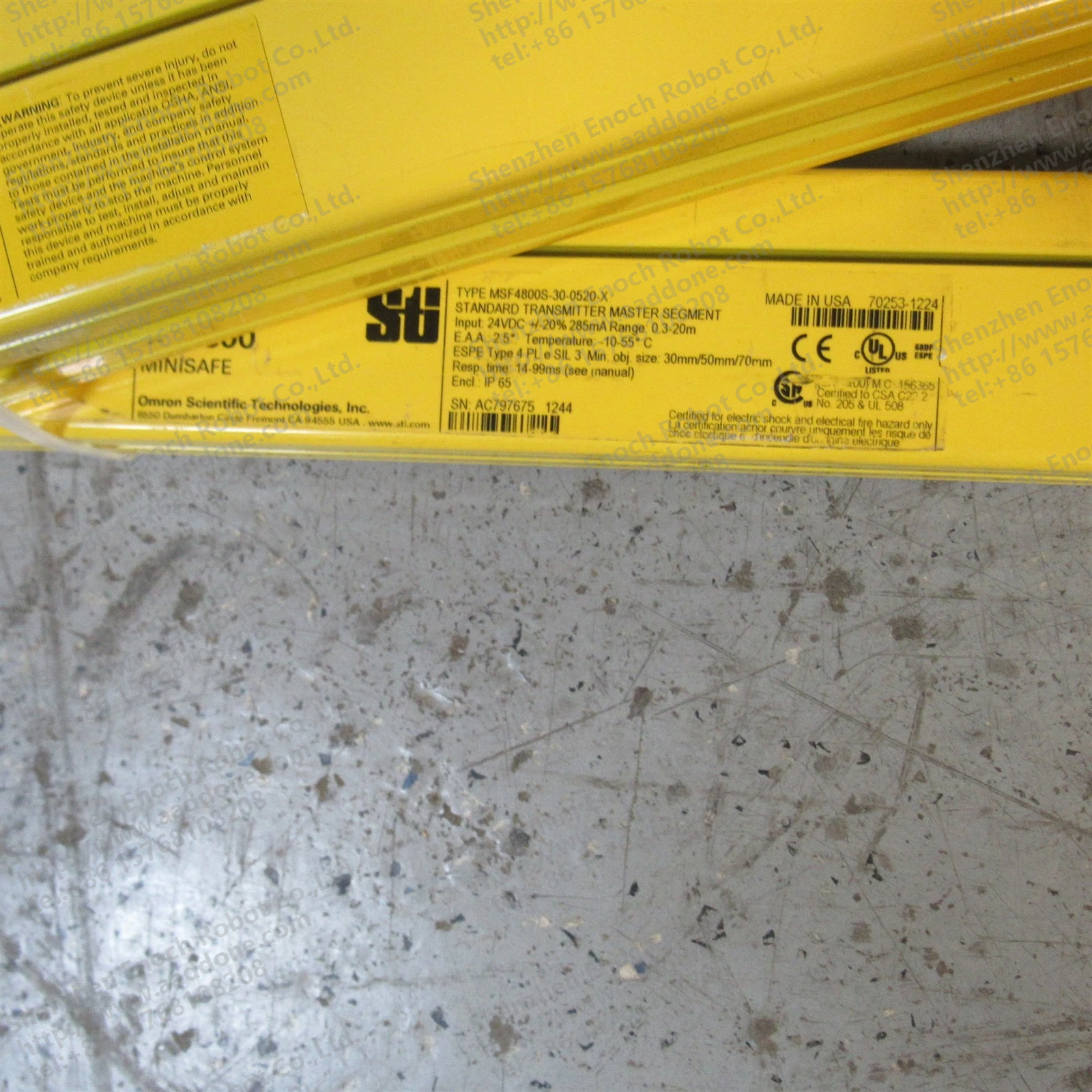

• Model Number: MSF4800S-30-0520-R (Receiver) and MSF4800S-30-0520-X (Transmitter)
• Input Voltage: 24VDC ±20%
• Detection Range: 0.3m to 20m
• Operating Temperature: -10°C to 55°C
• Response Time: 14.99ms
• Enclosure Rating: IP65
• ESPE Type: 4 PL e SIL 3
• Minimum Object Size Detected: 30mm, 50mm, 70mm
• Manufactured In: USA

Applications:

• Machine Guarding: Ideal for protecting operators from moving parts in CNC machines, robotic arms, and assembly lines.
• Automated Systems: Enhances safety in automated conveyor systems, packaging machines, and material handling equipment.
• Industrial Workstations: Provides reliable protection in workstations where there is a risk of accidental contact with dangerous machinery.
• Custom Safety Solutions: Can be integrated into custom safety systems for unique industrial applications.

Benefits:

• Enhanced Safety: Offers superior protection by detecting even small objects, reducing the risk of workplace injuries.
• Reliability: Designed for long-term use in demanding industrial environments, ensuring consistent performance over time.
• Cost-Effective: Provides a robust safety solution at a competitive price point, making it accessible for a wide range of businesses.
• Easy Maintenance: Simple to install and maintain, with clear indicators for status monitoring and troubleshooting.
• Global Compliance: Meets international safety standards, ensuring safe operation in any global market.
