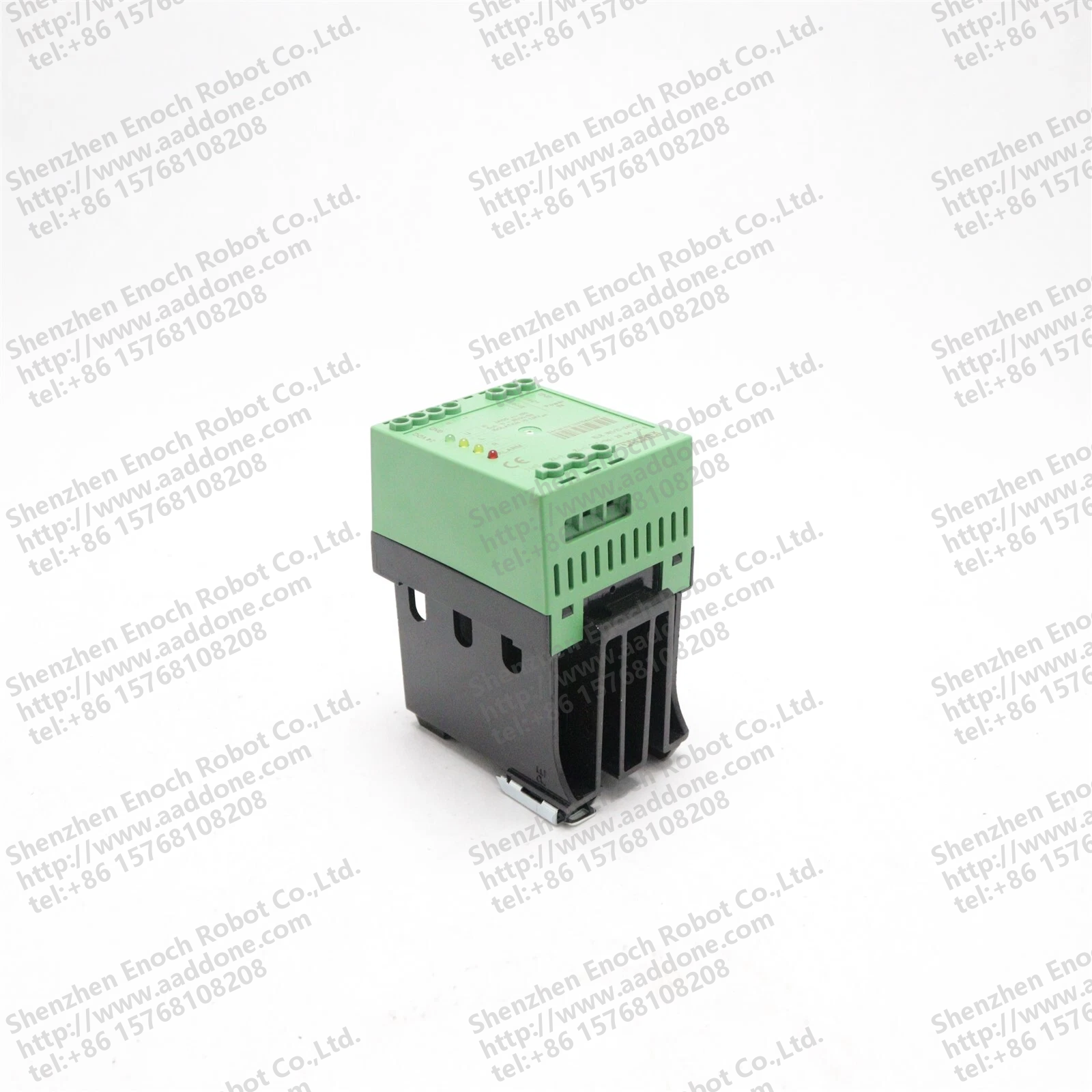

PHOENIX CONTACT REVERSING LOAD RELAY ELR W110-24DC ORD NO 29-64-30-6

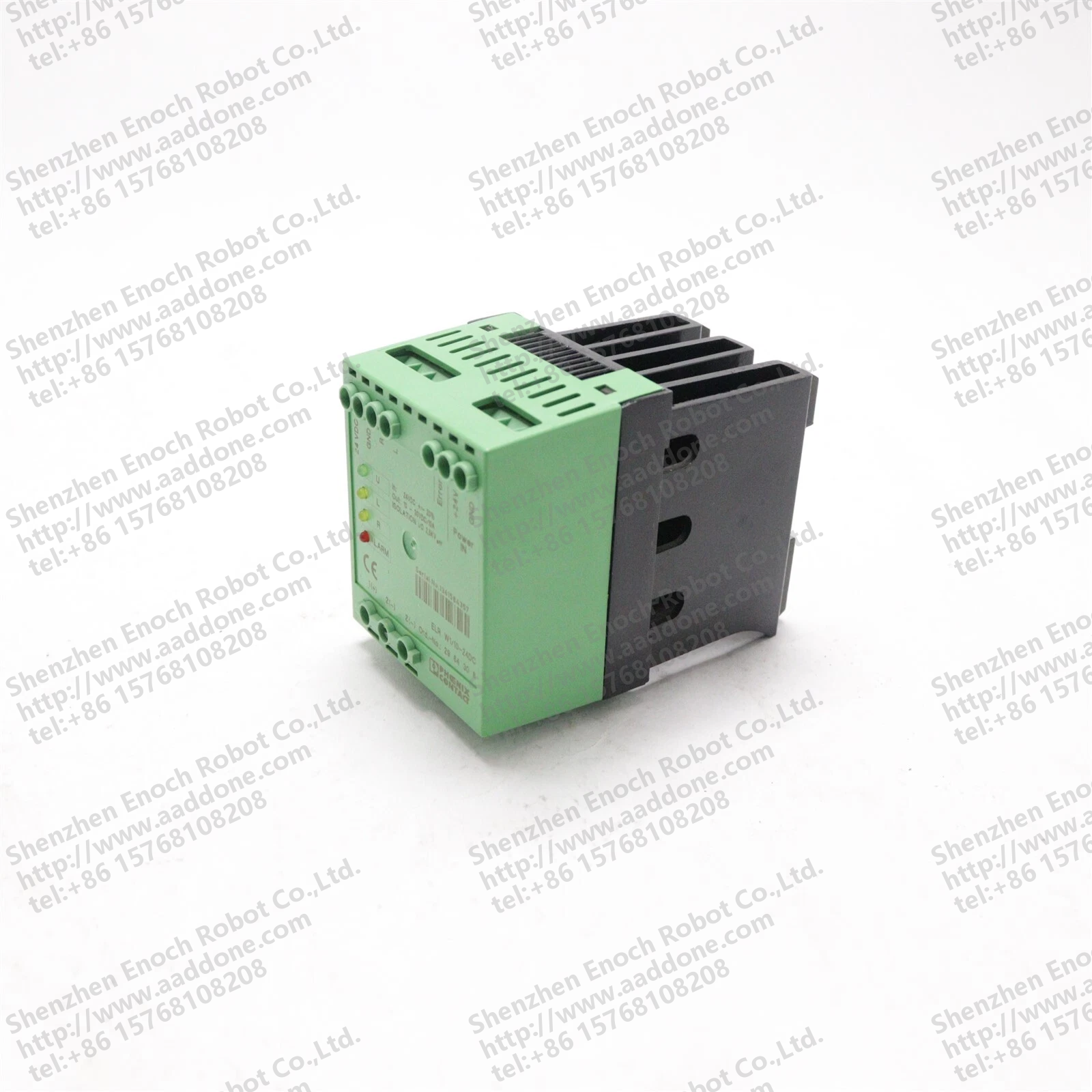

The Phoenix Contact ELR W1/10-24DC Reversing Load Relay is a robust and reliable industrial component designed for demanding applications. This high-performance relay features a compact design with a green top housing and black base, ensuring easy integration into various control systems. The unit is equipped with multiple connection points and indicator lights for seamless operation and monitoring.

• Key Features:
• Compact and durable design for easy installation in tight spaces.
• Green top housing with clearly labeled connection points for user-friendly operation.

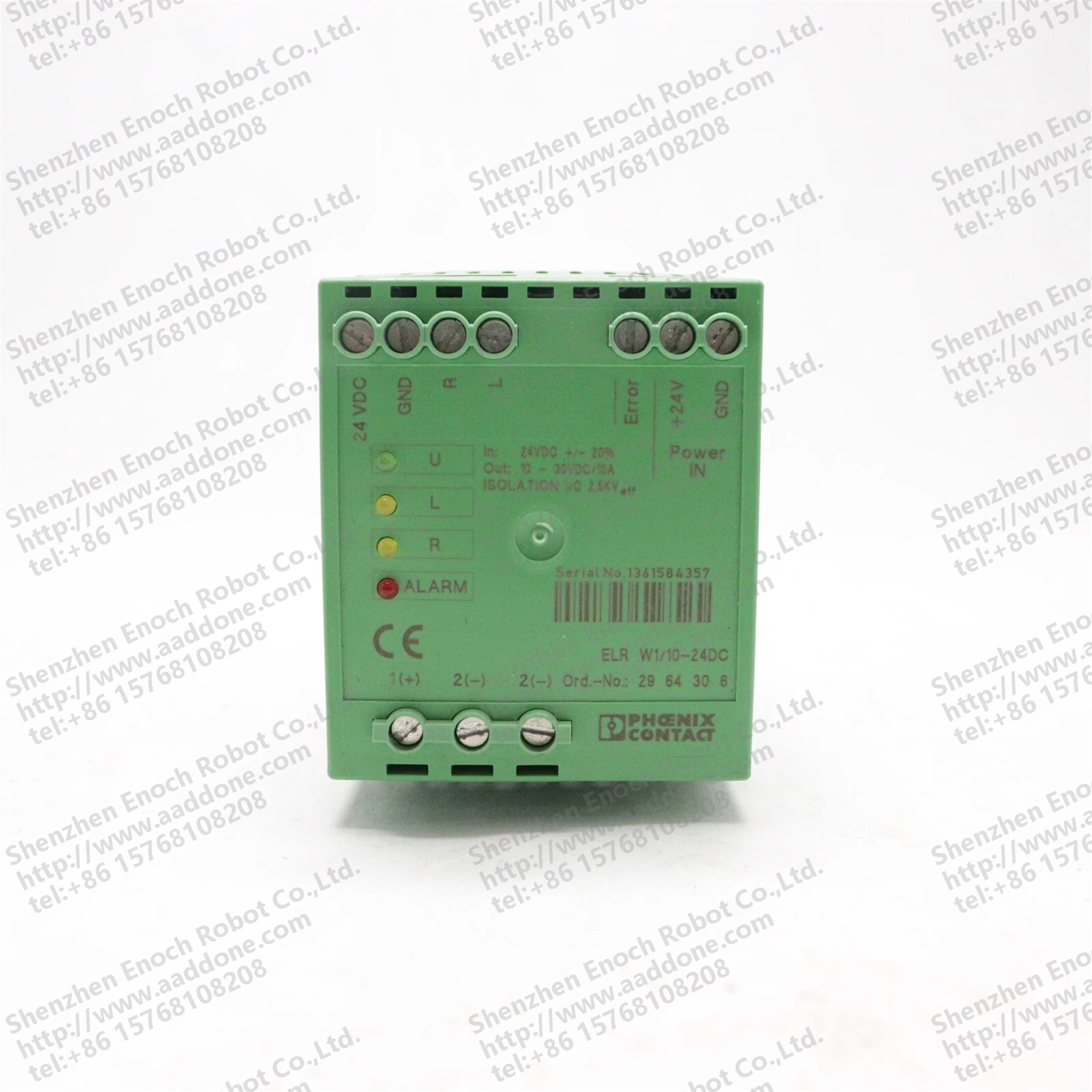

• Integrated indicator lights (U, L, R, ALARM) for real-time status monitoring.
• High isolation voltage of 2.5 kV_eff for enhanced safety and reliability.
• Input voltage range: 24 VDC ±20%, output voltage range: 10 - 33 VDC/10 A.
• Complies with CE standards for quality assurance and safety.
• Serial number and order number printed for traceability and inventory management.

Specifications:

• Model: ELR W1/10-24DC
• Order Number: 29 64 30 6
• Input Voltage: 24 VDC ±20%
• Output Voltage: 10 - 33 VDC/10 A
• Isolation Voltage: 2.5 kV_eff
• Dimensions: [Insert dimensions if visible in images]
• Weight: [Insert weight if visible in images]

Applications:

This reversing load relay is ideal for use in industrial automation, process control, and machinery applications where precise switching and monitoring are required. It is particularly suited for environments with high electrical noise and harsh conditions, thanks to its robust construction and advanced isolation capabilities.

Benefits:

• Enhanced safety and reliability with high isolation voltage.
• Easy installation and maintenance due to compact design and clear labeling.
• Real-time monitoring with integrated indicator lights for quick troubleshooting.
• Compliance with industry standards ensures long-term performance and safety.
• Cost-effective solution for reversing load applications in industrial settings.
