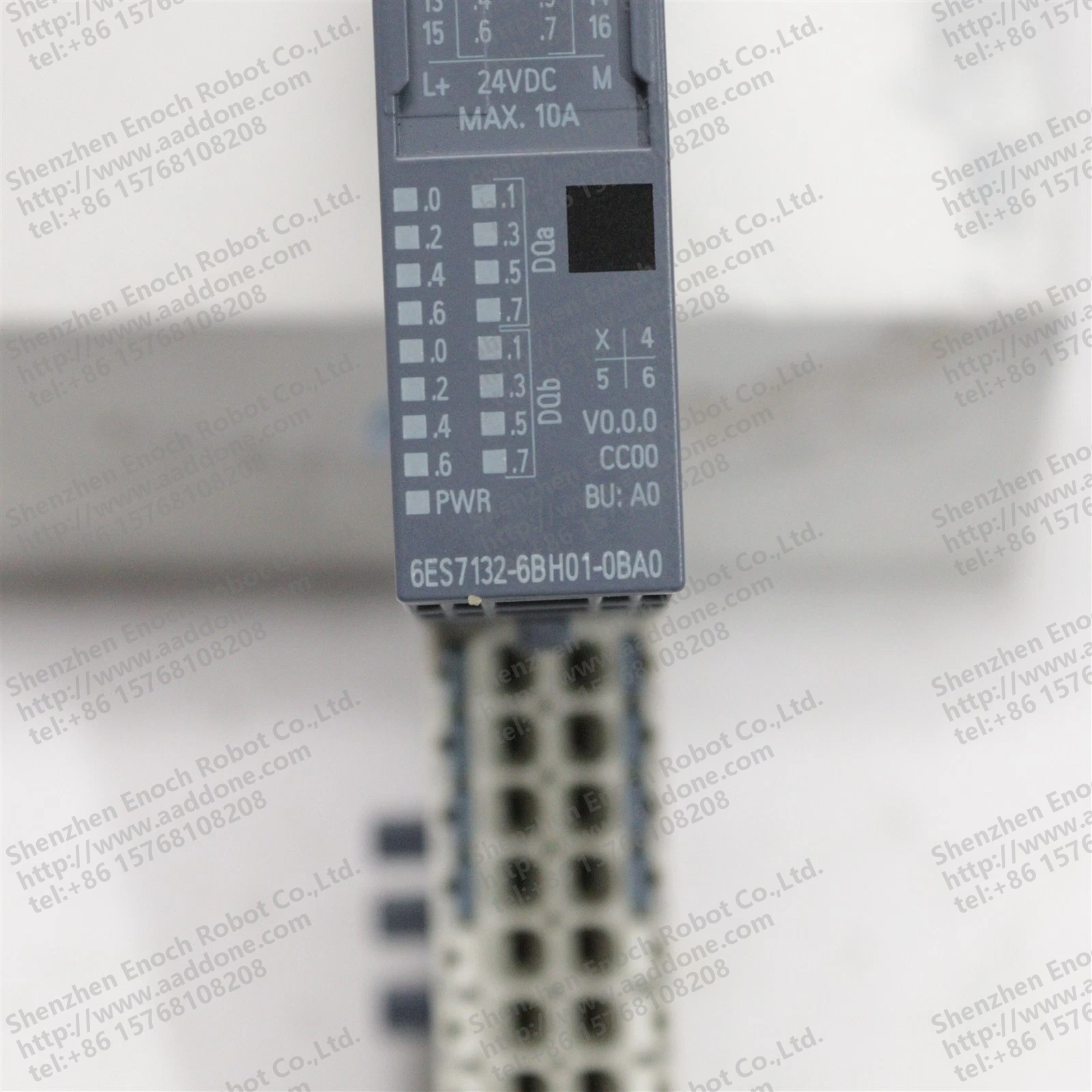

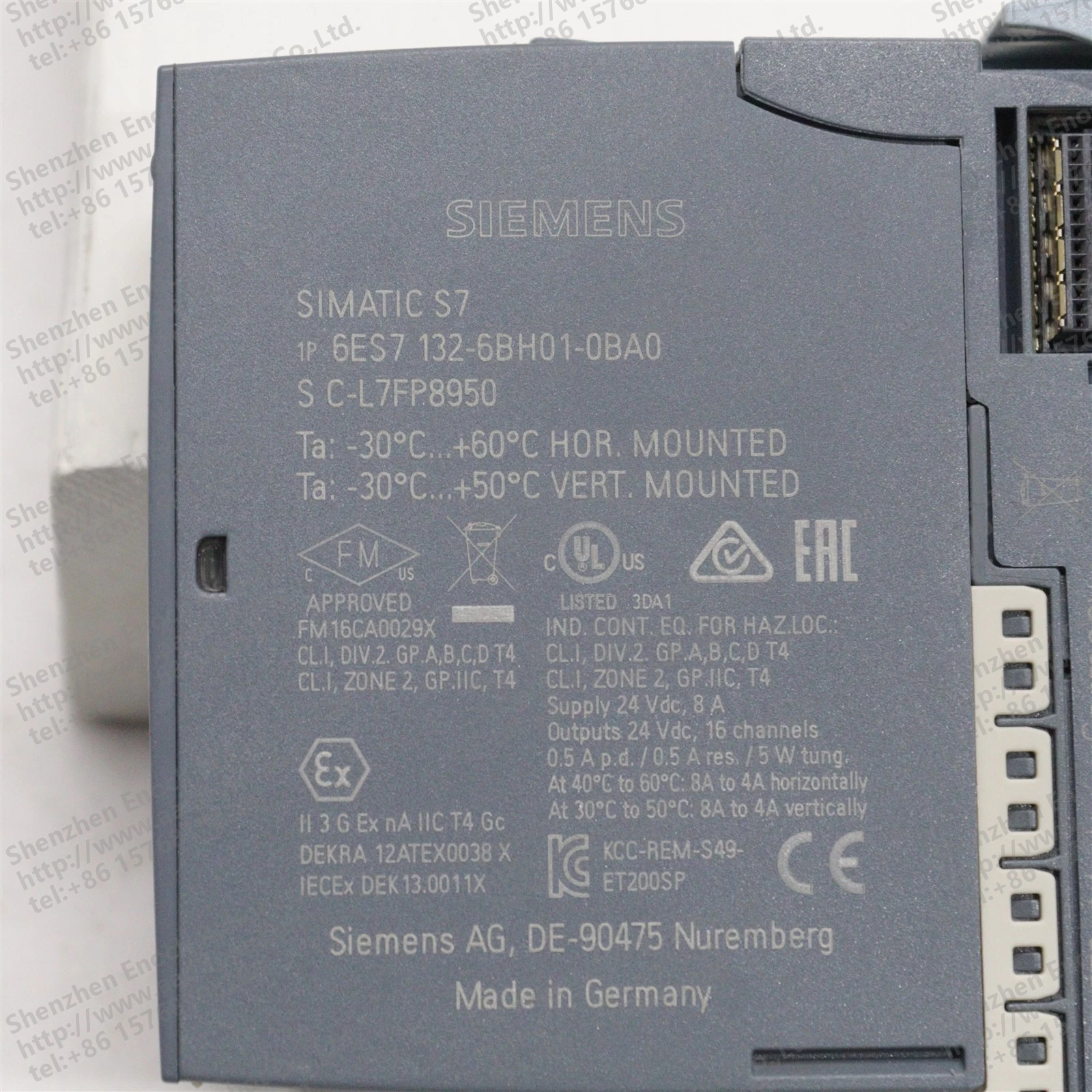

西门子 6ES7 132-6BH01-0BA0 数字输出模块

The Siemens 6ES7 132-6BH01-0BA0 Digital Output Module is a robust and reliable component designed for industrial automation and control systems. This module is part of the SIMATIC S7 series, known for its high performance and durability in demanding environments.

Product Features:

• 16 Channels: Provides 16 individual digital output channels for precise control of various industrial processes.
• 24 Vdc Supply: Operates on a 24 Vdc power supply, ensuring compatibility with standard industrial power systems.
• 0.5 A per Channel: Each channel can handle up to 0.5 A, with a maximum total current of 10 A across all channels.
• Temperature Range: Designed to function reliably in temperatures ranging from -30°C to +60°C when horizontally mounted, and -30°C to +50°C when vertically mounted.
• Explosion-Proof Certification: Certified for use in hazardous locations (Zone 2, Group IIC), making it suitable for applications in potentially explosive environments.
• Compact Design: The module features a compact and modular design, allowing for easy integration into existing control systems.
• Industry Standards Compliance: Meets international safety and quality standards, including UL, FM, CE, and EAC certifications.

Specifications:

• Model Number: 6ES7 132-6BH01-0BA0
• Channels: 16
• Supply Voltage: 24 Vdc
• Current per Channel: 0.5 A
• Total Current: 10 A
• Operating Temperature: -30°C to +60°C (horizontal), -30°C to +50°C (vertical)
• Enclosure Rating: IP20
• Weight: Approximately 0.5 kg

Applications:

This digital output module is ideal for a wide range of industrial applications, including but not limited to:

• Automated manufacturing processes
• Process control systems
• Material handling and conveyor systems
• Energy management and distribution
• Building automation and HVAC systems
• Food and beverage processing
• Pharmaceutical production

Benefits:

• Enhanced Reliability: Built to withstand harsh industrial conditions, ensuring long-term reliability and minimal downtime.
• Flexibility: Supports a variety of output configurations, making it adaptable to different application needs.
• Cost-Effective: Offers a cost-effective solution for expanding or upgrading existing control systems without compromising on performance.
• Easy Integration: Designed for seamless integration with other SIMATIC S7 components, simplifying system setup and maintenance.
• Comprehensive Safety: Meets stringent safety standards, providing peace of mind in critical operations.
