ALLEN BRADLEY CONTROL LOGIX 2AXIS SERVO MODULE 1756-M02AEA

The Allen-Bradley ControlLogix 2 Axis Servo Module (Model 1756-M02AE/A) is a high-performance industrial automation component designed for precise motion control applications. This module integrates seamlessly into the ControlLogix system, offering advanced functionality for managing servo motors in complex industrial environments.

Product Features:

• 2-Axis Servo Control: Capable of controlling two servo axes simultaneously, providing synchronized motion for enhanced productivity.
• High Precision: Delivers accurate and reliable motion control, essential for applications requiring tight tolerances.
• Compact Design: The module's robust yet compact form factor allows for easy integration into existing ControlLogix systems without requiring significant space.
• Advanced Connectivity: Equipped with multiple I/O ports for versatile connectivity options, ensuring compatibility with a wide range of industrial equipment.
• Diagnostic Indicators: Includes LED indicators for power, fault, and drive status, enabling quick troubleshooting and maintenance.
• Industrial Grade: Built to withstand harsh industrial conditions, ensuring long-term reliability and performance.

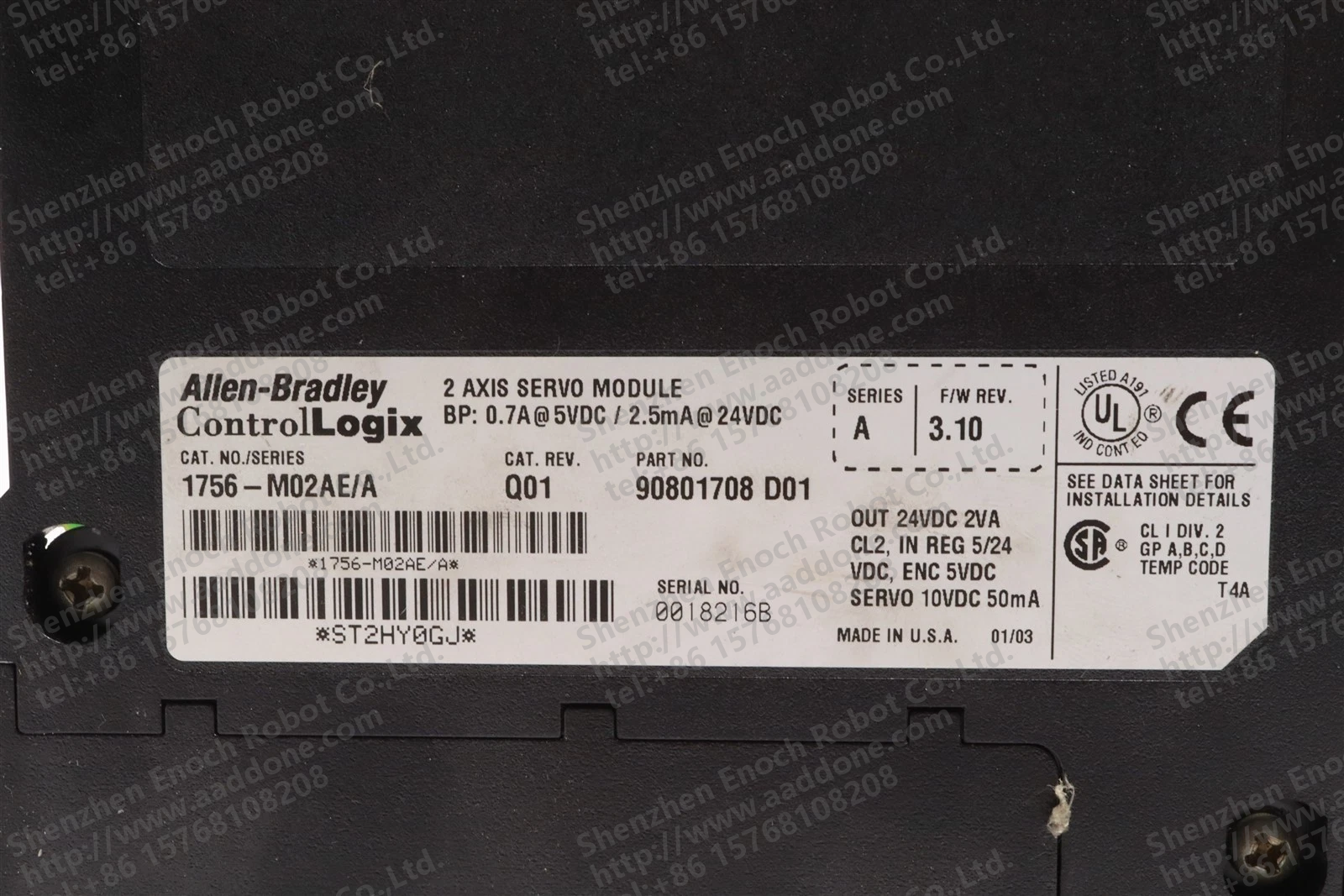

Specifications:

• Part Number: 1756-M02AE/A
• Series: A
• Firmware Revision: 3.10
• Input Voltage: 5VDC / 24VDC
• Output Voltage: 24VDC 2VA
• Servo Voltage: 10VDC 50mA
• Encoders: 5VDC
• Manufactured In: U.S.A.
• Manufacture Date: 01/03

Applications:

This module is ideal for a variety of industrial automation applications, including but not limited to:

• Robotic arms and automated assembly lines
• Material handling and packaging systems
• CNC machines and precision manufacturing equipment
• Conveyor systems and automated storage solutions
• Any application requiring precise and synchronized motion control

Benefits:

• Enhanced Productivity: By providing precise control over servo motors, this module helps increase production efficiency and reduce downtime.
• Cost-Effective Solution: As a pre-owned unit, it offers a cost-effective alternative without compromising on performance or reliability.
• Easy Integration: Designed to work seamlessly with the ControlLogix system, minimizing installation time and effort.
• Reliability: Built to stringent industrial standards, ensuring consistent performance even in demanding environments.
• Support and Documentation: Comes with comprehensive documentation and support resources for easy setup and troubleshooting.
