Product Description
The Yaskawa Servopack SGDV-550A11A is a high-performance industrial servo drive designed for precision motion control in demanding automation applications. This robust unit features a compact, stackable design with a durable beige casing and integrated cooling system, including a fan and heat sink for optimal thermal management.
- Key Features:
- 3-phase AC input (200-230V, 50/60Hz) with 37A capacity
- 3-phase AC output (0-230V, 0-400Hz) providing up to 7.5kW power
- Damaged terminal barriers requiring attention
- IP10 protection rating for dust protection
- Comprehensive safety warnings and grounding requirements
- Multiple communication ports including RS-232, CANopen, and Ethernet
- Stackable design for space-efficient installations
- CE, TÜV SÜD, UL Listed, and other international certifications

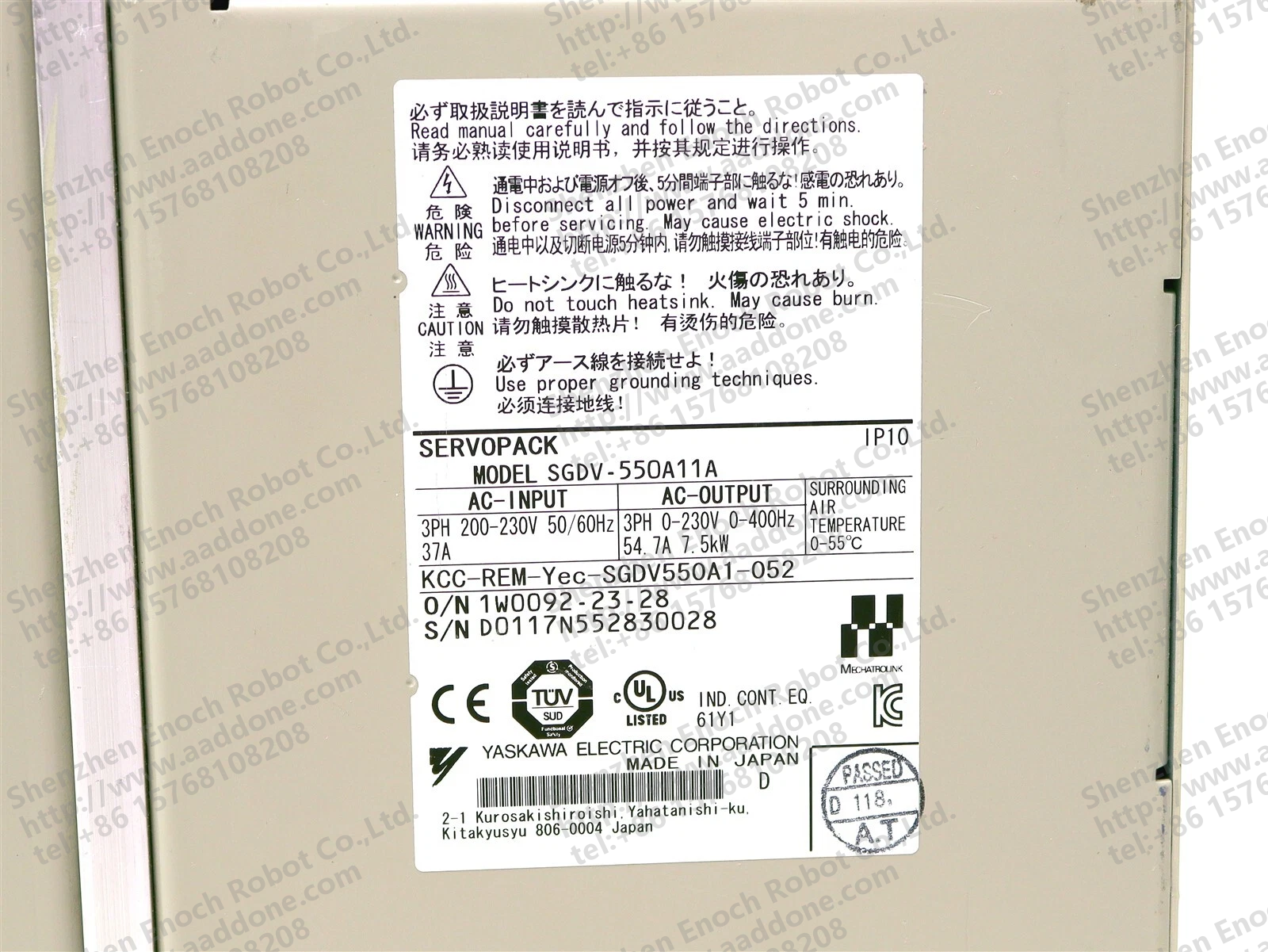

Specifications:
- Model: SGDV-550A11A
- Input Voltage: 3PH 200-230V 50/60Hz
- Input Current: 37A
- Output Voltage: 3PH 0-230V 0-400Hz
- Output Power: Up to 7.5kW
- Protection Rating: IP10
- Operating Temperature: 0-55°C
- Weight: Approximately 15kg
Applications:
- Industrial automation systems
- Motion control in manufacturing processes
- Robotics and CNC machinery
- Conveyor systems and packaging equipment
- Material handling and assembly lines
- Automated testing and inspection systems
Benefits:
- High efficiency and reliability for continuous operation
- Compact design saves valuable floor space <
- Advanced control capabilities for precise positioning
- Robust construction withstands harsh industrial environments
- Easy integration with existing automation systems
- Comprehensive safety features for operator protection
- Cost-effective solution for industrial motion control needs
