Product Description
Schneider Electric CA4KN 40BW3 Contact Block is a high-performance industrial component designed for reliable operation in demanding electrical applications. This contact block, part of the renowned TeSys series, offers robust performance and versatility for use in commercial and industrial settings.
Product Features:
- Rated Voltage: 24V DC for precise control in low-voltage systems
- Current Rating: 10A continuous current with auxiliary contacts rated at A600-Q600

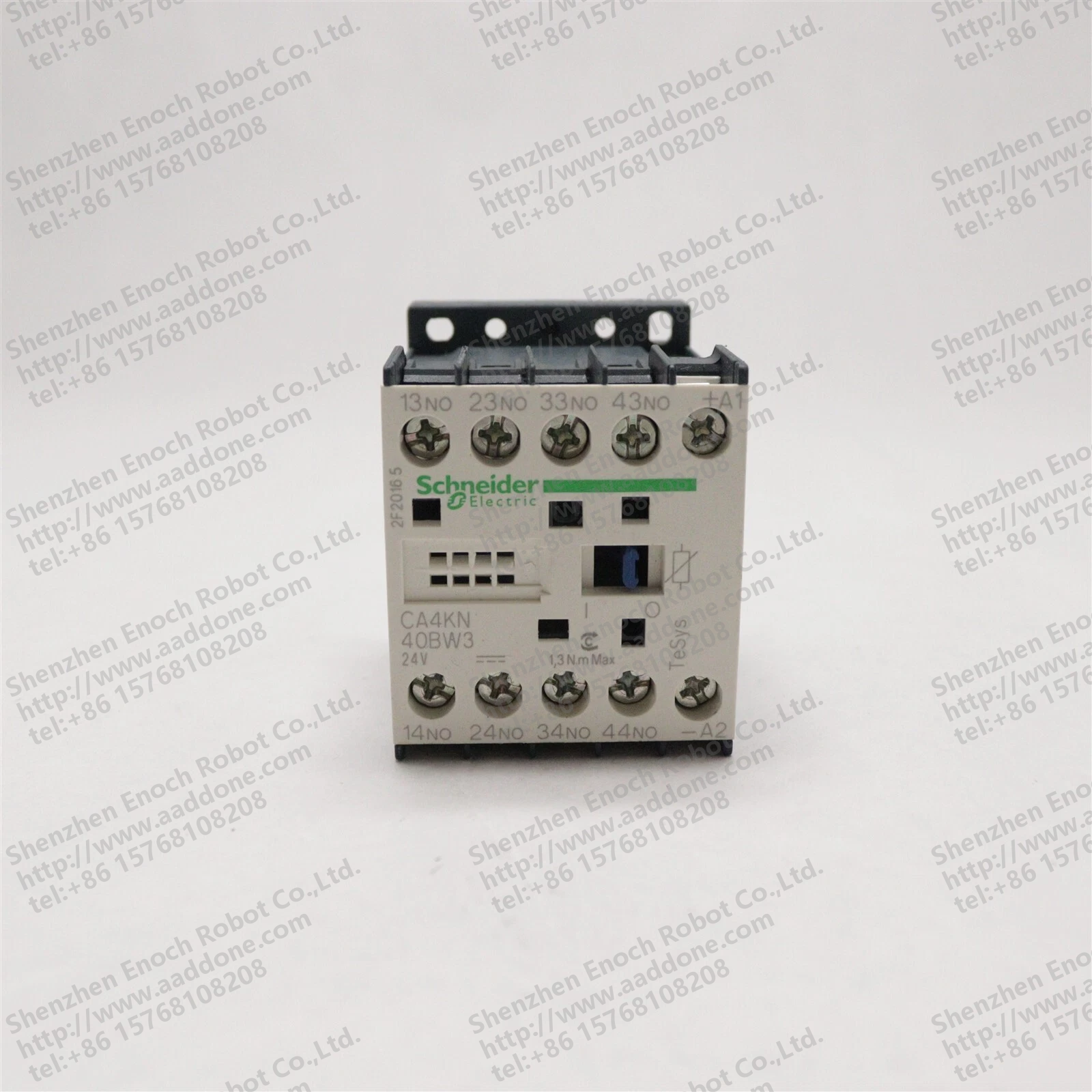

- Terminal Configuration: Multiple screw terminals (13NO, 23NO, 33NO, 43NO, 14NO, 24NO, 34NO, 44NO) for flexible wiring options
- Construction: Durable plastic housing with heat dissipation fins for enhanced thermal management
- Mounting: Easy DIN rail mounting for quick installation in control panels
- Compliance: Meets international standards including UL, CE, CCC, and EAC certifications
- Applications: Ideal for use in motor control circuits, automation systems, and industrial machinery
Specifications:

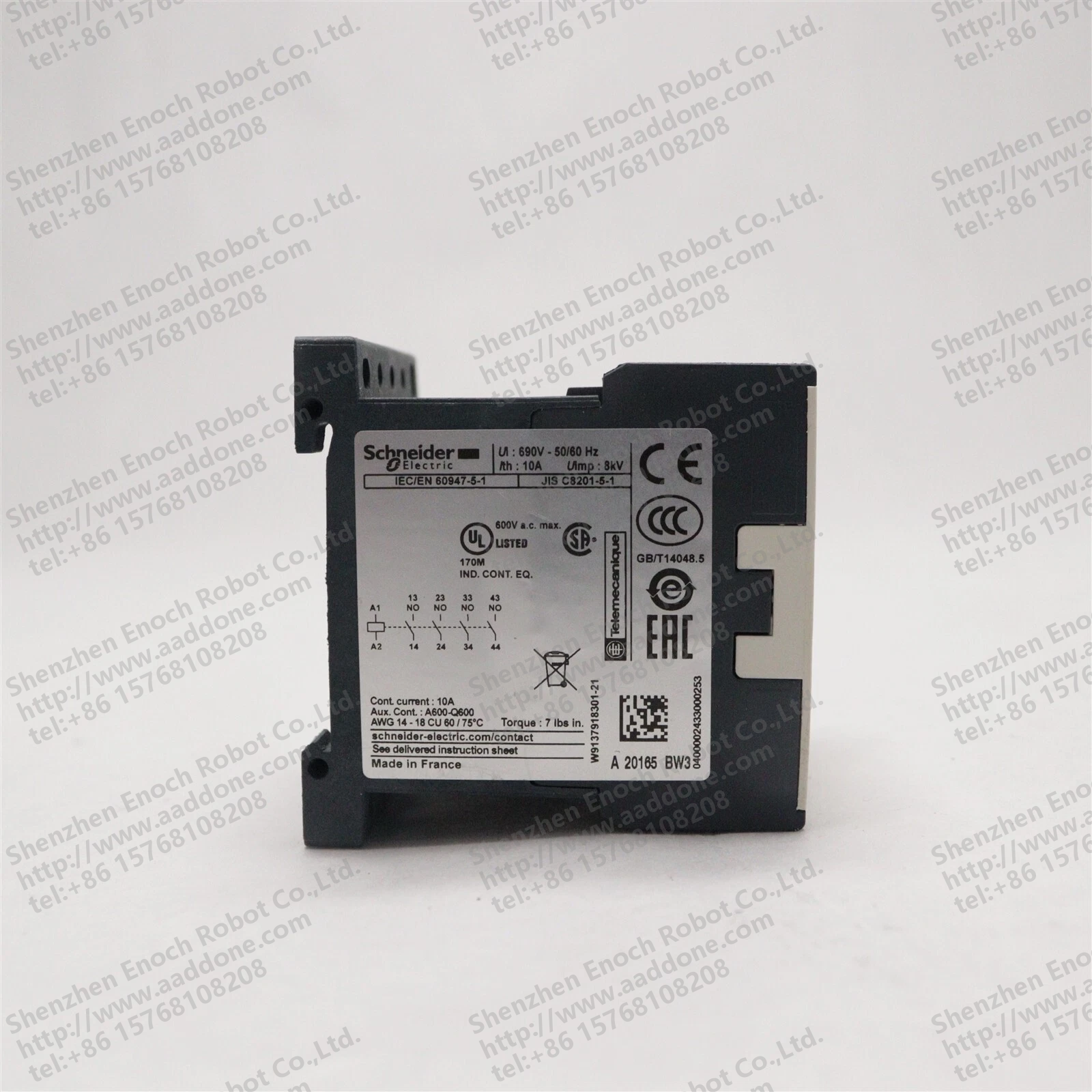

- Voltage Rating: 690V AC maximum
- Frequency Range: 50/60 Hz
- Insulation Resistance: 170MΩ minimum
- Dielectric Strength: 8kV
- Operating Temperature: -5°C to +55°C
- Weight: Approximately 7 lbs
- Manufactured In: France
Benefits:
- Reliability: Built to withstand harsh industrial environments with superior durability
- Efficiency: Optimized design for energy-efficient operation in various applications
- Compatibility: Designed to integrate seamlessly with Schneider Electric's TeSys contactor systems
- Cost-Effective: Offers excellent value with its robust construction and long service life
- Easy Maintenance: Accessible terminal connections for simple installation and servicing
