西门子 1 POLE 25 AMP CIRCUIT BREAKER amp AUXILARY 5ST301 AS 5SJ4125-7HG41

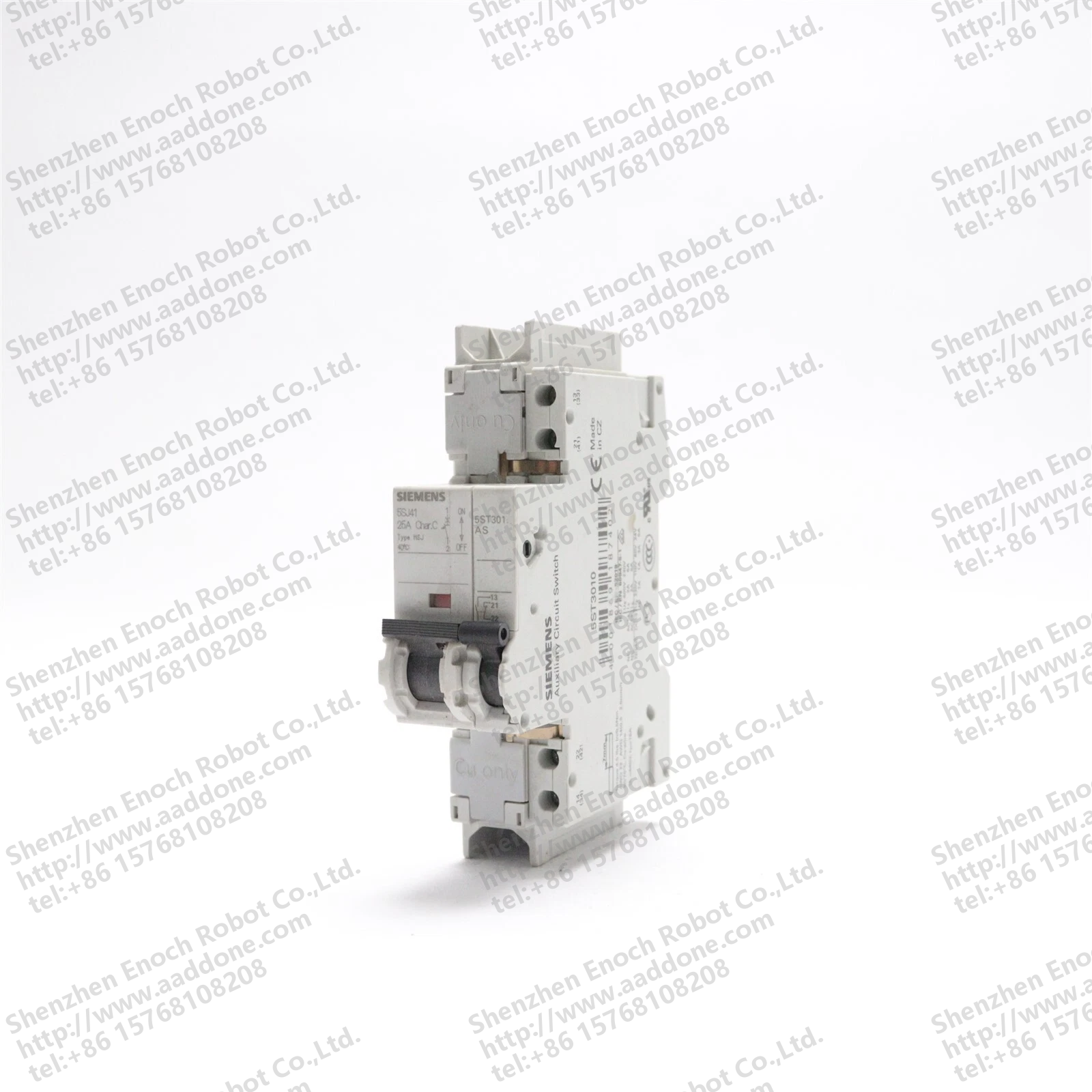

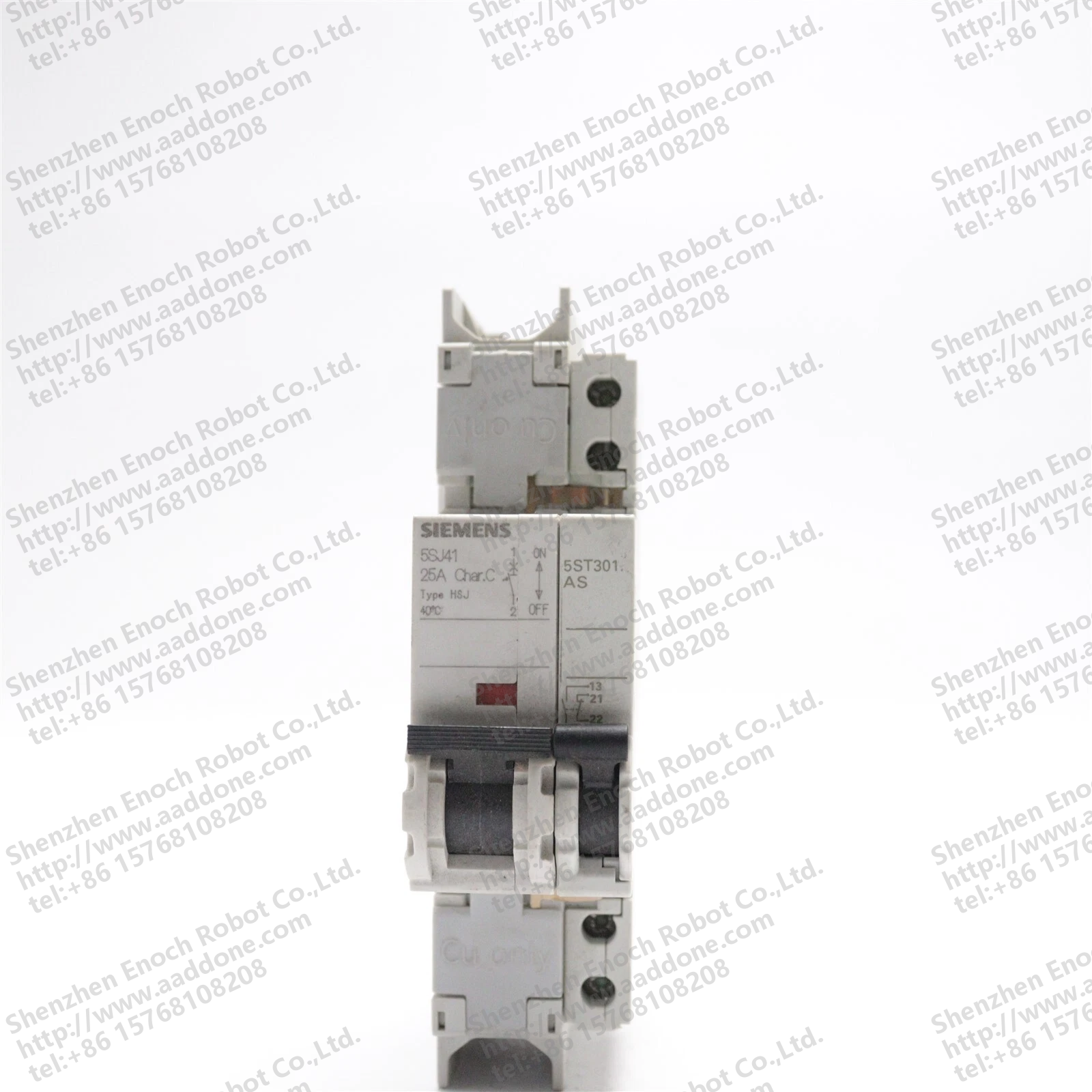

Siemens 5SJ4125-7HG41 1 Pole 25 Amp Circuit Breaker with Auxiliary Switch

The Siemens 5SJ4125-7HG41 is a high-performance, single-pole circuit breaker designed for robust industrial and commercial applications. This reliable electrical component provides precise overcurrent protection, ensuring the safety and longevity of connected equipment.

Product Features:

• Rated Current: 25 Amps
• Rated Voltage: 230/400V AC
• Interrupting Capacity: 10kA at 230V, 7.5kA at 400V
• Thermal Magnetic Tripping Characteristic (Type H&J)
• Compact Design for Easy Installation in Control Panels
• Integrated Auxiliary Switch for Status Monitoring
• CE Certified and Made in Germany for Quality Assurance
• Compatible with AWG 14 to AWG 4 Copper Wiring
• Operating Temperature Range: -40°C to +75°C
• Robust Construction for Long-Term Durability

Specifications:

• Model Number: 5SJ4125-7HG41

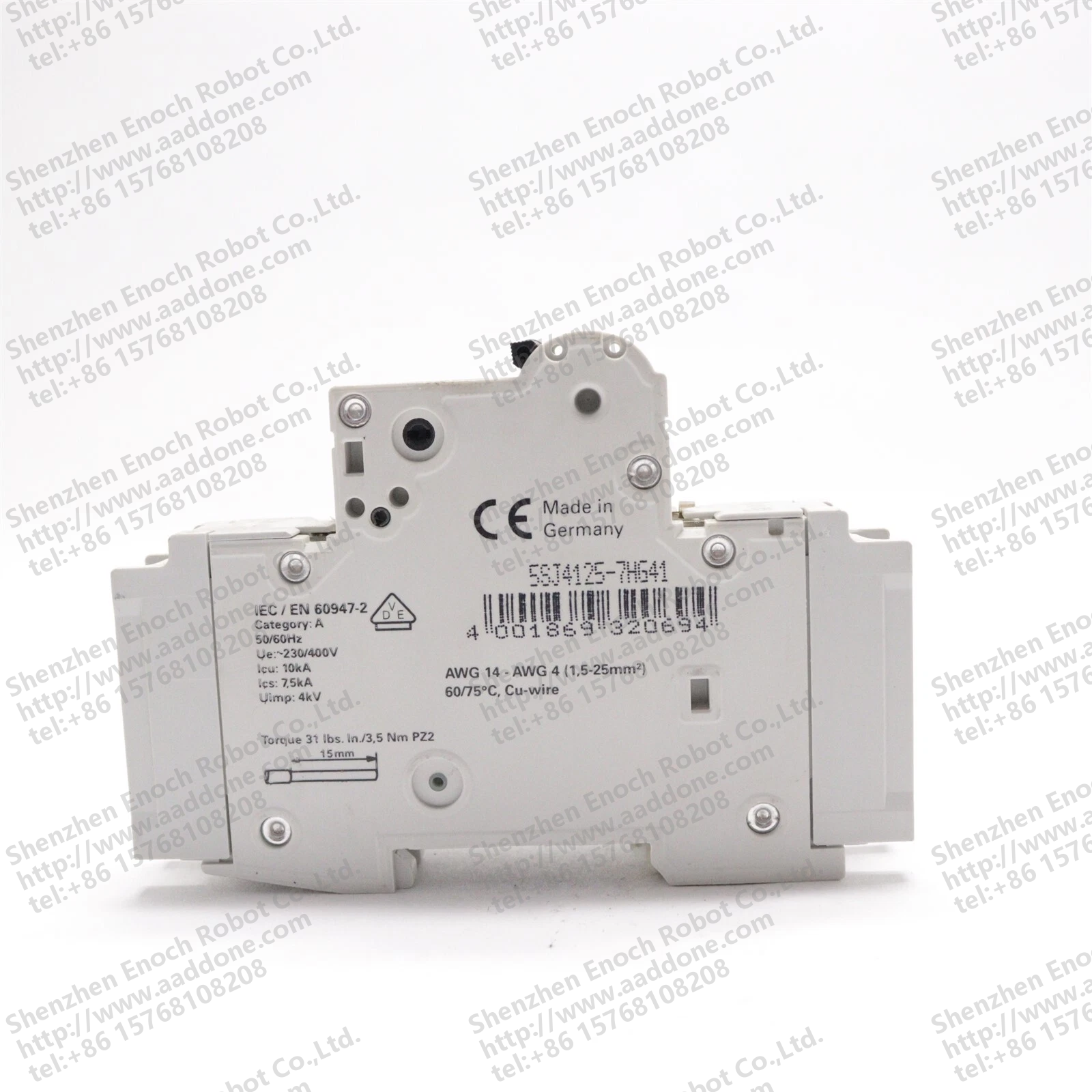

• Category: IEC/EN 60947-2, Category A
• Frequency: 50/60Hz
• Insulation Voltage: 4kV
• Torque Requirement: 31 lbs. in./3.5 Nm PZ2
• Dimensions: Compact and Panel-Mountable

Applications:

• Industrial Control Systems
• Commercial Electrical Panels
• Automation Equipment Protection
• Power Distribution Units
• Manufacturing Machinery Safety

Benefits:

• Enhanced Safety: Protects circuits from overload and short-circuit faults
• Reliability: Built to withstand harsh industrial environments
• Efficient Monitoring: Auxiliary switch enables real-time status tracking
• Compliance: Meets international safety and performance standards
• Cost-Effective: Durable design reduces maintenance and replacement costs
