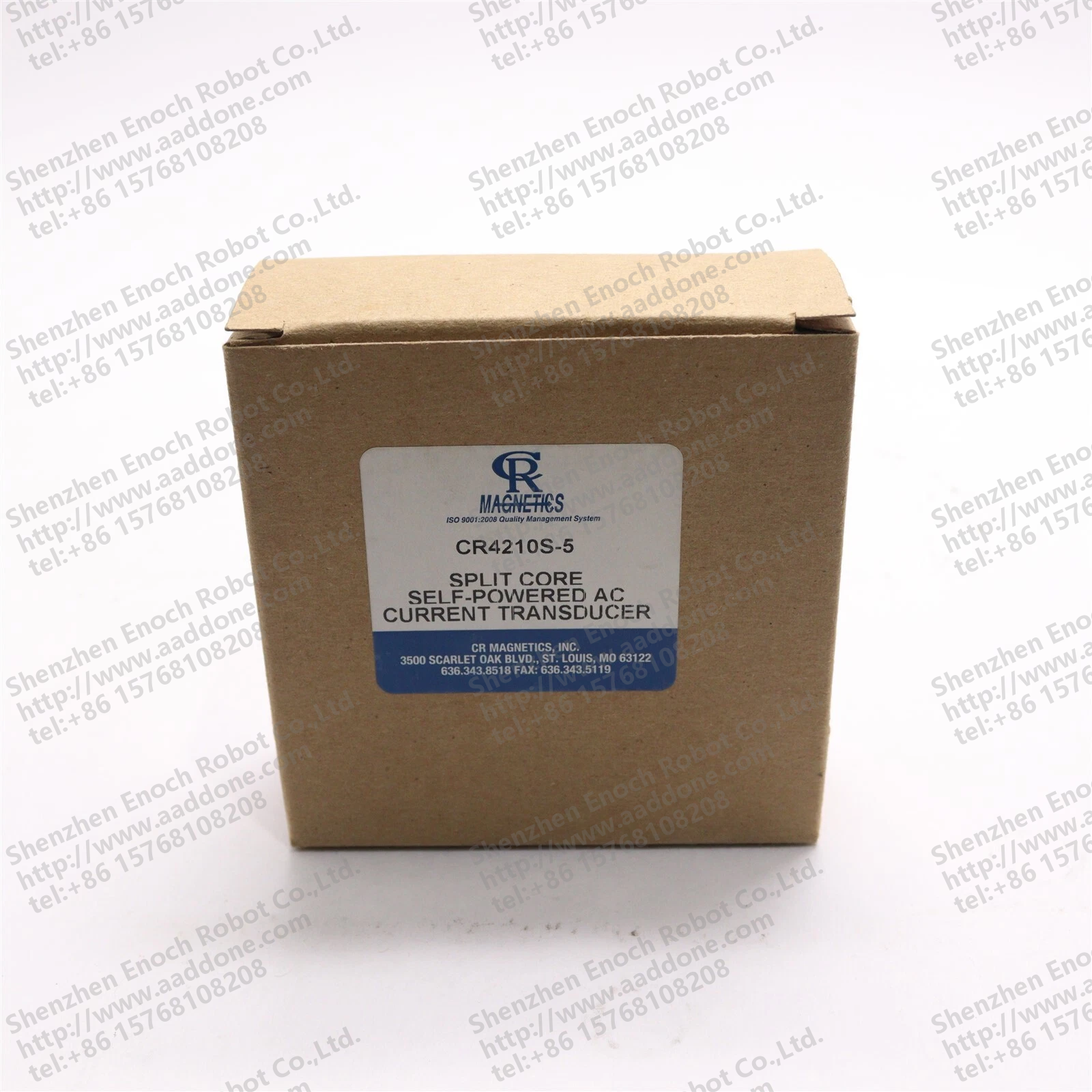

CR 磁性分流核心自供电变压器 CR4210S-5

CR4210S-5 Split Core Self-Powered AC Current Transducer by CR Magnetics is a high-precision industrial-grade device designed for accurate current measurement in demanding automation and control applications. This compact, modular unit features a split-core design for easy installation around existing conductors without interrupting the circuit.

• Key Features:
• True RMS measurement for precise AC current monitoring
• Self-powered operation requiring only +24 VDC supply
• Input range: 0-5 AAC with output signal of 4-20 mA DC
• Durable green housing with screw terminal connections for secure wiring
• Compact size suitable for panel mounting or DIN rail installation
• ISO 9001:2008 certified quality management system

Specifications:

• Model: CR4210S-5
• Input: 0-5 AAC
• Output: 4-20 mA DC
• Supply Voltage: +24 VDC
• Housing Color: Green
• Mounting: Panel/DIN Rail
• Dimensions: [Insert specific dimensions if visible in image]
• Weight: [Insert weight if visible in image]

Applications:

• Industrial automation systems
• Motion control circuits
• Energy monitoring and management
• Process control systems
• PLC (Programmable Logic Controller) integration
• Motor control and protection
• Power distribution monitoring

Benefits:

• Non-intrusive installation with no need to disconnect power
• High accuracy and reliability for critical measurements
• Wide operating temperature range for versatile use
• Robust construction for long-term performance in harsh environments
• Easy integration with existing control systems
• Comprehensive documentation and support from CR Magnetics
