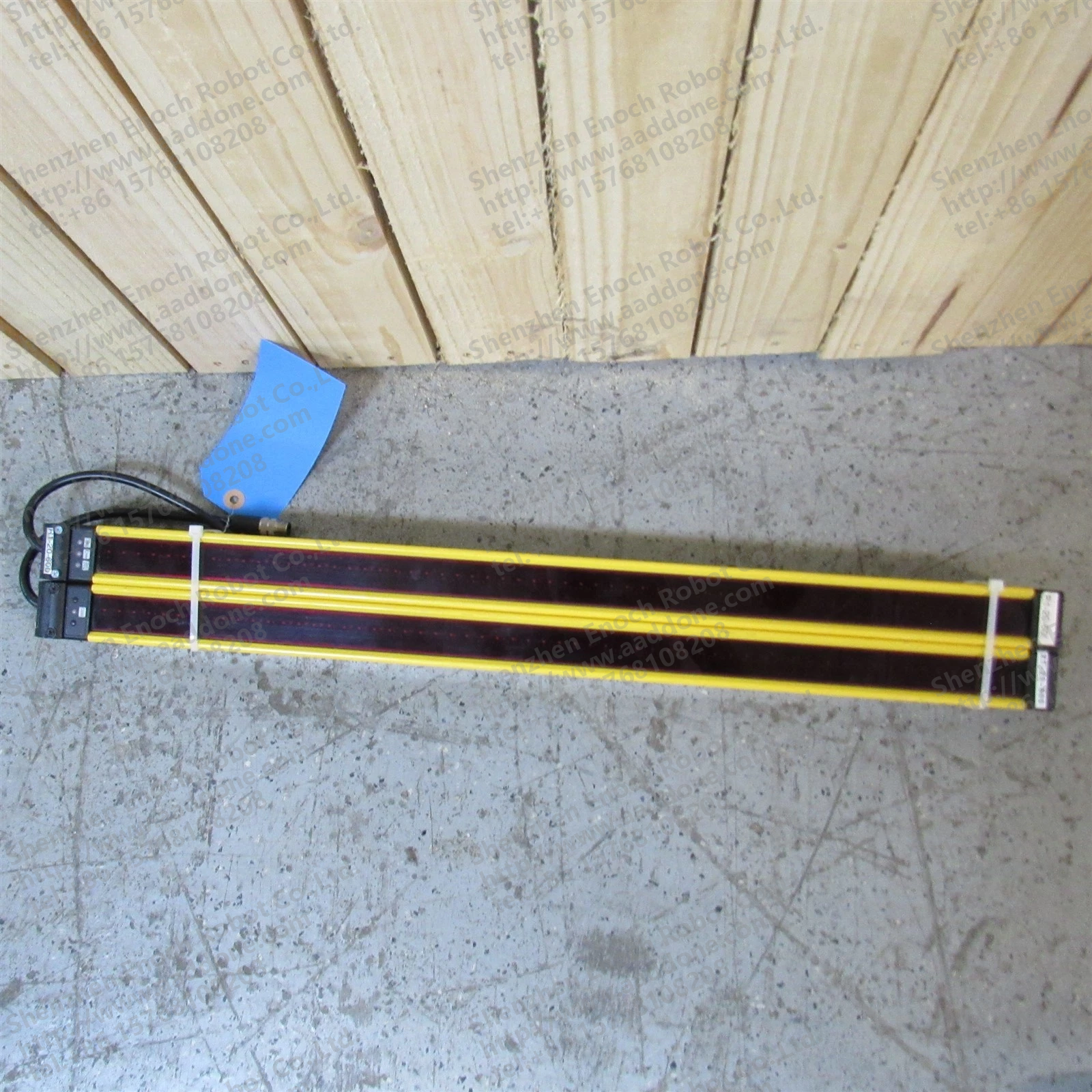

OMRON STI LIGHT CURTAIN MINISAFE SET 600MM MS4800S-20-0600-R MS4800S-20-0600-X

The OMRON STI Light Curtain MiniSafe Set MS4800S-20-0600-R MS4800S-20-0600-X is a high-performance safety light curtain designed for industrial automation and motion control applications. This set includes both a transmitter and receiver unit, providing reliable detection and protection in various industrial environments.

Product Features:

• 600mm Detection Range: Offers an extended detection area to ensure comprehensive safety coverage.
• IP65 Rating: Provides robust protection against dust and water ingress, making it suitable for harsh industrial conditions.
• Fast Response Time: With a response time of 23-38ms, this light curtain ensures quick detection and reaction for enhanced safety.
• Compact Design: The mini-safe set is designed for easy integration into existing machinery and systems without requiring significant space.
• Standard Transmitter and Receiver: Includes both units for complete functionality, ensuring accurate object detection and safety monitoring.
• CE and CSA Certified: Meets international safety standards, providing assurance of quality and reliability.

Specifications:

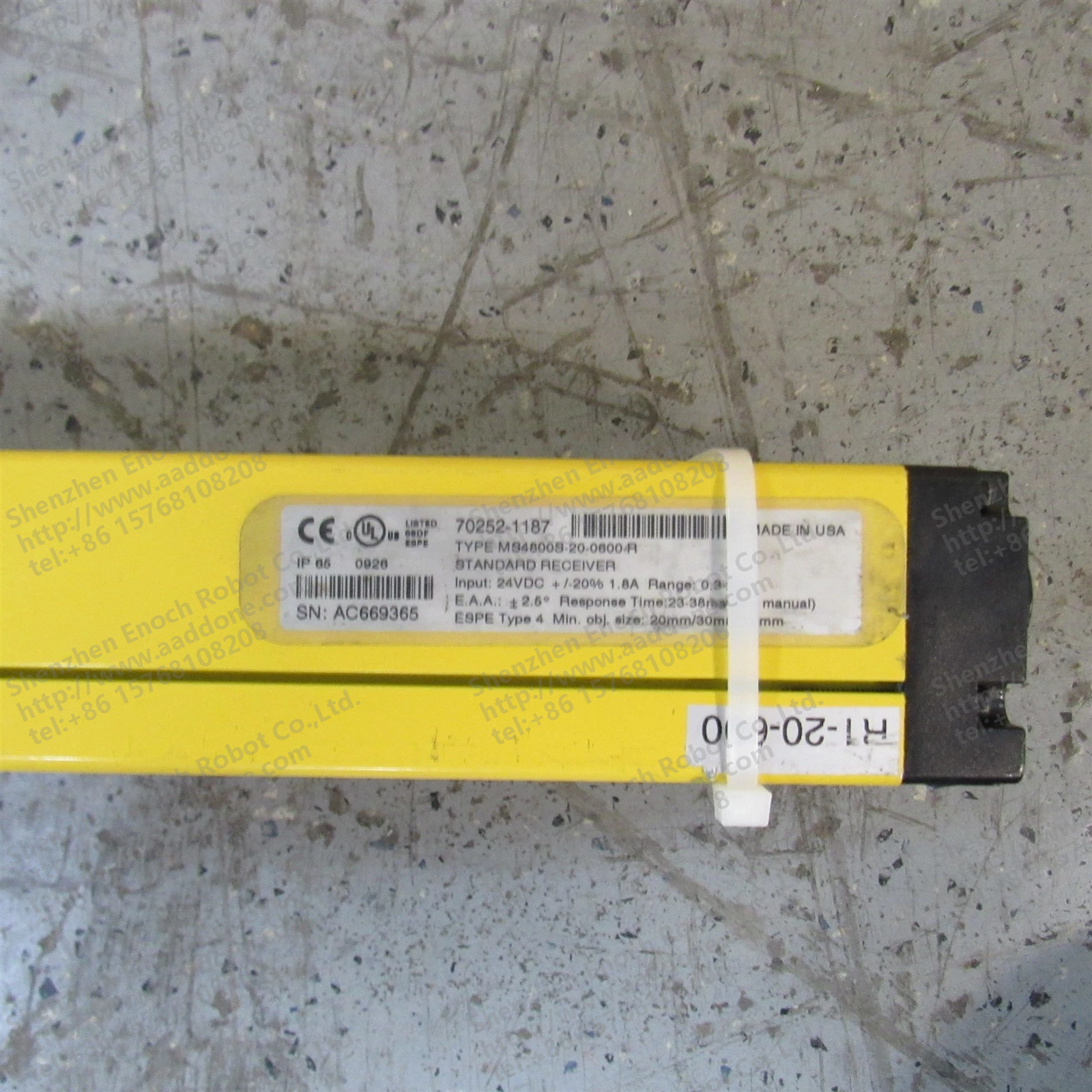

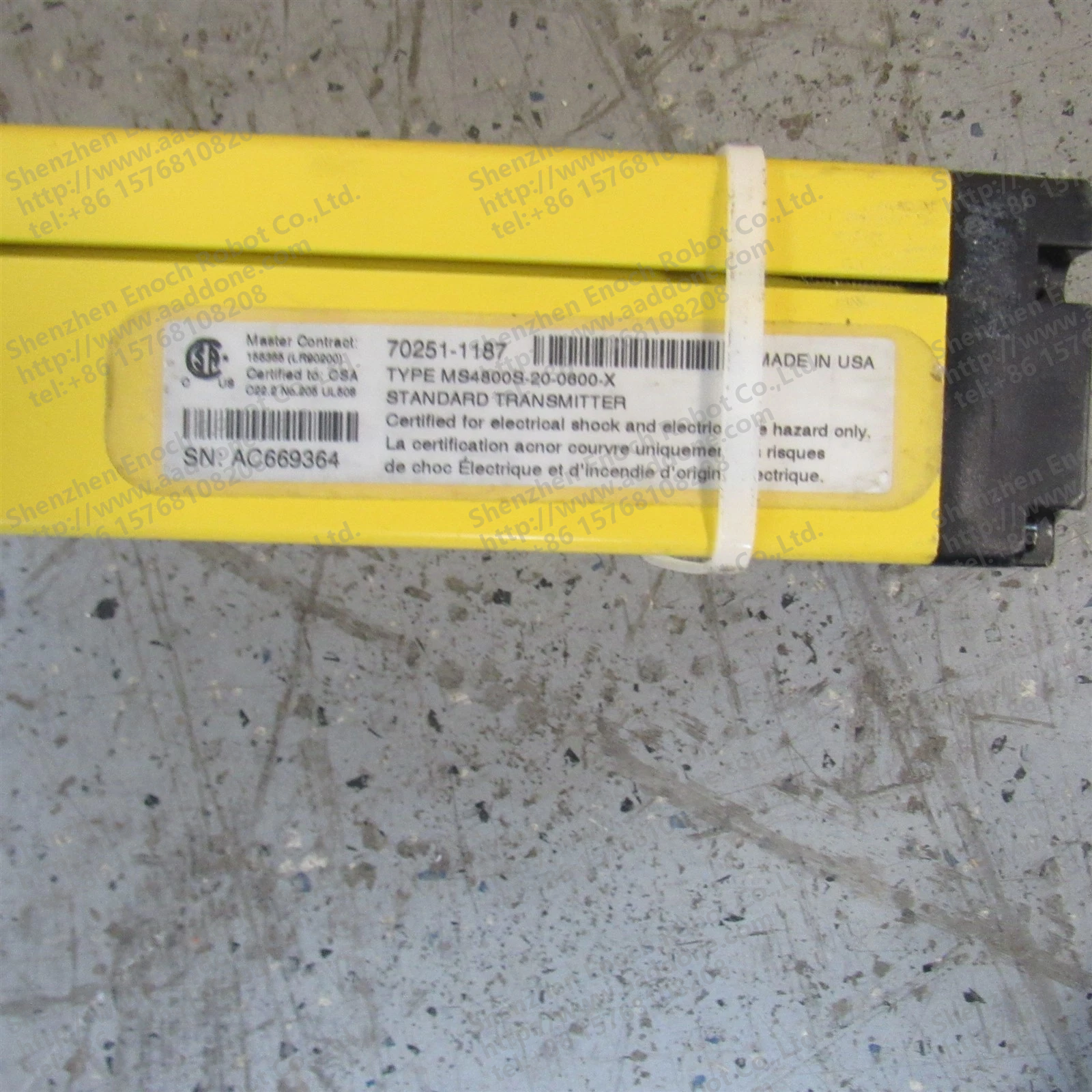

• Model Number: MS4800S-20-0600-R (Receiver), MS4800S-20-0600-X (Transmitter)
• Detection Range: 0.3m - 6.0m
• Input Voltage: 24VDC +/-20%
• Current Consumption: 1.8A
• Response Time: 23-38ms
• Minimum Object Size: 20mm / 30mm
• Protection Rating: IP65
• Manufactured In: USA

Applications:

• Machinery Safety: Ideal for safeguarding operators from moving parts in industrial machinery.
• Automated Systems: Enhances safety in automated production lines and robotic systems.
• Material Handling: Protects workers in areas where materials are transported or processed.
• Assembly Lines: Ensures safety in assembly operations by detecting the presence of objects or personnel.
• Industrial Automation: Integrates seamlessly into automated systems for enhanced safety and efficiency.

Benefits:

• Enhanced Safety: Provides reliable detection to prevent accidents and protect workers.
• High Durability: Built to withstand harsh industrial environments with its IP65 rating.
• Quick Installation: Compact design allows for easy installation and integration into existing systems.
• Compliance: Meets international safety standards, ensuring compliance with industry regulations.
• Cost-Effective: Offers a reliable and efficient solution for industrial safety at a competitive price.
