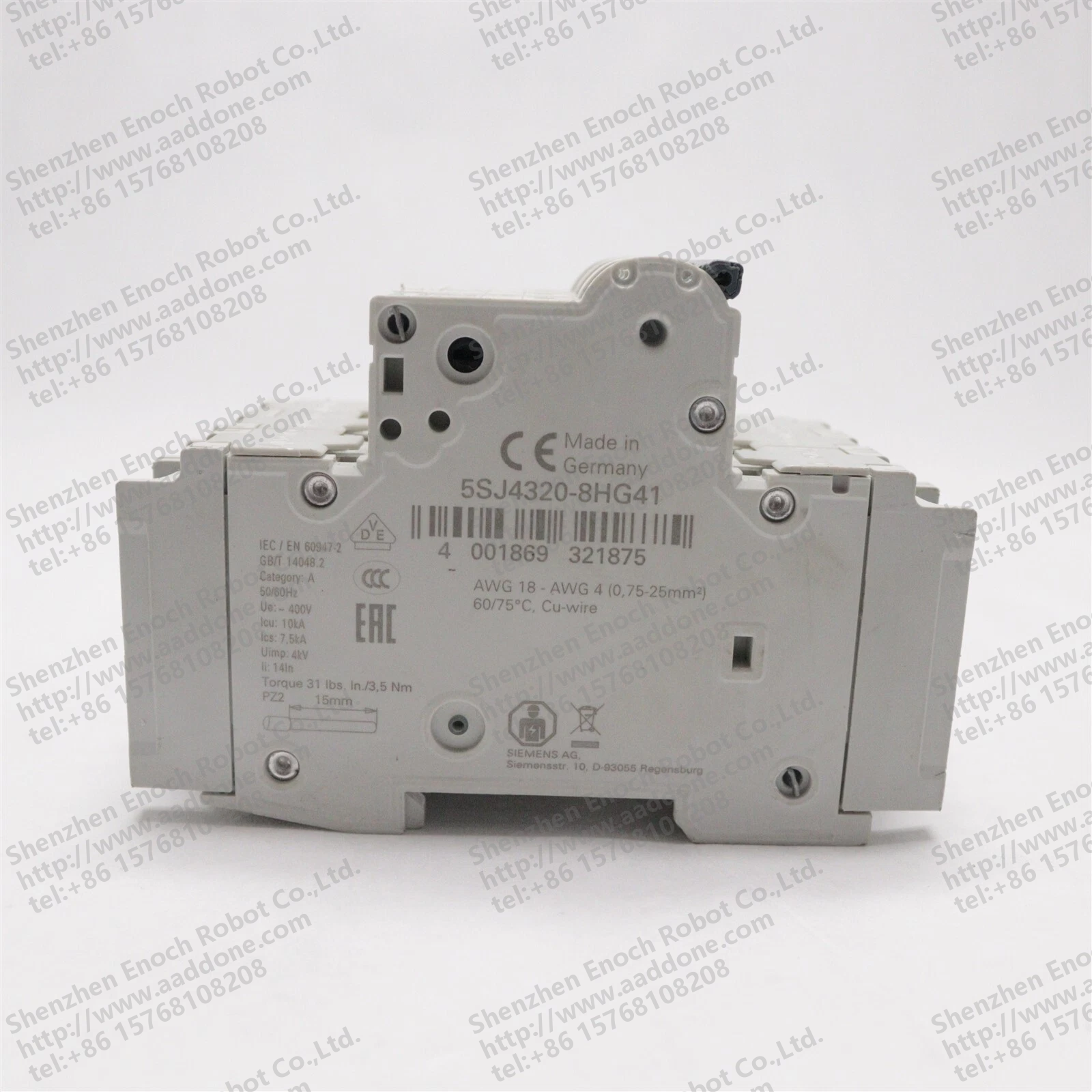

西门子 3 POLE 20 AMP CIRCUIT BREAKER 5SJ4320-8HG41

The Siemens 3 Pole 20 Amp Circuit Breaker, model 5SJ4320-8HG41, is a robust and reliable electrical protection device designed for commercial and industrial applications. This high-quality circuit breaker ensures the safety and efficiency of electrical systems by providing precise overload and short-circuit protection.

Product Features:

• 3 Pole Configuration: Offers comprehensive protection for three-phase electrical systems.
• 20 Amp Rating: Designed to handle a current capacity of 20 amperes, suitable for various industrial loads.
• D Type Curve: Provides delayed tripping characteristics, ideal for applications with high inrush currents.
• Compact Design: Space-saving design allows for easy installation in tight electrical panels.
• Durable Construction: Made from high-grade materials to withstand harsh industrial environments.
• CE and EAC Certified: Complies with international safety and quality standards.

Specifications:

• Model: 5SJ4320-8HG41
• Poles: 3
• Ampere Rating: 20A
• Voltage Rating: 400V
• Frequency: 50/60Hz
• Interrupting Capacity: 10kA at 400V
• Wire Size: AWG 18 - AWG 4 (0.75-25mm²)
• Temperature Range: 60/75°C
• Material: High-grade plastic and copper components

Applications:

This Siemens circuit breaker is ideal for use in a variety of commercial and industrial settings, including manufacturing plants, data centers, retail stores, and office buildings. It is particularly suited for protecting motors, lighting circuits, and other critical electrical systems that require reliable overload and short-circuit protection.

Benefits:

• Enhanced Safety: Protects electrical systems from damage caused by overloads and short circuits.
• Reliability: Ensures consistent performance and long service life even in demanding environments.
• Easy Installation: User-friendly design simplifies the installation process, reducing downtime.
• Cost-Effective: Provides a durable and efficient solution for electrical protection, reducing maintenance costs.
• Compliance: Meets international safety standards, ensuring compliance with regulatory requirements.
