MOOG 无刷伺服电机 G4L05 G404-111

The MOOG G4L05 G404-111 is a high-performance, brushless servo motor from the renowned G400 Series, designed for demanding industrial automation and motion control applications. This robust motor combines precision engineering with durability, making it an ideal choice for a wide range of industrial processes.

Product Features:

• Brushless Design: Ensures long service life and minimal maintenance requirements.
• High Torque Density: Delivers exceptional power in a compact form factor.
• IP65 Rating: Provides excellent protection against dust and water ingress, suitable for harsh industrial environments.
• CE Certified: Complies with European safety and performance standards.
• Robust Construction: Features a durable metal housing with cooling fins for optimal heat dissipation.
• Multiple Connection Options: Equipped with various connectors for easy integration into existing systems.

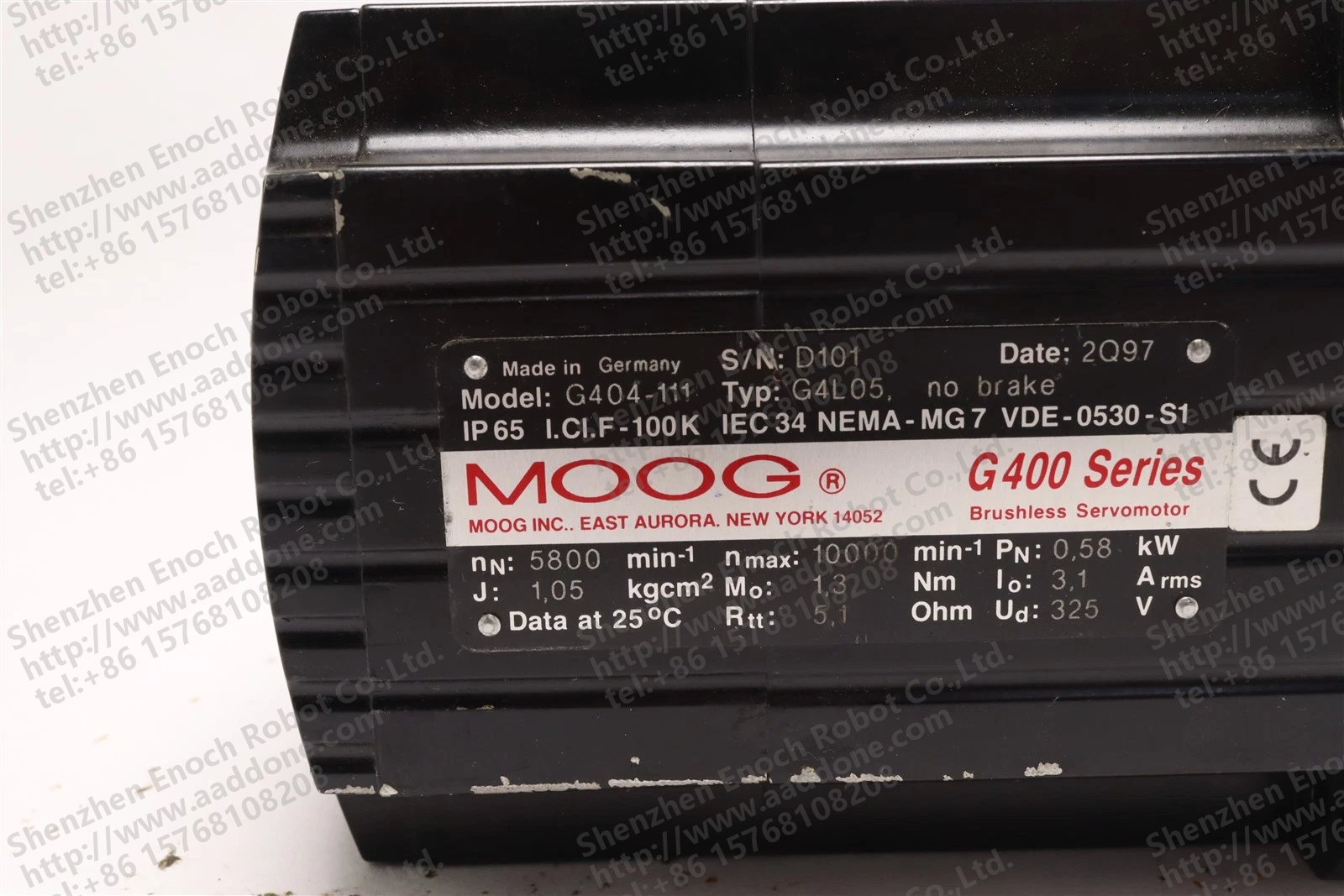

Specifications:

• Model: G404-111
• Type: G4L05, no brake
• Rated Power: 0.58 kW
• Rated Speed: 5800 min⁻¹
• Maximum Speed: 10000 min⁻¹
• Rated Torque: 1.3 Nm
• Peak Torque: 3.1 Nm
• Inertia: 1.05 kgcm²
• Voltage: 325 V
• Current: 5.1 Arms
• Protection Rating: IP65
• Manufactured In: Germany
• Serial Number: D101
• Date Code: 2Q97

Applications:

• Automated Assembly Lines
• Robotics and CNC Machines
• Material Handling Systems
• Printing and Packaging Equipment
• Medical Device Manufacturing
• Test and Measurement Equipment

Benefits:

• Enhanced Precision: Delivers accurate and repeatable motion control for critical applications.
• Increased Efficiency: Optimized design reduces energy consumption and operating costs.
• Reliability: Built to withstand continuous operation in challenging industrial settings.
• Easy Integration: Compatible with a wide range of controllers and systems for seamless implementation.
• Cost-Effective: Offers superior performance at a competitive price point compared to similar models.
