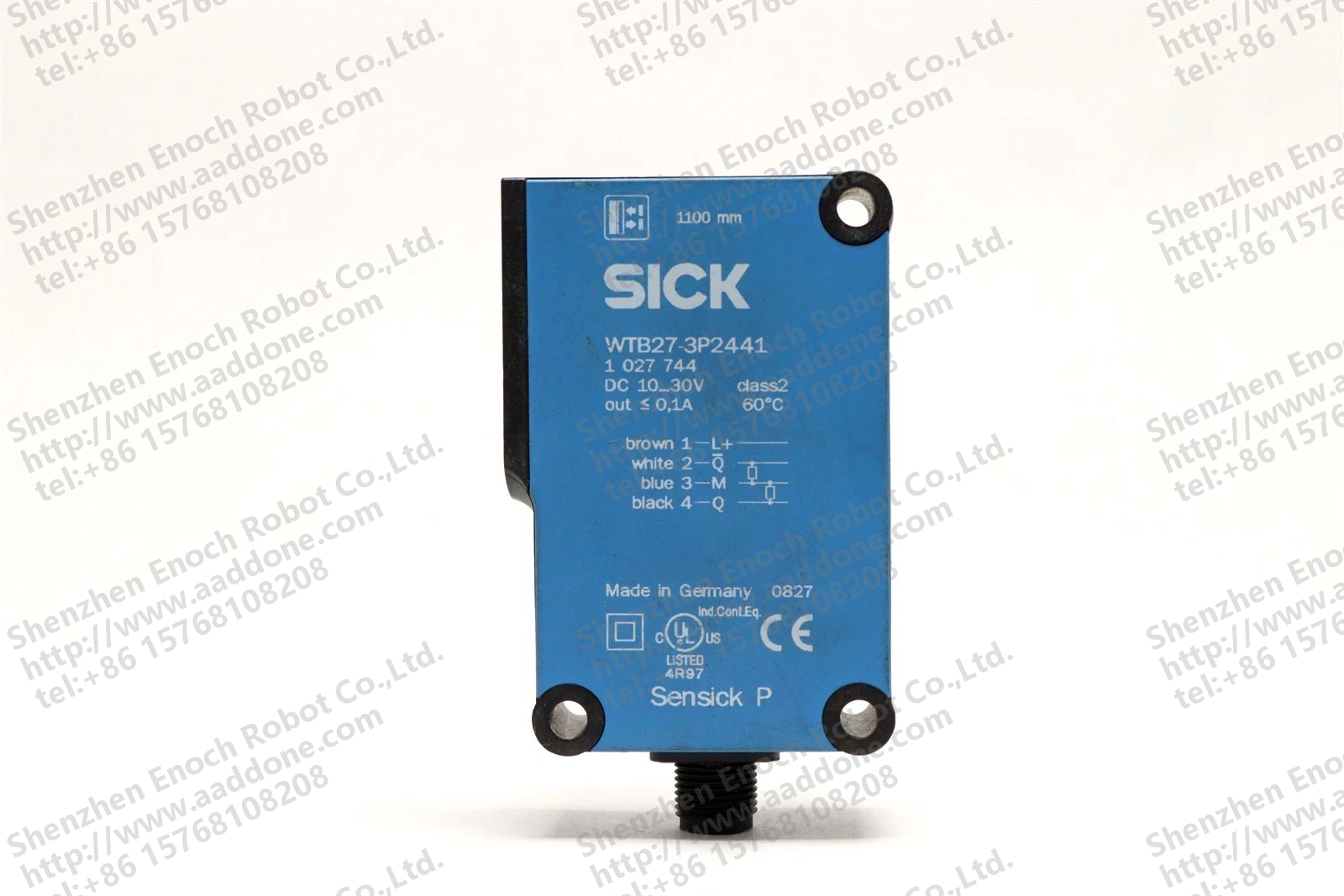

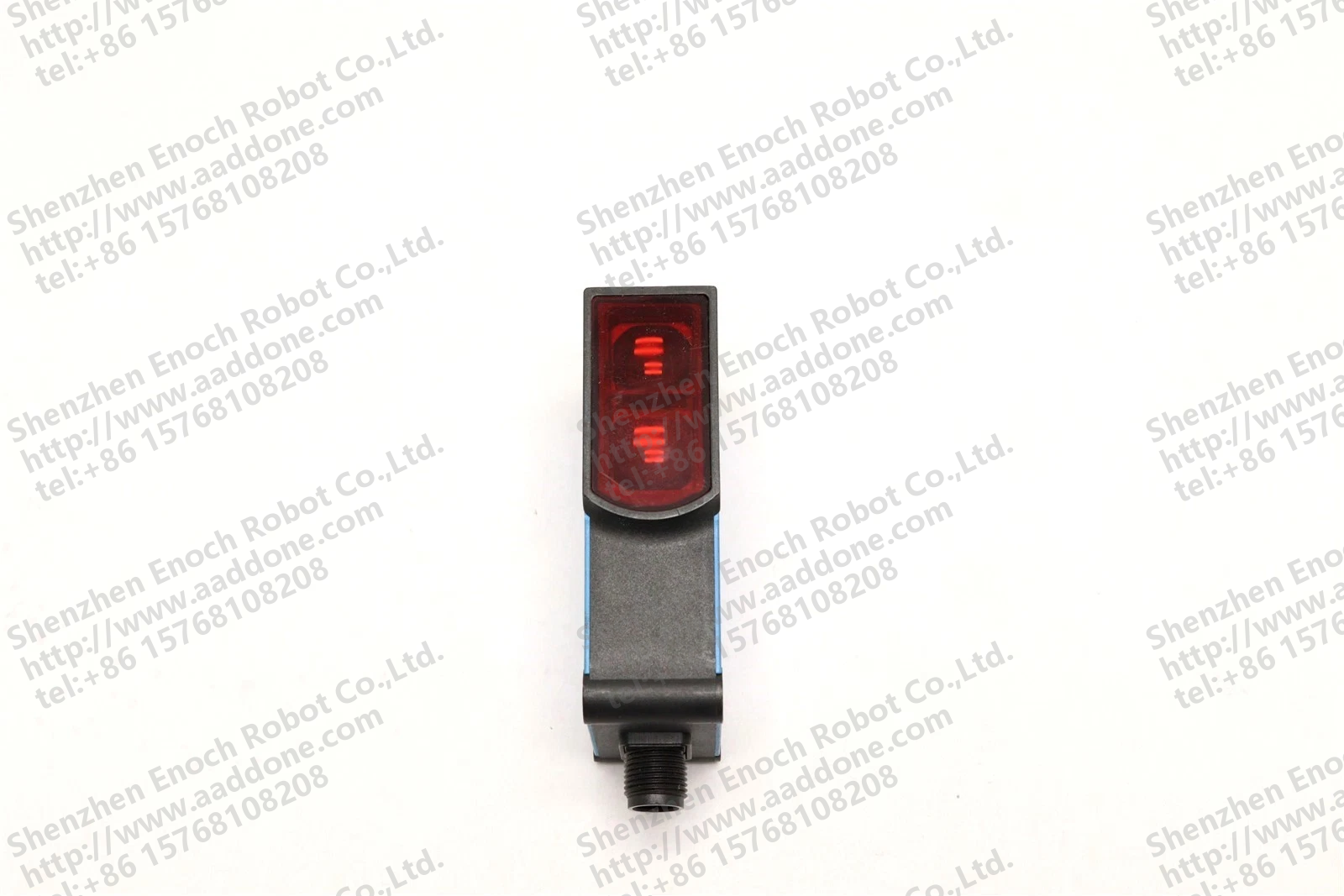

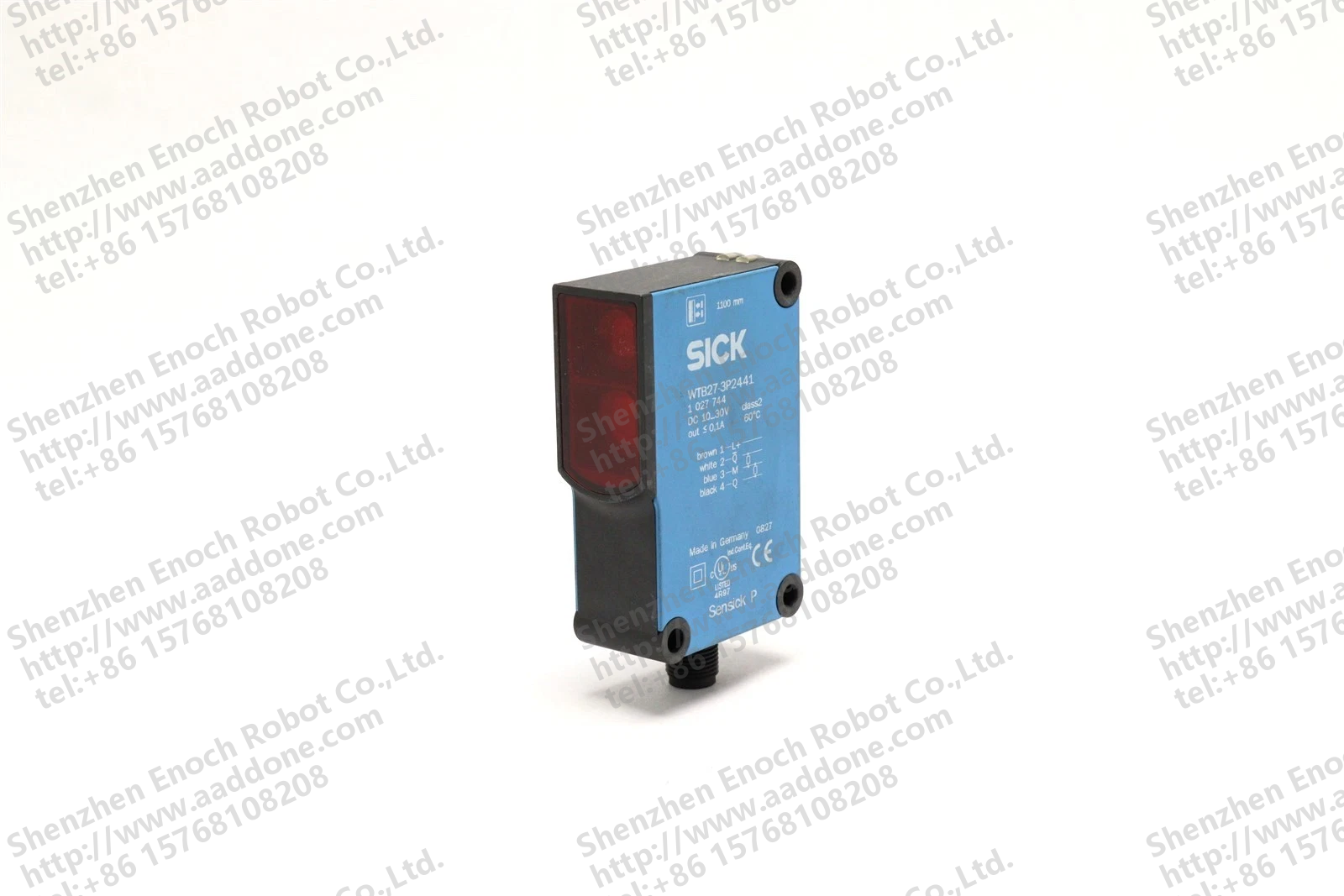

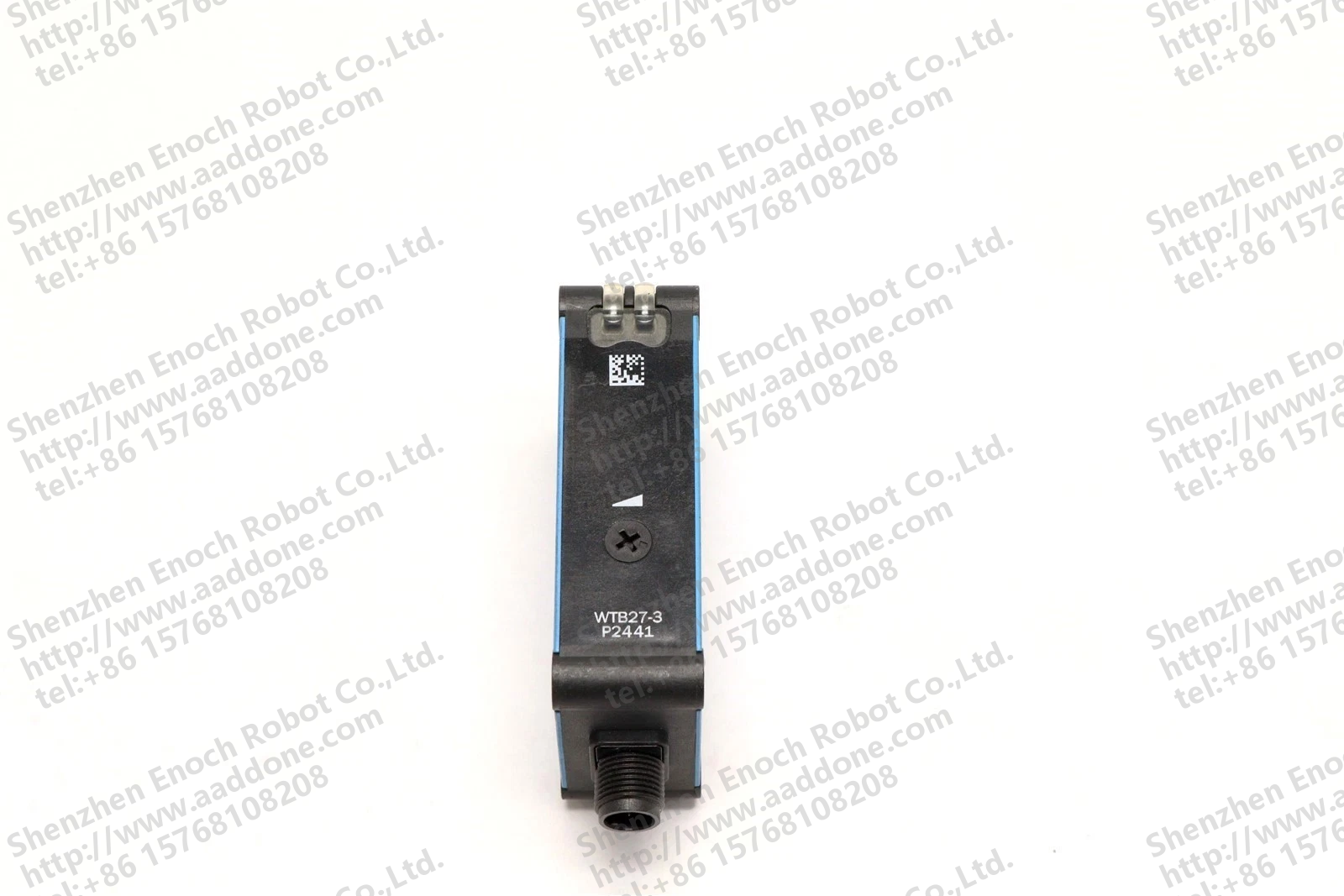

SICK 光电处理器传感器 WTB27-3P2441

The SICK WTB27-3P2441光电处理器传感器 is a high-performance industrial component designed for precise object detection and monitoring in automated systems. This robust sensor combines advanced optical technology with durable construction, making it ideal for demanding industrial environments.

Key Features:

• Advanced optical processing technology for reliable object detection
• Compact rectangular design with blue and black housing for easy integration
• Red LED indicator for clear status visualization
• IP67 rated enclosure for protection against dust and water ingress
• Wide operating temperature range (-25°C to +60°C) for versatile applications
• DC 10-30V power supply compatibility
• Class 2 safety rating for secure operation
• Four-wire connection (brown, white, blue, black) for flexible wiring options
• Made in Germany with UL and CE certifications for quality assurance

Specifications:

• Model: WTB27-3P2441
• Operating Voltage: DC 10-30V
• Output Current: ≤ 0.1A
• Temperature Range: -25°C to +60°C
• Protection Rating: IP67
• Connection Type: Four-wire (L+, Q, M, Q)
• Dimensions: 1100 mm (approximate)
• Weight: Lightweight for easy installation

Applications:

• Automated assembly lines for product detection
• Conveyor systems for object counting and positioning
• Robotic applications for precise object recognition
• Quality control systems for defect detection
• Material handling equipment for level sensing
• Industrial packaging machines for product flow monitoring
• Machine tools for workpiece detection

Benefits:

• Enhanced accuracy and reliability in object detection
• Long-lasting performance in harsh industrial conditions
• Easy installation and maintenance with standard wiring
• Comprehensive safety certifications for secure operation
• Cost-effective solution for industrial automation needs
• Consistent performance across wide temperature ranges
• Future-proof design compatible with modern automation systems
