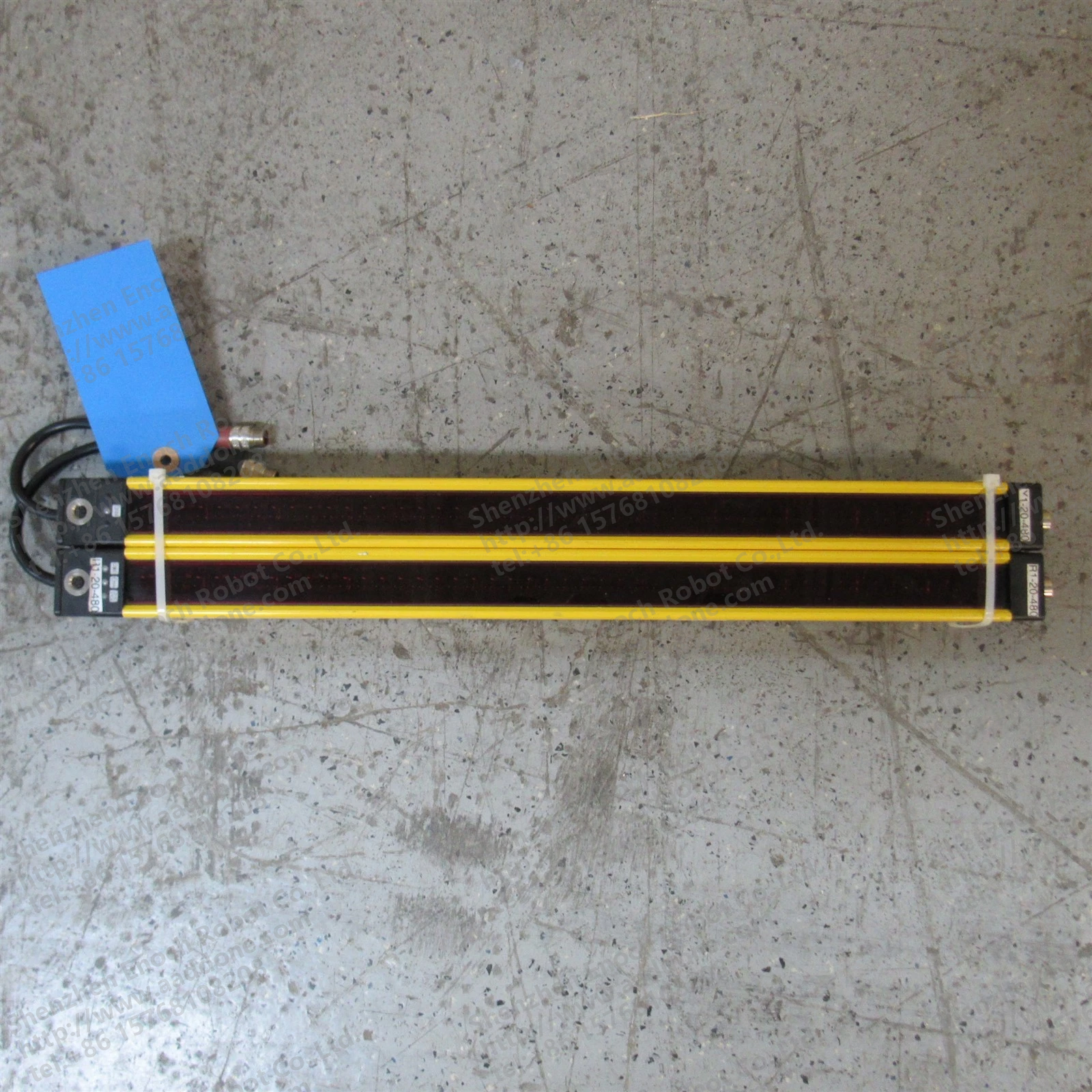

OMRON STI LIGHT CURTAIN MINISAFE SET 480MM MS4800A-30-0480-R MS4800A-30-0480-X

The OMRON STI Light Curtain MiniSafe Set MS4800A-30-0480-R and MS4800A-30-0480-X is a high-performance safety light curtain designed for industrial automation and motion control applications. This set includes an advanced receiver and transmitter, providing reliable object detection and ensuring operator safety in hazardous environments.

Product Features:

• Compact and robust design with a yellow housing for high visibility
• Advanced receiver and transmitter for precise object detection
• IP65 rating for protection against dust and water ingress
• Certified for electrical shock and fire hazards (CSA and UL listed)
• Wide operating temperature range (-10°C to 55°C) for versatile use
• ESPE Type 4 compliance for detecting small objects (30mm, 50mm, 70mm)
• Input voltage: 24VDC (+/-20%) with a current of 285mA
• Range: 0.3m to 20m for flexible installation
• Excellent angular accuracy (±2.5°) for reliable performance

Specifications:

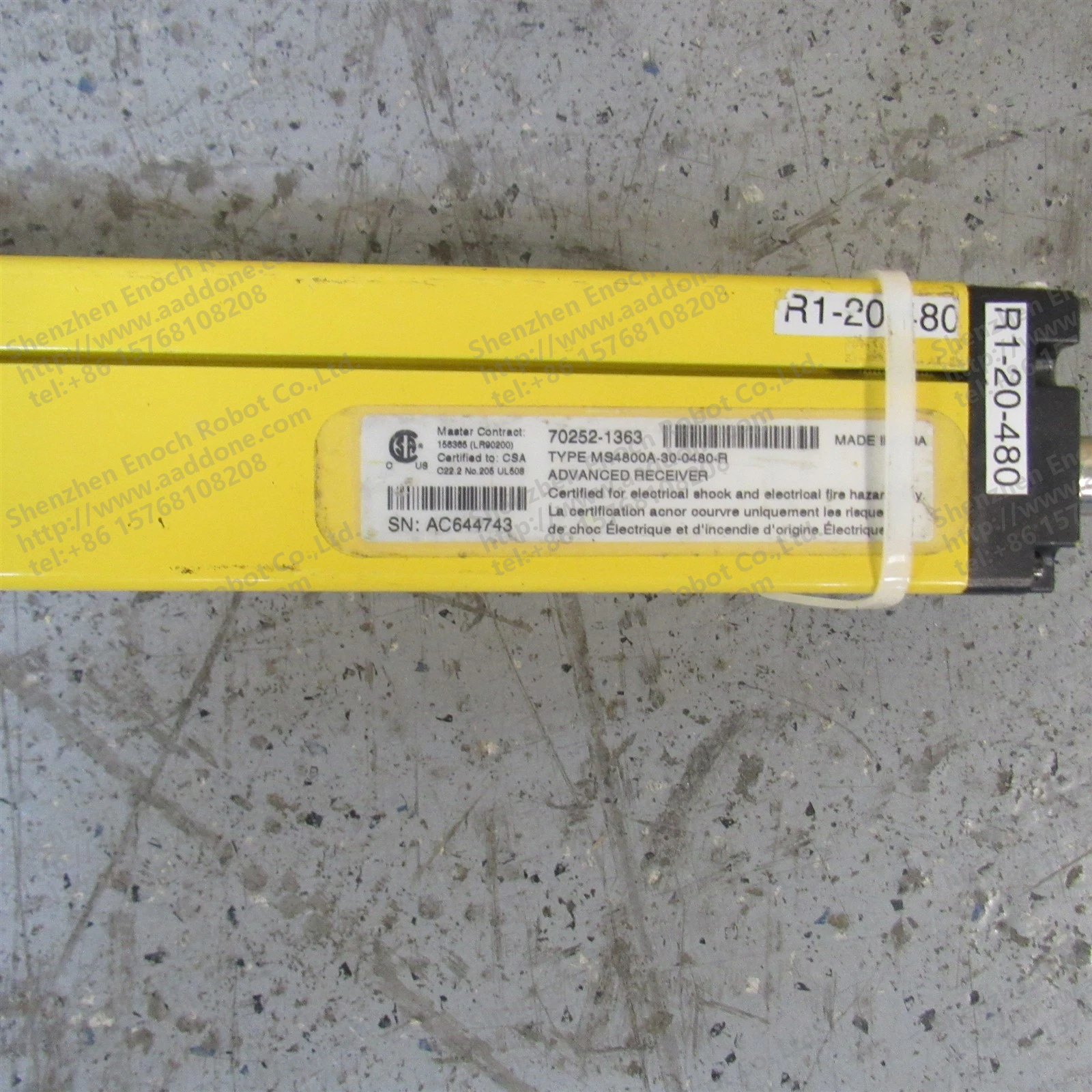

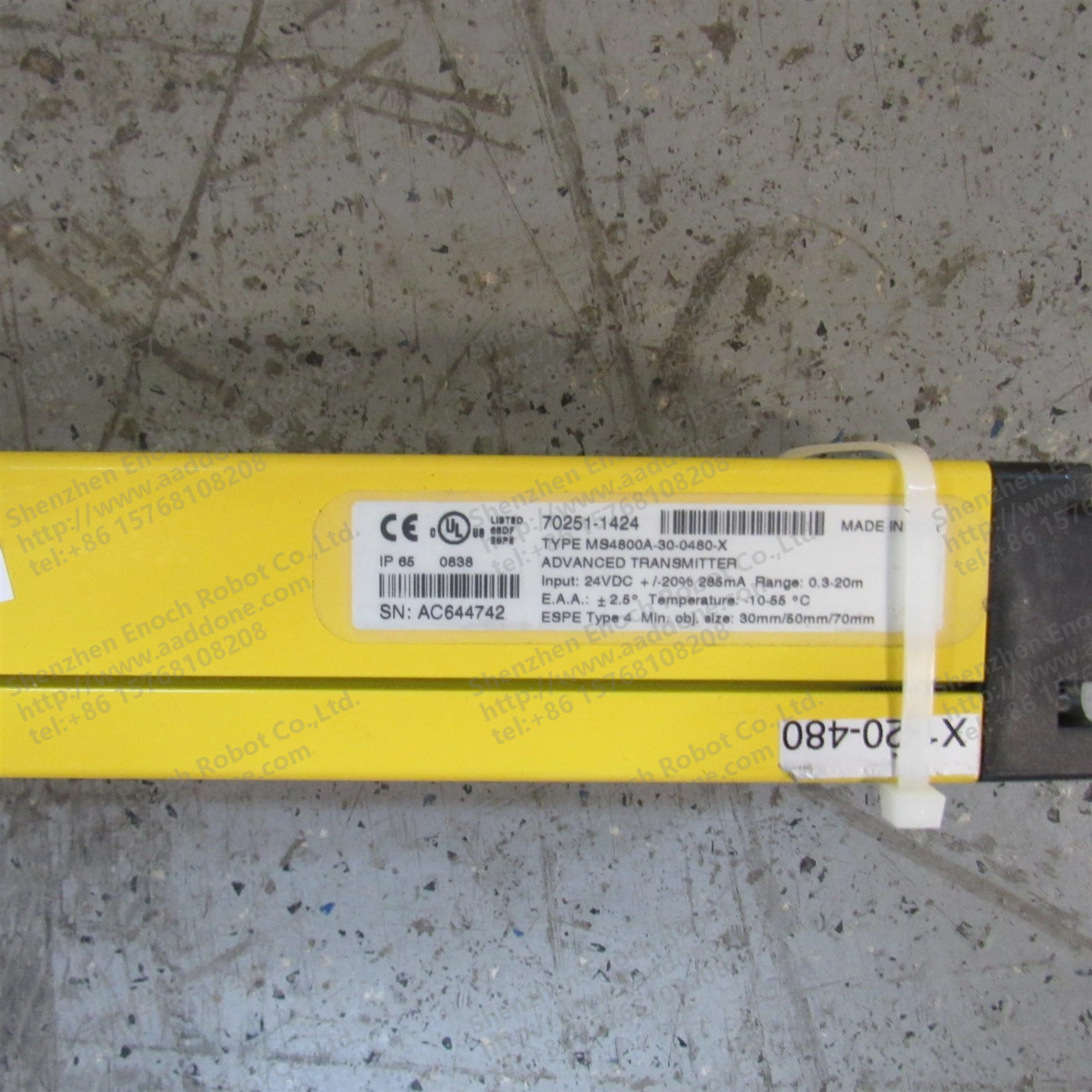

• Model: MS4800A-30-0480-R (Receiver), MS4800A-30-0480-X (Transmitter)
• Length: 480mm
• Input Voltage: 24VDC (+/-20%)
• Current: 285mA
• Operating Temperature: -10°C to 55°C
• Angular Accuracy: ±2.5°
• Protection Rating: IP65
• Compliance: CSA, UL, CE
• Object Detection Range: 0.3m to 20m
• Minimum Object Size: 30mm, 50mm, 70mm

Applications:

• Industrial automation systems
• Motion control applications
• Machine guarding and safety systems
• Assembly lines and robotic operations
• Material handling and packaging equipment
• Any environment requiring reliable object detection and safety

Benefits:

• Enhanced safety for operators and machinery
• High reliability and durability for long-term use
• Easy installation and integration into existing systems
• Comprehensive protection against electrical hazards
• Accurate detection of small objects for improved efficiency
• Wide operating temperature range for use in various conditions
• Compliant with international safety standards for peace of mind
