Product Description

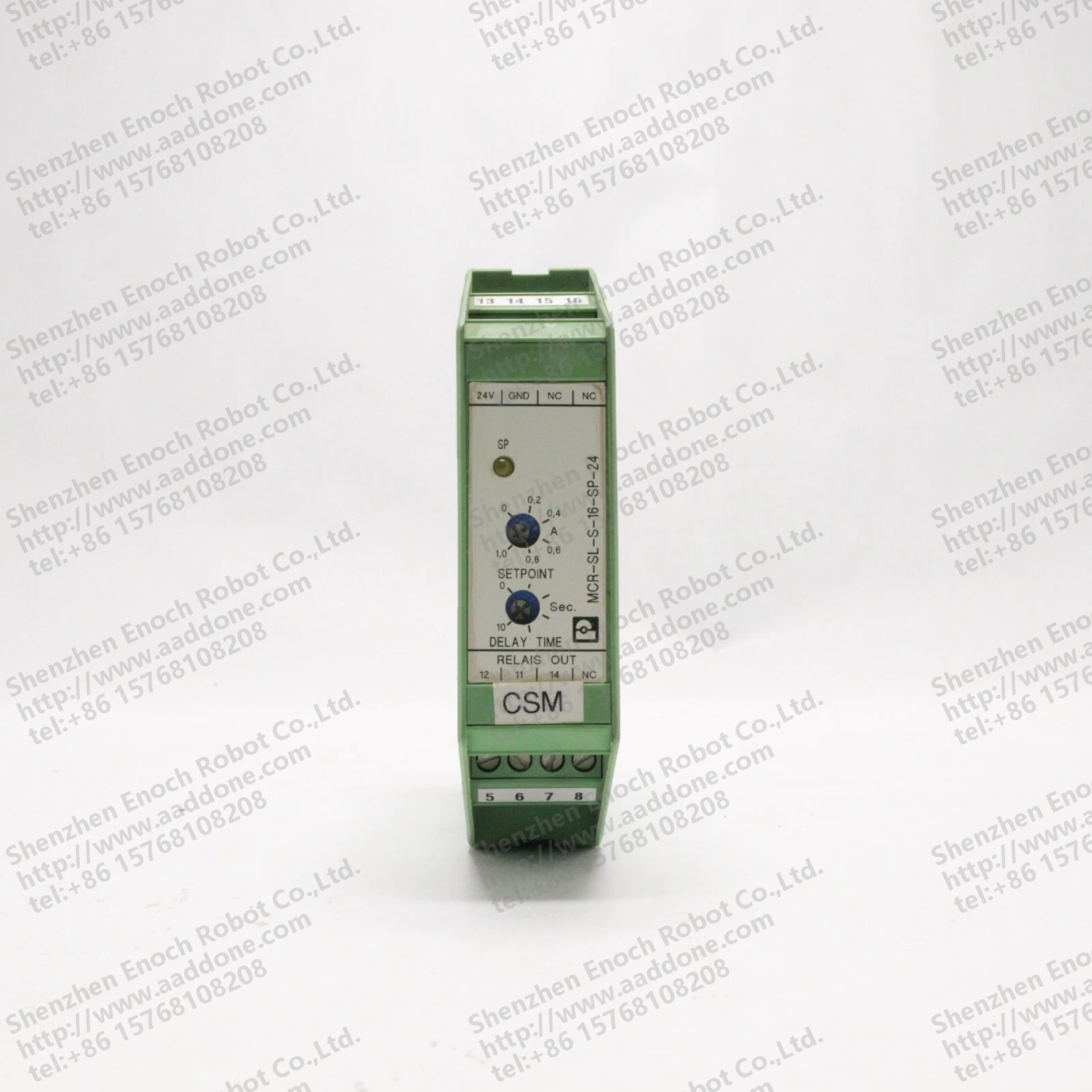

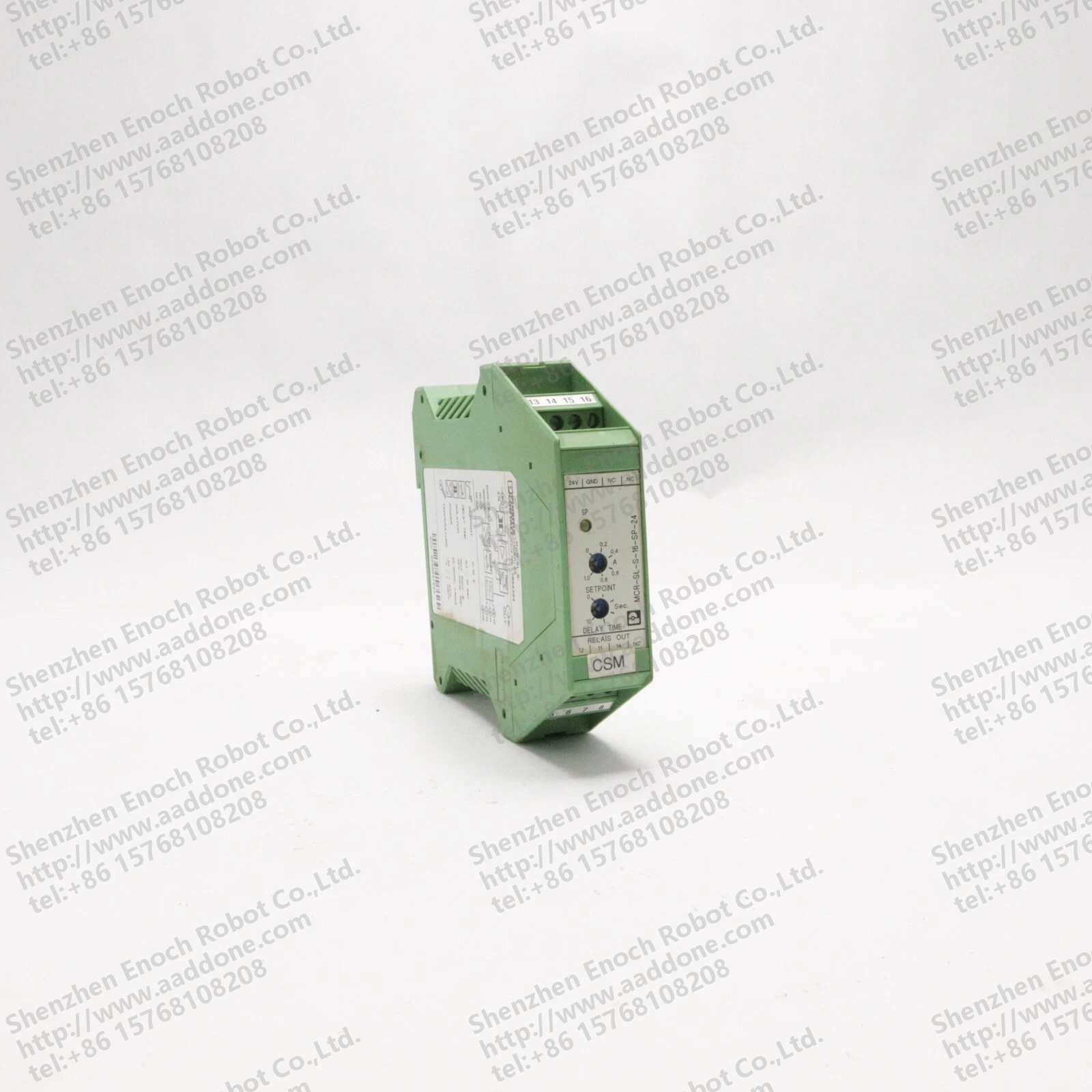

Phoenix Contact MCR-SL-S-16-SP-24 2864464 Relay Output Module is a robust and reliable component designed for industrial automation and control systems. This module is ideal for applications requiring precise timing and control of relay outputs in PLC-based systems.
Product Features:
- Relay Output:** Provides 16 SP (Single Pole) relay outputs with a maximum current capacity of 16 A per channel.
- Adjustable Delay Time:** Offers a delay time adjustment range from 0.1 to 10 seconds, allowing for customized timing control.
- Setpoint Adjustment:** Features a setpoint adjustment dial for precise control over the output parameters.
- Compact Design:** The module has a compact and rugged design, making it suitable for installation in tight spaces within industrial environments.
- Wide Operating Temperature Range:** Operates reliably in temperatures ranging from -20°C to +65°C (-4°F to +149°F).
- Isolation:** Provides maximum isolation voltage of 300V AC and 4kV DC, ensuring safe operation in high-voltage environments.
- Power Supply:** Requires a power supply of 20-30V DC with a current draw of less than 30mA.
- Terminal Connections:** Equipped with clearly labeled terminal connections for easy wiring and maintenance.

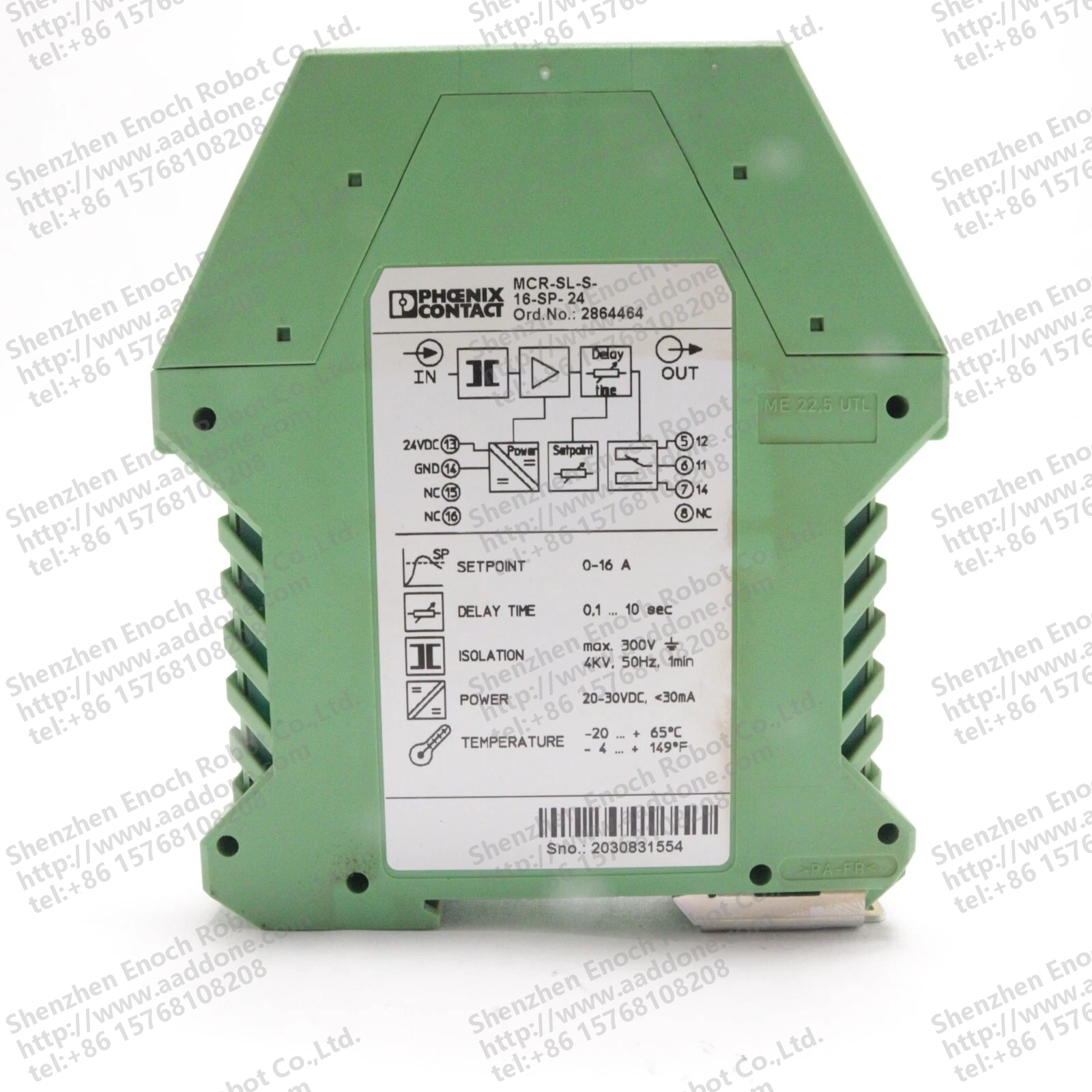

Specifications:
- Model Number:** MCR-SL-S-16-SP-24
- Order Number:** 2864464
- Number of Outputs:** 16 SP (Single Pole)
- Maximum Current per Channel:** 16 A
- Delay Time Range:** 0.1 to 10 seconds
- Operating Voltage:** 20-30V DC
- Isolation Voltage:** 300V AC / 4kV DC
- Temperature Range:** -20°C to +65°C (-4°F to +149°F)
- Enclosure Rating:** IP20 (suitable for indoor use)
Applications:
- Industrial Automation:** Ideal for use in automated manufacturing processes where precise timing and control of relay outputs are required.
- Process Control:** Suitable for applications in process control systems, such as temperature, pressure, and flow control.
- Building Automation:** Can be used in building automation systems for controlling lighting, HVAC, and other electrical systems.
- Material Handling:** Effective in material handling systems for controlling conveyor belts, robotic arms, and other automated equipment.
- Energy Management:** Useful in energy management systems for monitoring and controlling power distribution in industrial facilities.
Benefits:
- Enhanced Precision:** The adjustable delay time and setpoint features allow for precise control over relay outputs, improving the accuracy of automated processes.
- Reliability:** Built to withstand harsh industrial environments, ensuring long-term reliability and performance.
- Easy Integration:** The compact design and clear labeling make it easy to integrate into existing PLC systems without extensive modifications.
- Cost-Effective:** As a pre-owned unit, it offers a cost-effective solution for businesses looking to upgrade their automation systems without incurring the expense of new equipment.
- Safe Operation:** The high isolation voltage ensures safe operation in environments with high electrical interference or voltage fluctuations.
