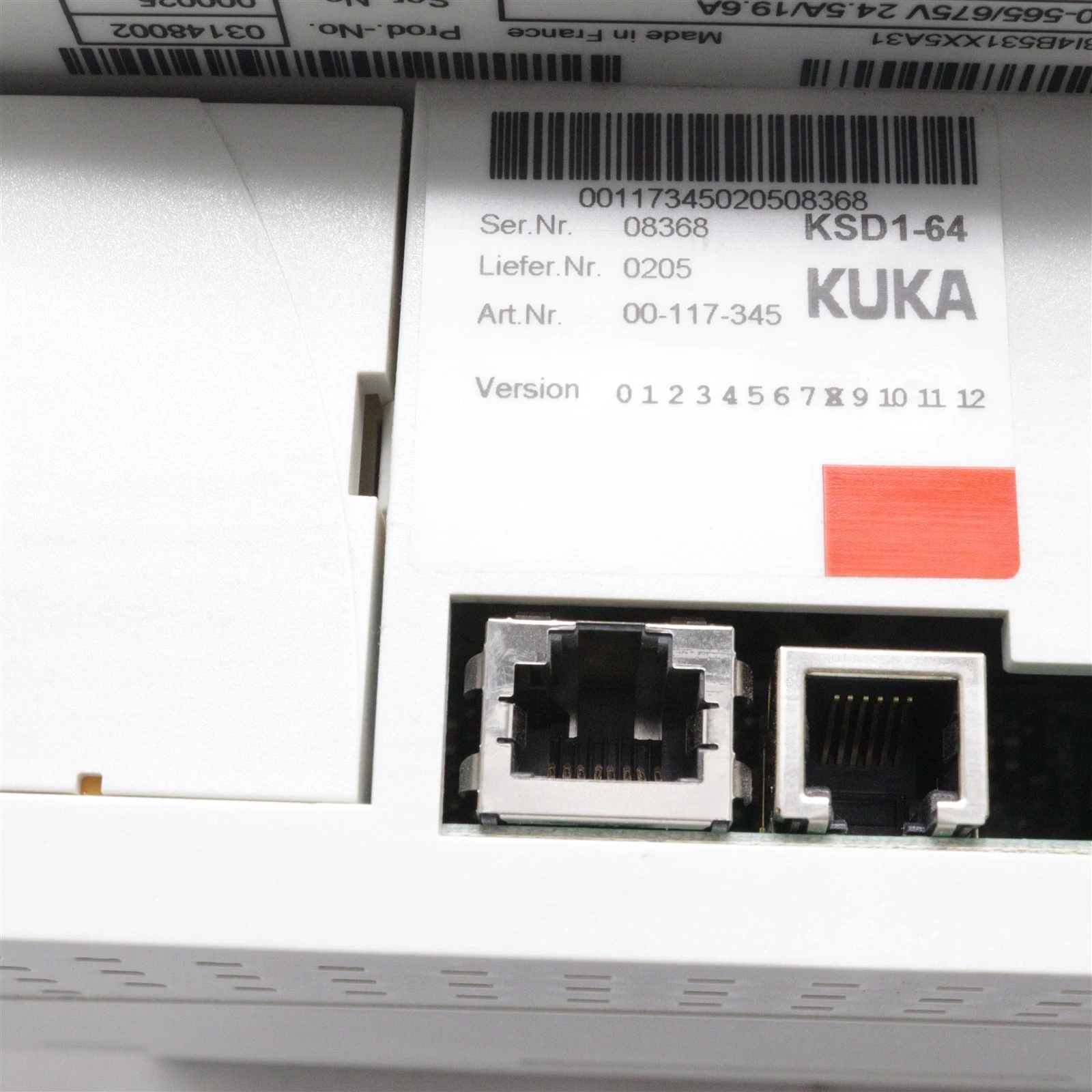

KUKA SERVO DRIVE 00-117-345 KSD1-64

The KUKA SERVO DRIVE 00-117-345 KSD1-64 is a high-performance industrial servo drive designed for precision motion control in demanding automation applications. This robust unit, manufactured by KUKA in France, features advanced technology to deliver reliable and efficient operation in various industrial environments.

Product Features:

• Model: KSD1-64
• Part Number: 00-117-345
• Version: 0123456789101112

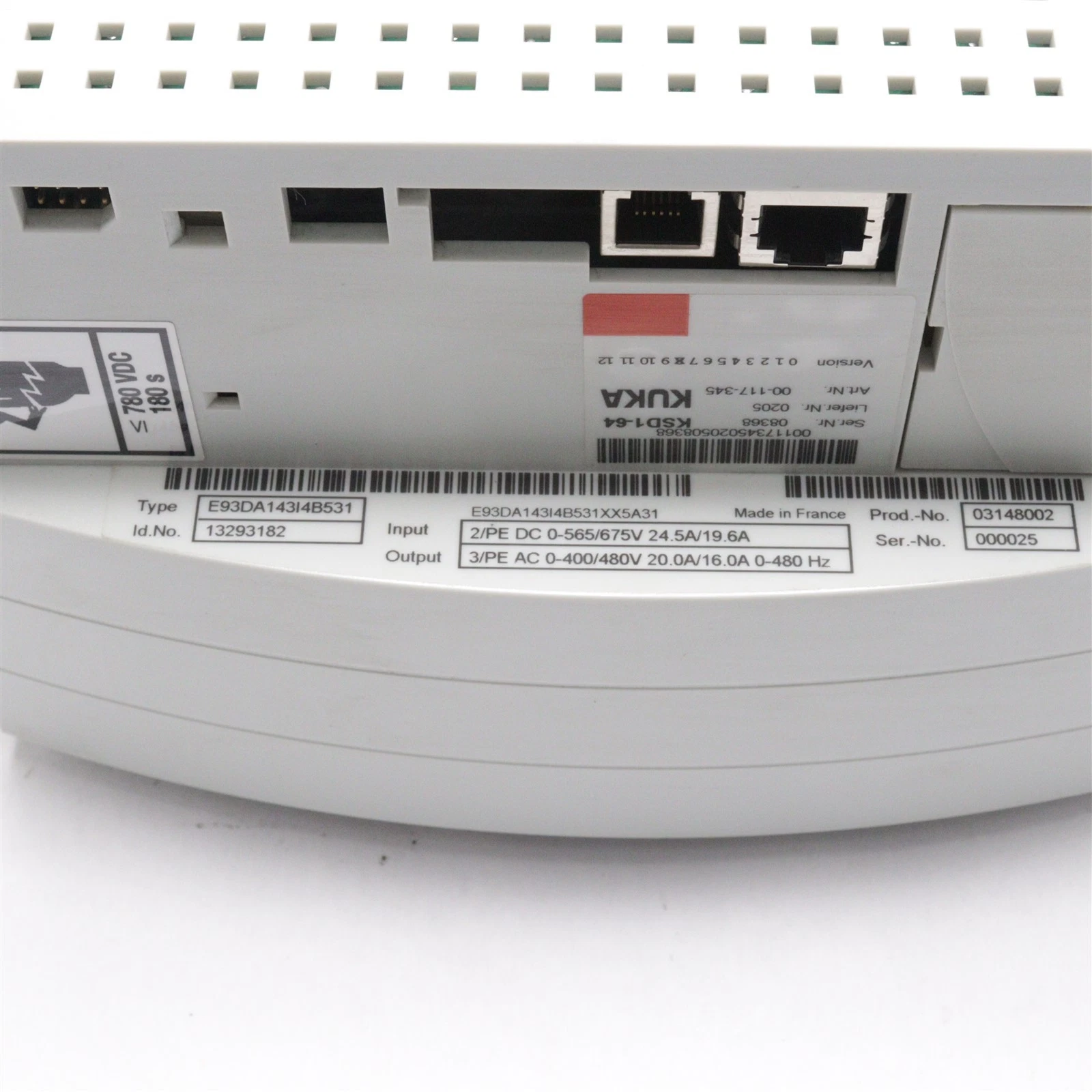

• Input Voltage: 2/PE DC 0-565/675V 24.5A/19.6A
• Output Voltage: 3/PE AC 0-400/480V 20.0A/16.0A 0-480 Hz
• Manufactured in France
• Serial Number: 08368
• Delivery Number: 0205
• Type: E93DA143I4B531
• Id.Number: 13293182
• Compliant with 780 VDC VI 180s safety standards
• Equipped with multiple connectivity ports for seamless integration

Specifications:

• Input Power Range: 0-565/675V DC
• Maximum Input Current: 24.5A/19.6A
• Output Power Range: 0-400/480V AC
• Maximum Output Current: 20.0A/16.0A
• Frequency Range: 0-480 Hz
• Operating Temperature: -10°C to +55°C
• Protection Rating: IP20 (front panel), IP00 (rear)
• Weight: Approximately 2.5 kg

Applications:

• Industrial Robotics
• Automated Assembly Lines
• Material Handling Systems
• CNC Machines
• Packaging Equipment
• Printing Presses
• Textile Machinery
• Medical Device Manufacturing

Benefits:

• High Precision Motion Control
• Enhanced System Efficiency
• Reliable Performance in Harsh Environments
• Easy Integration with Existing Systems
• Energy-Efficient Operation
• Long Service Life with Minimal Maintenance
• Comprehensive Safety Features
• Cost-Effective Solution for Industrial Automation
