PHOENIX CONTACT QUINT-PS-100-240AC24DC20A POWER SUPPLY 2938620

The Phoenix Contact QUINT-PS-100-240AC/24DC/20A Power Supply (Order No. 2938620) is a robust industrial-grade power supply designed for demanding applications in commercial and industrial environments. This unit provides reliable DC power conversion from AC input to a stable 24V DC output at 20A, ensuring consistent performance in critical systems.

Key Features:

• Input Voltage Range: 100-240V AC, compatible with global electrical standards.
• Output Specifications: 24V DC at 20A, adjustable between 22.5V and 28.5V for precise voltage control.
• Durable Aluminum Housing: Provides excellent heat dissipation and protection against harsh industrial conditions.
• Compact DIN Rail Mount Design: Easy installation and space-saving integration into control panels and machinery.
• Status Indicator: LED display confirms proper operation and output stability.
• Wide Operational Voltage Range: Supports 85-264V AC and 90-350V DC for versatile use in various environments.
• High Efficiency & Reliability: Designed for continuous operation in industrial automation, process control, and telecommunications systems.

Specifications:

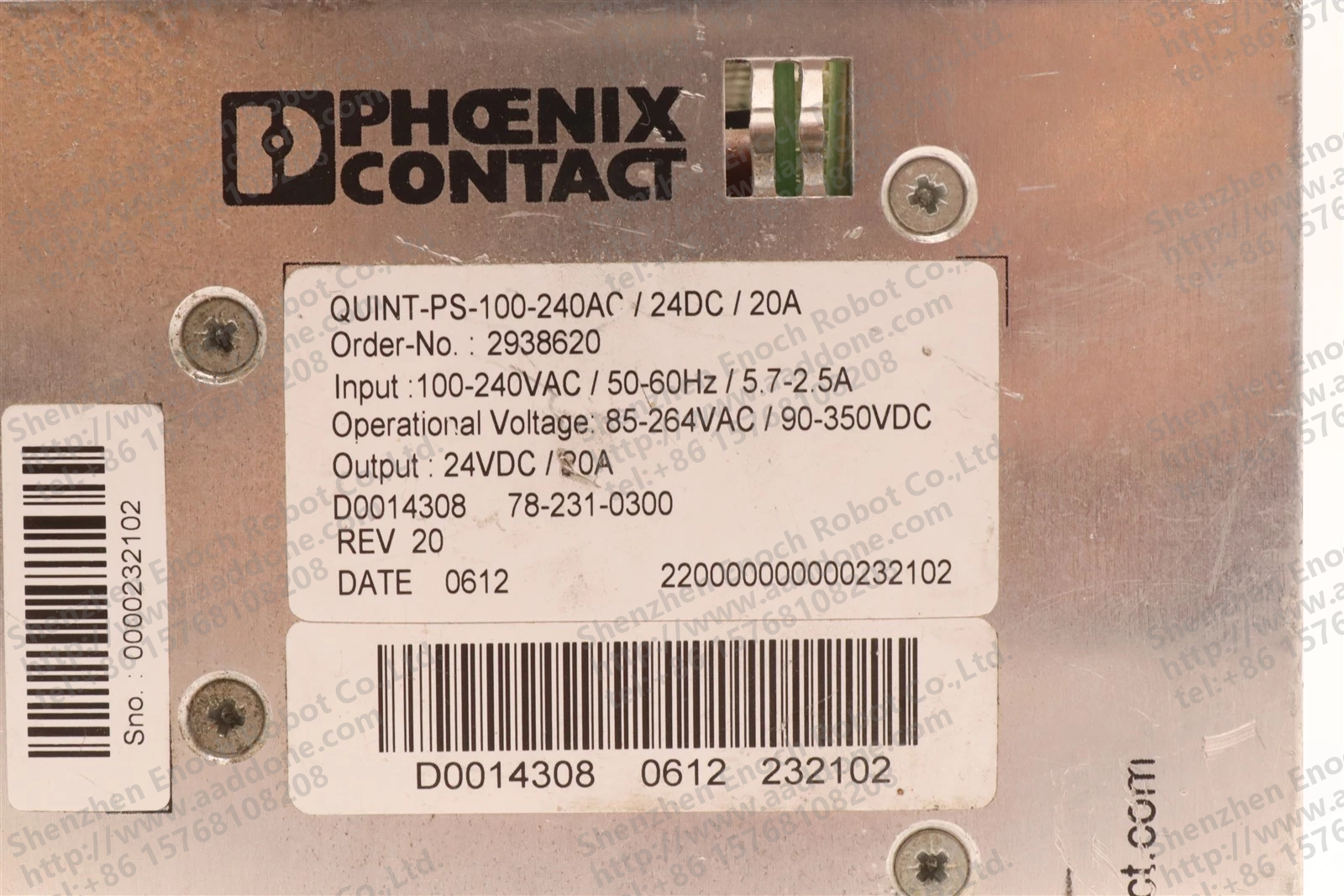

• Model: QUINT-PS-100-240AC/24DC/20A
• Input: 100-240V AC, 50-60Hz, 5.7-2.5A
• Output: 24V DC, 20A (adjustable: 22.5V-28.5V)
• Efficiency: Up to 90% (typical)
• Protection Features: Overload, overvoltage, and short-circuit protection.
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Dimensions: Compact size for easy integration into existing systems.

Applications:

• Industrial Automation Systems
• Process Control Equipment
• Telecommunications Infrastructure
• Building Management Systems
• Medical Devices and Equipment
• Renewable Energy Systems

Benefits:

• Reliability: Built to withstand extreme temperatures and vibrations, ensuring long-term performance.
• Energy Efficiency: Reduces energy consumption and operational costs while maintaining high output.
• Easy Maintenance: Modular design allows for quick replacement and servicing.
• Global Compatibility: Wide input voltage range makes it suitable for use in any country with standard AC power.
• Cost-Effective: High-quality construction at an affordable price point for industrial-grade equipment.
