FANUC AC SERVO MOTOR A06B-0215-B605S000 LONG GEAR

The FANUC AC Servo Motor A06B-0215-B605#S000 LONG GEAR is a high-performance industrial motor designed for precision motion control in demanding automation applications. This robust servo motor combines advanced engineering with reliable performance, making it an ideal choice for modern industrial machinery.

Product Features:

• High Torque Output: Delivers exceptional torque performance with a stall torque of 4 Nm (up to 6.1 Nm under peak conditions) for precise and powerful operation.
• Compact Design: Features a sleek, space-saving form factor that allows easy integration into various industrial systems without compromising on power or efficiency.
• Durable Construction: Built with high-quality materials to withstand harsh industrial environments, ensuring long-term reliability and minimal maintenance.
• Advanced Control Capabilities: Equipped with state-of-the-art servo technology for smooth, accurate, and responsive motion control, enhancing productivity and precision.
• Wide Operating Range: Operates efficiently across a broad range of speeds (up to 4000 min⁻¹) and frequencies (267 Hz), providing versatility for diverse applications.
• Protection Rating: IP65-rated enclosure protects against dust and water ingress, ensuring reliable performance in challenging conditions.
• Efficient Power Consumption: Optimized energy usage with a power factor of 99%, reducing operational costs while maintaining high performance.

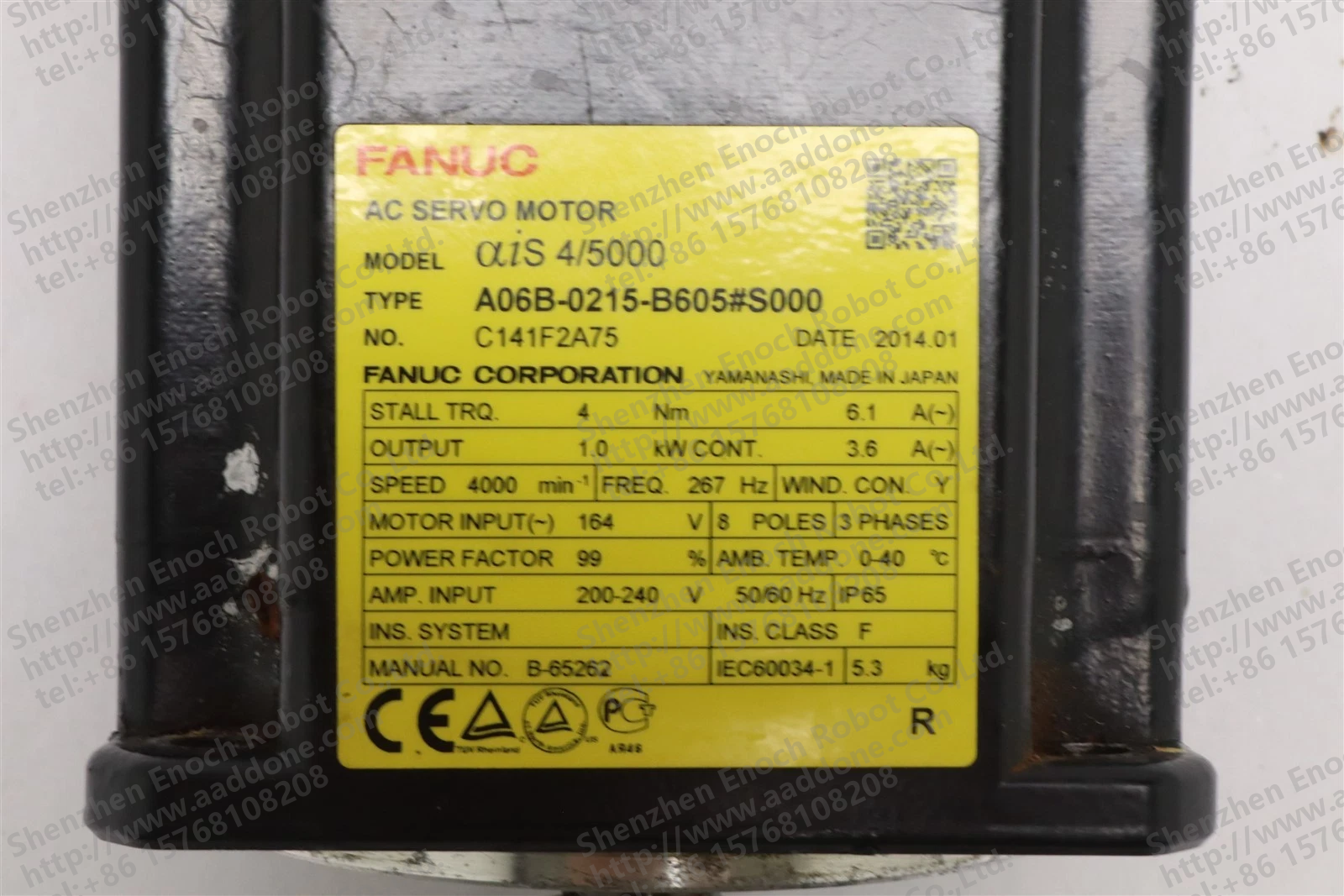

Specifications:

• Model: αiS 4/5000
• Type: A06B-0215-B605#S000
• Output Power: 1.0 kW continuous (3.6 kW peak)
• Speed: Up to 4000 min⁻¹
• Frequency: 267 Hz
• Voltage Input: 164 V AC (8 poles, 3 phases)
• Current Input: 200-240 V AC, 50/60 Hz
• Insulation Class: F
• Weight: 5.3 kg
• Manufactured Date: January 2014
• Country of Origin: Japan

Applications:

• Industrial Automation: Ideal for use in robotic arms, CNC machines, packaging equipment, and assembly lines requiring precise and dynamic motion control.
• Material Handling: Perfect for conveyor systems, automated guided vehicles (AGVs), and lifting mechanisms where accuracy and reliability are critical.
• Medical Devices: Suitable for medical imaging equipment, surgical robots, and diagnostic machines that demand high precision and quiet operation.
• Consumer Electronics Manufacturing: Enhances the performance of automated production lines for electronics, ensuring consistent quality and efficiency.
• Energy Sector: Used in renewable energy systems, such as wind turbine control mechanisms, for reliable and efficient operation.

Benefits:

• Enhanced Productivity: Delivers precise and repeatable motion, reducing downtime and increasing overall system efficiency.
• Cost-Effective Solution: Combines high performance with energy efficiency, lowering operational costs over time.
• Reliability: Built to withstand demanding industrial environments, ensuring long-lasting performance with minimal maintenance.
• Future-Proof Technology: Incorporates cutting-edge servo technology for seamless integration with modern automation systems and future upgrades.
• Global Standards Compliance: Meets international safety and performance standards, including CE certification and IP65 protection rating.
