Product Description
The Allen-Bradley ControlLogix F02 Series A 1756-IB16 is a high-performance DC input module designed for industrial automation and motion control applications. This robust module provides reliable signal processing and connectivity for PLC systems, ensuring seamless integration into complex control environments.
Product Features:
- 16-point DC input capacity with 24VDC operation
- Wide voltage range: 10-31.2VDC
- 10mA current rating per point
- Compact design for easy installation in control panels
- Blue-labeled DC input section for clear identification

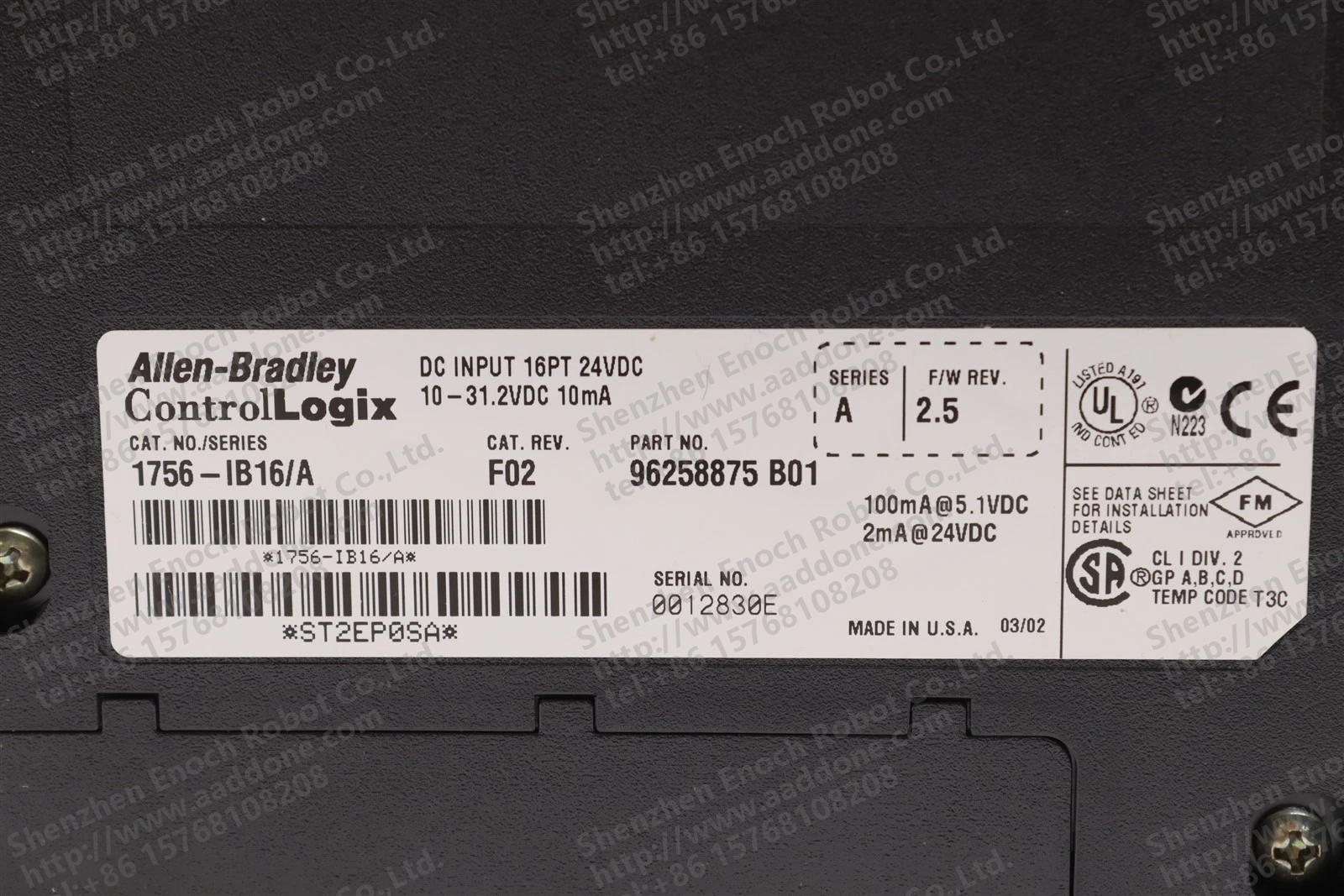

- Comprehensive labeling with part numbers, serial information, and certifications
- Manufactured in the USA with strict quality control standards
Specifications:
- Model Number: 1756-IB16/A
- Series: F02
- Part Number: 96258875 B01
- Operating Voltage: 10-31.2VDC
- Current Rating: 10mA per point
- Input Type: DC
- Enclosure Rating: IP20 (suitable for indoor use)
- Temperature Range: -25°C to +60°C
- Certifications: UL, CE, FM Approved
Applications:
- Industrial automation systems
- Motion control applications
- Process control environments
- Manufacturing and assembly lines
- Material handling systems
- Building automation and HVAC controls
Benefits:
- Enhanced reliability and durability for demanding industrial environments
- Easy integration with existing ControlLogix systems
- Improved signal accuracy and response time
- Reduced downtime through robust construction and quality materials
- Comprehensive documentation and support for quick installation
- Cost-effective solution for expanding PLC input capabilities
Product Gallery
